Product Description

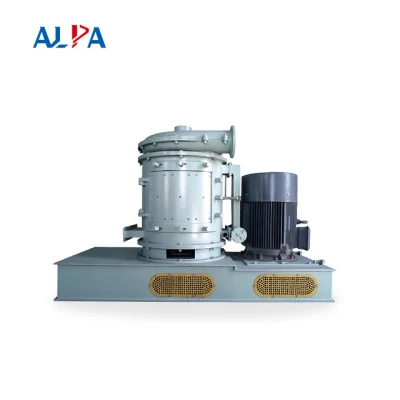

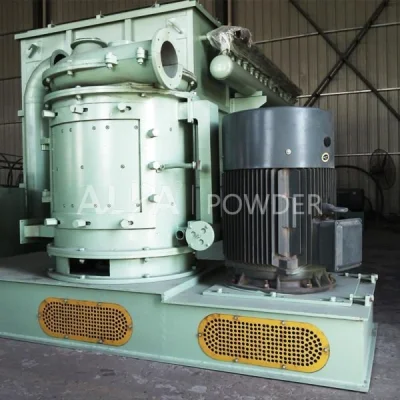

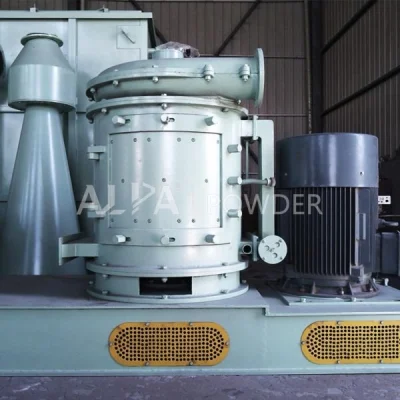

ULM Rotor Mill
FEATURES AND ADVANTAGES
- Available D50:3~45μm
- Suitable for raw materials with Moh's hardness lower than 3, especially suitable for tough materials such as fiber and plastic
- The grinding rotor comprises multi-layer grinding disc and several grinding blades, high grinding efficiency.
- Durable alloy blade, replaceable.
- Distance between the grinding cutter head and the ring gear can be adjusted to adapt to the grinding of different materials
- Compact structure and small occupation. easy to disassemble and clean
- Lower installation power, wide application, high cost-performance.
- Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
- PLC control system, easy operation.
- External cooling air can be used to achieve low temperature grinding, especial in heat sensitive materials.
- Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time.
- Explosion-proof design can be selected to meet the requirements of ultra-fine grinding processing of flammable and explosive oxide materials.

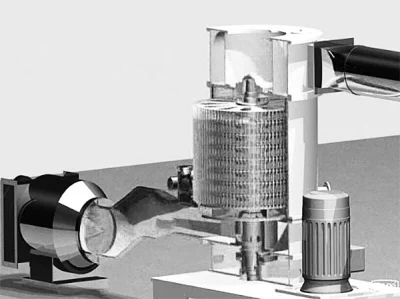

WORKING PRINCIPLE
The material is uniformly fed into the grinding zone by feeding system and strongly impacted by the high-speed rotating grinding disc.

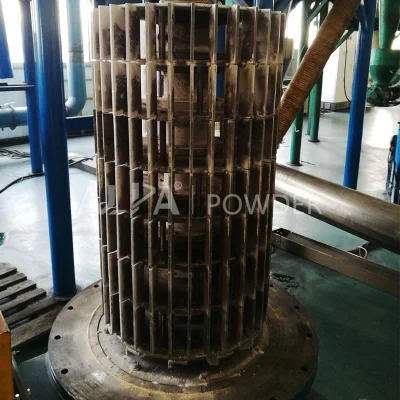

The grinding rotor is composed of a multi-layer grinding disc and a plurality of grinding blades, the material is subjected
to various grinding forces such as shearing, collision, friction etc and finished grinding.
The qualified materials are collected into the collection zone with the ascending airflow, the coarse materials are returned to the grinding zone for secondary grinding.
Technical Parameters
| Parameter / Model | 400 | 600 | 800 | 1000 | 1200 | 1500 |
|---|---|---|---|---|---|---|
| Diameter of grinding disc (mm) | 400 | 540 | 725 | 950 | 1150 | 1450 |
| Rotating speed of grinding disc (rpm) | 4200 | 3050 | 2100 | 1850 | 1480 | 1250 |
| Linear speed of grinding disc (m/s) | 87.5 | 86.7 | 79.8 | 92.0 | 89.1 | 94.9 |
| Grinding motor power (kW) | 30 | 45 | 75~90 | 110 | 132~160 | 200~250 |
| Air volume (m³/h)(max) | 3000 | 4500 | 6000 | 7500 | 9000 | 12000 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.

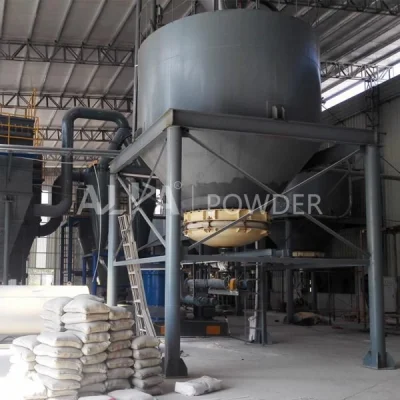

Related Engineering Cases
ULTRA-FINE POWDER SOLUTIONS
ALPA is a world-renowned supplier of powder processing systems, committed to traditional powder industry development. For 20 years, focused on the research and development of dry grinding, classification, powder shaping, surface modification and provided systematic solutions. We provide customized and international certified products: Jet Mill, Air Classifying Mill, Classifier, Ball Mill and Classifying production line, powder surface modification production line, etc.
Good After-sales Service
Our after-sales service team is always ready to diagnose and solve problems for you
Impact mill
High efficiency, has two milling effects of impact and grind, large milling ratio, simple structure, stable operation, suitable for milling medium-soft hard materials.
Jet mill
Uses the high speed turbulence airflow generated by compressed air or superheated steam as milling power. Impact extrusion, friction and shear between the particles or between the particles and the fixed plate occur, so as to achieve milling.
Ball mill + Classifying
The ball mill and classification production line refers to a complete set of milling system composed of Ball mill, cyclone, dust collector and fan.
WHO CHOOSE US
Certification Authority
ALPA is one of the earliest companies in the industry that passed the ISO9001 quality management system authority certification. At the same time, ALPA has free import and export rights, and has obtained CE certification for export to the European Union and GOST certification for export to Russia. The machine design used in the medical industry fully meets the requirements of GMP certification.
Q: What service do you supply?
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients' project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
