Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization

Product Name: Customized Truck Mounted Water Well Drilling Rig WH300 We are a factory specializing in customized truck-mounted water well drilling rigs with 300m depth and 25bar air compressor. Personalize your rig now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Product Description
  • Other Product
  • Company Profile
  • Foreign customer
  • FAQ
Overview

Basic Info.

Drill Hole Depth
>200m
Bit Type
Diamond Bit
Drilling Way
Impactor
Type
Four-Wheel trailer
One-Time Advance Length
3.3m/6.6m
Lift Force
18t
Overall Weight
13t
Drilling Method
Compressor Mud Pump
Main Product
Water Well Drilling Rig/Secondhand Water Drilling
Main Product2
Drill Truck/Core Drilling Rig/Digging to Drilling
Other Product
Photovoltaic Drilling Rig/Air Compressor/Accessory
Accessory
Drilling Tool/DTH Drill/Disassembly Platform
Transport Package
Nude
Specification
12500*2500*3500mm
Trademark
WH
Origin
Shandong
Production Capacity
30 Sets/Month

Product Description


Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization

Product Parameters

Drilling diameter(mm) 140-325
drill depth (m) 300
drill pipe diameter(mm) φ76,φ89,φ102
Drill pipe length (m) 1.5   2   3
One-time advance length (mm) 3300
propulsive force (T) 8
lift force  (T) 18
Working air pressure (Mpa) 1.7-3.
Gas consumption (m³/min) 17-
Host power (kw) 85
Walking speed  (km/h) 100
rotation speed  (rpm) 45-60
Slewing torque (N.m) 5700-7500
automobile chassis SINOTRUK
automobile engine Cummins 260 HP
Driving form 6*4
Steering wheel left rudder
Overall dimensions 100600×2500×3550mm
Overall weight 13T

Product Description

Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization

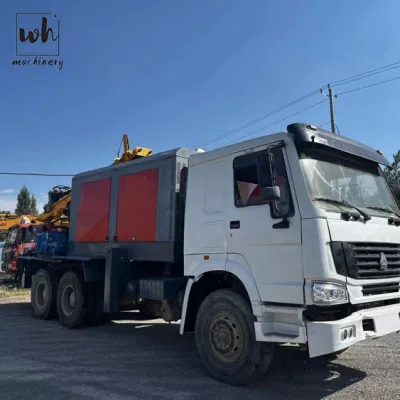

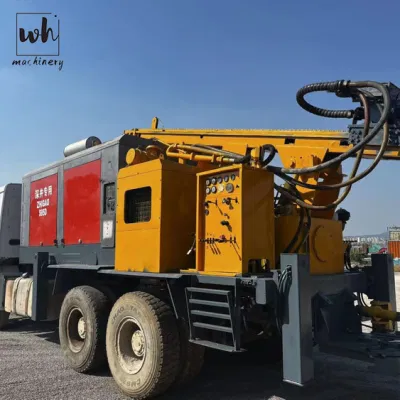

The WH-300 car mounted pneumatic water well drilling rig is a type of pneumatic water well drilling rig developed by our company, mainly used for drilling operations in rocky areas such as hills and mountainous areas. It has the advantages of large drilling diameter, deep drilling, fast footage, flexible movement, and high efficiency. It is now widely used in industrial drilling, geothermal drilling, environmental monitoring drilling, and other occasions.
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
1. Adopting the principle of pneumatic impact, the drilling footage is fast and the efficiency is high.


2. Adopting a car chassis, the layout is reasonable and compact, and the operation is simple.

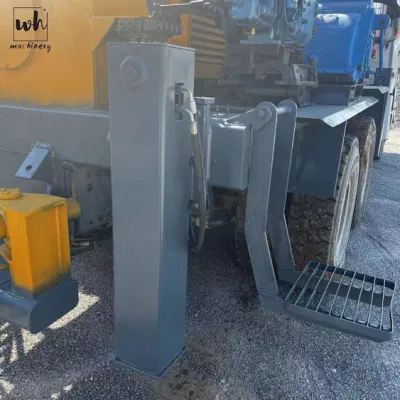

3. Equipped with hydraulic support legs for leveling the drilling rig and maintaining stability of the body.

4. The main engine is equipped with a high-power diesel engine, which has strong power and effectively meets work needs.

5. Equipped with a hydraulic landing composite drilling arm, it saves space and provides strong lifting force for deep hole operations.

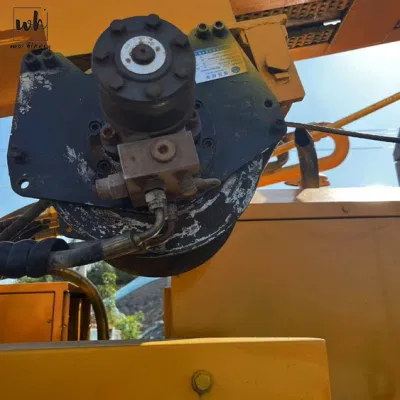

6. The drilling rig is equipped with a hydraulic feed system, dual hydraulic motor power head, chain transmission, and hydraulic cylinder propulsion, with high torque and high drilling efficiency.


Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization

Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization

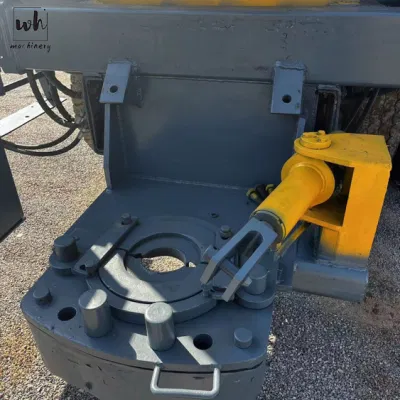

7. Equipped with a quick rod unloader, it can quickly remove drill pipes, saving time and effort.

8. Centralized operation handle, reasonable layout, safe and feasible.

9. Exquisite workmanship, durable, and low maintenance costs in the later stages.

10.This model can be driven not only by an air compressor, but also by a mud pump for operation.

Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization


Customization can also be accepted, such as using a larger air compressor, using a larger mud pump, or the tower stroke of the drilling rig can also be 6.6m. Accept various customizations.

The specific parameters of the truck are mainly based on the actual parameters of each chassis for reference




Feel free to send a direct message or email for detailed discussion. Available 24/7.

Other Product

Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization

Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization


Company Profile

Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization

    Wanhai Machinery Co., Ltd., situated in Linyi, Shandong, is a reputable manufacturer specializing in the design, development, production, and distribution of top-notch drilling machinery and equipment. Our extensive product range encompasses a variety of drilling rigs, including oil and gas drilling rigs, water well drilling rigs, core drilling rigs, and more, catering to diverse drilling tasks and scenarios. Our unwavering commitment lies in delivering exceptional products and services that are tailored to meet the specific requirements of each customer. We take pride in our dedicated after-sales team, who promptly and effectively address any concerns or issues that may arise, ensuring utmost customer satisfaction.
    We eagerly anticipate establishing enduring, reliable, and mutually beneficial relationships with every customer we serve. Should you express interest in our products, please do not hesitate to reach out to us. We assure you that our team will provide you with the necessary information and assistance to make an informed decision.

Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization

   At Wanhai Machinery Co., Ltd., we prioritize quality and innovation in all aspects of our operations. Our state-of-the-art manufacturing facilities, coupled with our team of experienced professionals, enable us to consistently deliver drilling machinery and equipment of the highest standards. We stay abreast of the latest technological advancements in the industry, ensuring that our products are at the forefront of efficiency and performance. Furthermore, we understand that each drilling project comes with its unique set of challenges and requirements. Therefore, we offer customized solutions to cater to the specific needs of our customers.



Foreign customer

Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization
Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization



Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization Truck Mounted Water Well Drilling Rig 300m Wh300 Air Compressor 25bar Truck 6*4 Wheel Personal Customization


FAQ

1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.

2.How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.


3.How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 25-30 days.


4. What's your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
