Product Description
High measuring accuracy and efficiency
Automatic measuring run
Automatic indexing
Integral slot counter as option
Over slung or under slung belt drive optional
Ergonomic workplace design for standing or seated operator
Production Description:
Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application
Range of Application:

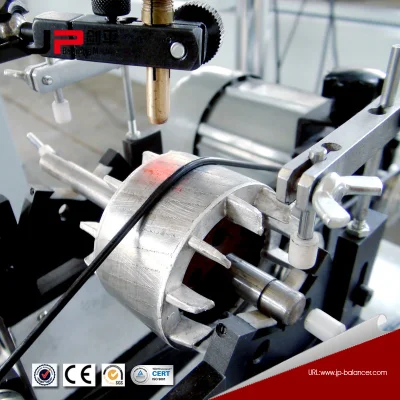

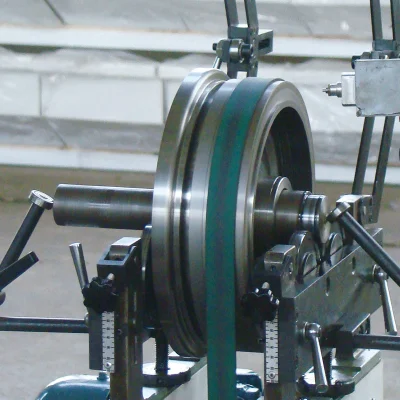

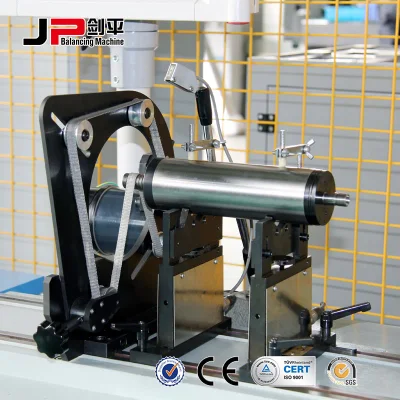

Spinning Rotor Horizontal Balancing Machine (PHQ-1.6) is also widely used in balancing rotatable bodies, such as kinds of micro-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency
Special Features:
The measuring unit employs JP-380 Micro- computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor. The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support modes available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability.
Factory Outlook:
Certificated
Production Parameters:
| Technical data at a glance | PHQ-1.6/5 |
| Max Mass of Workpiece (kg) | 1.6/5 |
| Max Diameter of Workpiece (mm) | 260 |
| Distance between Two Support Bearings (mm) | 15-400 |
| Journal Diameter Scope of Workpiece (mm) | 3~40 |
| Diameter Scope of Driving Belt (mm) | 20~85 |
| Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) | 185,335,390,700 Stepless speed regulation |
| Motor Power (kw) | 0.15DC Stepless speed regulation |
| Min Achievable Residual Unbalance Amount (emar) | ≤ 0.3g. mm/kg |
