Silent Type Diesel Generator China Supplier 20kw-500kw 25kVA-625kVA Cummins Power Generator Diesel Generator Manufacturer

Get reliable and high-quality Silent Type Diesel Generators from our China factory. We are a leading supplier of Cummins Power Generators, ranging from 20kw-500kw.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
WD-100
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
Speed
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Low Noise Automation Type
Excitation Mode
AC Rotating Exciter
Diesel Engine
Ricardo (Weifang)
Alternator
Marathon/Stamford/Leroy-Somer/Wanding
Certificate
SGS/TUV/CE/ISO
Fuel Tank
Base Fuel Tank/External Fuel Tank
Color
Green/Customizable
Controller
Smartgen/Fortrust/Deepsea
Silent Box
Customizable
Description
Ideal Cheap Back-up Power
Transport Package
Cling Film/Wooden Box/Galvanized Steel Box
Trademark
Wanding Power/OEM
Origin
China
HS Code
8502120000
Production Capacity
3000set/Year

Packaging & Delivery

Package Size
3300.00cm * 1700.00cm * 2000.00cm
Package Gross Weight
4000.000kg

Product Description


Product Description



☆The cylinder block and cylinder head adopt integrated design, low failure rate, excellent lubrication system, low parasitic power, durable and excellent reputation.



☆Overall modular design, integrated in blocks, easy maintenance



☆Parts can be disassembled, high reusability; compact structure Six cylinders and one cover overall design, more compact structure, easy to arrange and maintenance



Cummins advanced PT fuel system with unique over-speed protection, low-pressure fuel supply, few pipelines and low failure rate



☆Advanced Cummins exhaust gas turbocharger to ensure sufficient engine air intake, full combustion and high efficiency.



☆Pressure type impulse exhaust pipe, making full use of waste energy and improving engine low load efficiency

Silent Type Diesel Generator China Supplier 20kw-500kw 25kVA-625kVA Cummins Power Generator Diesel Generator Manufacturer
Cummins ENGINE
Excellent overall configuration, with lighter weight and more compact structure.

Integral all-steel piston design, high-strength material cylinder block and crankshaft,harsh parts test verification, higher engine strength.

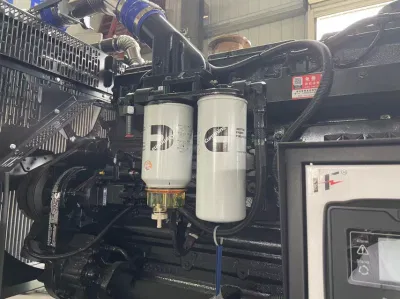

Three-stage fuel filter ensures a balanced level of particle dispersion, protecting key fuel system components and maximizing engine life.

The electronic control system can switch the working mode intelligently according to the environment and operating conditions

Excellent quality, low fuel consumption, low noise, high output power and reliable performance.
CCEC CUMMINS series(T3)
CCEC
CUMMINS
 series(T3)
Unit power
KW/KVA
Diesel model Diesel power
prime/stand-by
Number of cylinder Minimum Fuel Extinction
Rate g/(kW.h)
total piston displacement(L) Weight (kg) Unit Dimensions (mm)
WD-220 220/275 QSNT-G6 243/265 6 200 14 2590 3000*1200*1760
WD-250 250/312.5 QSNT-G7 261/291 6 200 14 2632 3000*1200*1760
WD-275 275/343.75 QSNT-G1 291/325 6 200 14 2682 3000*1200*1760
WD-300 300/375 QSNT-G2 321/358 6 200 14 2779 3000*1200*1760
WD-350 350/437.5 QSM-G3 358/392 6 200 14 3000 3200*1300*1810
WD-400 400/500 QSNT-G4X 448 6 200 18.9 3745 3240*1330*2000
WD-440 440/550 QSK19-G16 445/493 6 200 18.9 4086 3400*1250*2000
WD-450 450/562.5 QSK19-G13 451/501 6 200 18.9 4086 3400*1250*2000
WD-500 500/625 QSK19-G12 503/565 6 200 18.9 4086 3400*1250*2000
WD-550 550/687.5 QSK19-G18 564/624 6 200 18.9 5200 4300*1550*2100
WD-570 570/712.5 QSK19-G4 575/634 6 200 18.9 5200 4300*1550*2100
WD-600 600/750 QSK19-G11 606/667 6 200 18.9 5200 4300*1550*2100
WD-660 660/825 QSK38-G8 657/730 12 200 37.8 7000 4400*1850*2460
WD-700 700/875 QSK38-G7 705/783 12 200 37.8 7500 4510*1850*2460
WD-800 800/1000 QSK38-G6 791/878 12 200 37.8 7600 4650*1850*2460
WD-880 880/1100 QSK38-G1 876/970 12 200 37.8 7800 4800*1850*2330
WD-1000 1000/1250 QSK38-G5 1107/1224 12 200 37.8 9800 5100*2450*2300
WD-1100 1100/1375 QSK38-G12 1134/1254 12 200 37.8 9800 5100*2450*2300
WD-1200 1200/1500 QSK38-G19 1183/1333 12 200 37.8 9800 5100*2450*2300
WD-1300 1300/1625 QSK38-G14 1346/1489 12 200 37.8 11000 5300*2450*2300
WD-1400 1400/1750 QSK38-G15 1399/1548 12 200 37.8 11000 5300*2450*2300
Technical parameters


Silent Type Diesel Generator China Supplier 20kw-500kw 25kVA-625kVA Cummins Power Generator Diesel Generator Manufacturer

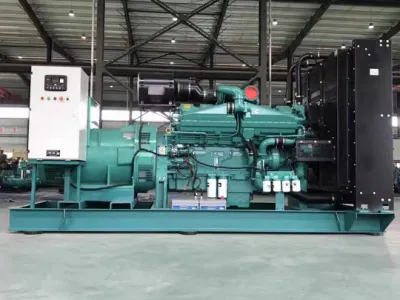

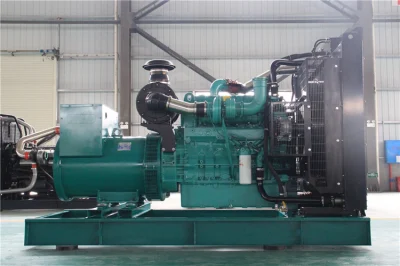

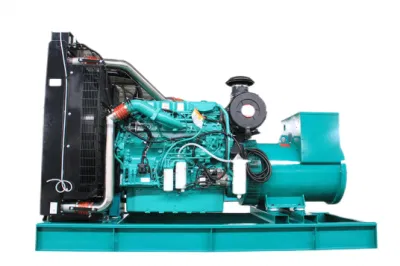

Detailed Pictures
Silent Type Diesel Generator China Supplier 20kw-500kw 25kVA-625kVA Cummins Power Generator Diesel Generator Manufacturer



Silent Type Diesel Generator China Supplier 20kw-500kw 25kVA-625kVA Cummins Power Generator Diesel Generator Manufacturer
Silent Type Diesel Generator China Supplier 20kw-500kw 25kVA-625kVA Cummins Power Generator Diesel Generator Manufacturer

Silent Type Diesel Generator China Supplier 20kw-500kw 25kVA-625kVA Cummins Power Generator Diesel Generator Manufacturer
Silent Type Diesel Generator China Supplier 20kw-500kw 25kVA-625kVA Cummins Power Generator Diesel Generator Manufacturer
Silent Type Diesel Generator China Supplier 20kw-500kw 25kVA-625kVA Cummins Power Generator Diesel Generator Manufacturer

Silent Type Diesel Generator China Supplier 20kw-500kw 25kVA-625kVA Cummins Power Generator Diesel Generator Manufacturer

Silent Type Advantage:



   Easy to operate

The control system of the generator set adopts advanced control module, which can be operated directly through the control panel or remote control device,

making the operation simple and convenient. In addition, the control system has automatic alarm and shutdown protection function,

which will automatically shut down the machine when it fails to protect the machine.



   Advanced waterproof design

The control and maintenance doors of the unit adopt a photo frame rainproof and dustproof design, which can effectively prevent the entry of rainwater and dust.





   Superior intake and exhaust system

The design of the intake and exhaust system and the cooling fan is reasonable, which effectively reduces the temperature of the unit

during operation and improves the working stability.





   Robust and durable

The entire canopy frame is made of heavy-duty galvanized steel to offset vibration and material consumption, coupled with thickened and specially designed,

wear-resistant double-thick plate chassis, which can resist strong torsional impact and twisting force.



   Superior performance muffler-system

Adopt unique noise reduction and muffler system. The muffler adopts advanced design and is made of various excellent materials such as stainless steel

and alloy materials, which can reduce the noise of the unit by 20-30dB(A): it can effectively reduce the noise of the unit and make the unit run quietly

without affecting daily life.



   Good anti-corrosion properties

The canopy is made of high hardness and strong corrosion resistance of professional electroplated zinc material, high hardness, strong and durable,

strong corrosion resistance, can meet more than 5 years without rusting, exposed fasteners and locks are made of stainless steel product.



   Easy maintenance

All daily maintenance work can be carried out on both sides of the equipment, and all parts of the unit can be accessed through the wide inspection door:

the integrated sewage tank at the bottom of the unit is convenient for daily maintenance: the unit is designed with a climbing ladder,

which is convenient for unit hoisting and point inspection .



  Fully enclosed

The canopy adopts double-layer sheet metal structure and is equipped with sound-absorbing cotton devices inside to ensure the noise reduction of the unit,

and the door edge adopts sticky rubber sealing strips to buffer vibration, reduce noise level and strengthen the ability to prevent rain and dust.

The protection grade can be up to IP54



Alternators of brands such as Leroy somer, Marathon, and Stamford are optional, and Chinese-made alternators such as WANDING are also optional. Voltage optional 220V/380V/400V/10500V, single phase or three phase.




Optional Alternator
