Product Description

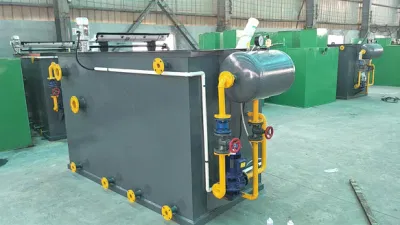

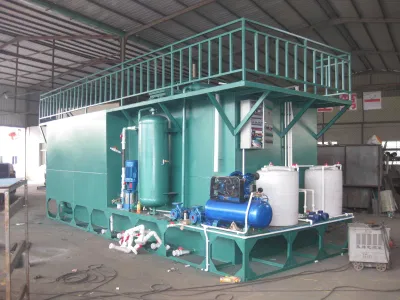

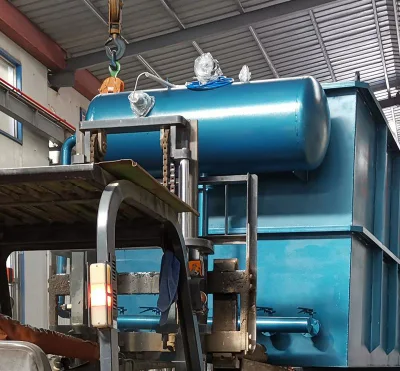

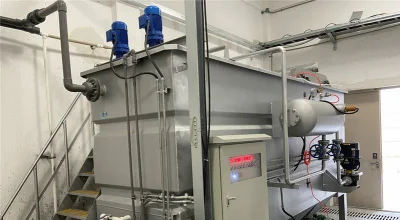

Integrated Combination Dissolved Air Flotation machine for All Kinds of Sewage Treatment Plant
1. Small footprint, low power consumption, easy operation and simple management.
3. Adopted the dedicated gas dissolution system, with advanced structure and gas dissolution efficiency over 90%. With multiple technologies and assure the super strong anti-clogging capabilities that other gas dissolution devices do not possess.
4. Adopted new type of dissolved gas release device, with high gas release rate and micro-bubbles average particle size only 15-30 microns.

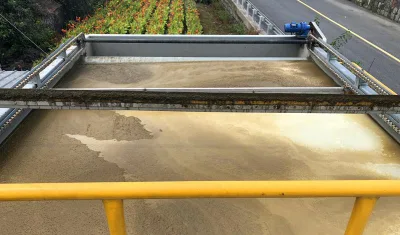

5. Adopted chain plate scraper, operates smoothly and reliably with high scraping efficiency.
Air flotation is widely used in sewage treatment and water purification engineering. This device is suitable for:
1. Paper white water pulp recycling and clean water reuse.
2. Removal of various heavy metal ions.
3. Separation of refinery wastewater and oil pollution.
4. Removal of impurities from tannery wastewater.
5. Removal of chromaticity and impurities in printing and dyeing wastewater.
6. Solid-liquid separation for various biological treatments and biological mud film.
7. Sludge concentration (treatment capacity of 30% -50% of the equipment's capacity).
| No | Model | Treatment Capacity | Size | Power | Body Material | Marks | ||
| (m3/h) | L(m) | B(m) | H(m) | (kw) | ||||
| 1 | QF-1 | 0.5-1.0 | 1.50 | 1.00 | 1.30 | 1.28 | Carbon steel anti-corrosion | Small and medium-sized air flotation |
| 2 | QF-2 | 1.0-2.0 | 1.96 | 1.20 | 1.60 | 1.28 | Carbon steel anti-corrosion | |
| 3 | QF-3 | 2.0-3.0 | 3.00 | 2.10 | 2.30 | 2.02 | Carbon steel anti-corrosion | |
| 4 | QF-5 | 3.0-4.0 | 3.20 | 2.30 | 2.30 | 2.02 | Carbon steel anti-corrosion | |
| 5 | QF-10 | 5.0-10 | 4.20 | 2.50 | 2.50 | 2.62 | Carbon steel anti-corrosion | |
| 6 | QF-15 | 10-15 | 4.70 | 2.80 | 3.32 | Carbon steel anti-corrosion | ||
| 7 | QF-20 | 15-20 | 4.70 | 3.10 | 3.32 | Carbon steel anti-corrosion | ||
| 8 | QF-30 | 20-30 | 5.70 | 3.40 | 6.62 | Carbon steel anti-corrosion | ||
| 9 | QF-40 | 30-40 | 7.20 | 3.30 | 2.50 | 6.62 | Carbon steel anti-corrosion | Large size air flotation |
| 10 | QF-50 | 40-50 | 7.20 | 3.80 | 9.37 | Carbon steel anti-corrosion | ||
| 11 | QF-60 | 50-60 | 8.20 | 3.90 | 9.37 | Carbon steel anti-corrosion | ||
| 12 | QF-70 | 60-70 | 9.20 | 4.10 | 13.75 | Carbon steel anti-corrosion | ||
| 13 | QF-80 | 70-80 | 10.20 | 4.40 | 13.75 | Carbon steel anti-corrosion | ||
| 14 | QF-100 | 80-100 | 10.20 | 4.80 | 17.75 | Carbon steel anti-corrosion | ||
We, Qingdao Rely Environmental Technology Co., Ltd., established in 2015, is a comprehensive environmental enterprise, included product research, process design, system integration, equipment manufacturing, project construction and technical services. We committed to become a professional and reliable supplier of water treatment and organic waste solutions.
The products are widely used for drinking water treatment, industrial water treatment, domestic sewage water treatment, industrial sewage treatment, air pollution control, organic waste treatment and so on. Also supply environmental and efficient water treatment chemical products.
We have good long-term cooperation with Chinese well-known universities and research institutes, assure our strong technical strength and acquired series of technical patent. Our teammates have rich experience and already completed over 100 projects in domestic and foreign, gained highly reputation from local citizens and governments. In Asia, African and South American market, we have made several big landfill leachate treatment projects, treatment capacity from 100MT to 400MT, because of reasonable design, advanced equipment and high level construction, all projects run stable and efficient, proved our strong technical strength and high quality level.
With strong technical strength, we are not only a reliable equipment supplier, but also undertake EPC general contracting projects, and provide technical services to partners, including engineering design, engineering consulting, etc.
Warmly welcome to cooperate with us, for cleaner water, fresher air, more blue sky and more beautiful home!
World Class Technology Partners
World Class Device Partners
World Class Business Partners
1. Q: What products do you produe?
A: We are specialized in drinking water treatment, industrial water treatment, domestic sewage water treatment, industrial sewage treatment, air pollution control, organic waste treatment and so on. Also supply environmental and efficient water treatment chemical products.2. Q: What information do we need before ordering?
A1: Pls advise your requirements for overall treatment process.
A2: Pls offer the water quality report for influent water or raw water type.
A3: Pls advise the max treatment capacity for design.
A4: Pls advise the quality demands for the effluent water or the usage of effluent water.
3. Q: How long is your lead time?
A: Generally it is 25 days, depends on your needs and project scales.
4. Do you provide OEM service?
A: We provide high-quality OEM services, and also provide buyers customized products.
5. What other services can you provide?
A: Provide free technical support at any time, and also can help you design the whole treatment process of the project.
