Basic Info.
Model NO.
HPR800 400 260 130XD
Certification
CE, RoHS, GS
Standard
DIN, ASTM, GOST, GB, JIS, ANSI, BS
Customized
Customized
Material
Brass Copper/Brass/PA/Spring
Application
Metal Cutting Machine, Metal Processing Machinery Parts, Metal Coating Machinery
Nozzles Holes
Hprxd
Cutting Torch
Protect Cap
Torch Model
Hprxd 200A Torch
Plasma Accessories
Torch Nozzles & Electrode
Cutting Kits
Welding Torches 220354
Electrode
Plasma Cutter
Plasma Cutting Consumables
220354
Shield Cap
220761
Plasma Cutter Tips
Consumable Kits Plasma Cutter
Consumables
Cutting Electrode Nozzle
Consumables for Cutting Machine
Electrode Nozzle
Cutting Tools
Plasma Nozzles Electrode
Powermax Shield
Plasma Cutter Tips
Spare Part Kits
Plasma Cutter Tips
Transport Package
Carton Box
Specification
brass
Trademark
OEM
Origin
China
HS Code
8468900000
Packaging & Delivery
Package Size
10.00cm * 8.00cm * 2.00cm
Package Gross Weight
0.150kg
Product Description
LARGE STOCK OF HYPERTHERM CONSUMABLES and China plasma source.
allwin cnc machinery holds the largest stocks of genuine Hypertherm plasma consumables and spare parts. Available in-stock we offer competitive pricing and superb service. We support current and discontinued machines and Hypertherm plasma cutting
systems and offer same day dispatch via a range of delivery services for orders received before 2.30pm.
Why Purchase Hypertherm Plasma Torch Consumables Nozzles Electrodes From Us?
Along with industrial technical growing fast,more and more CNC plasma cutting machine become subjects for metal fabriction.
being a professional supplier for CNC machines we would like to recomend Hypertherm plasma cutter with its consumables.
1.Larger stock with all kinds of models at very competitive price.
2. The Hypertherm plasma accessories consumables are very competitive. The more you order, the lower the price; it is very suitable for distributors who purchase in large quantities or users who use Hypertherm plasma accessories consumables in large quantities;
3. The plasma nozzle/plasma electrodes and plasma shield cap are processed and produced by high-precision machines, with beautiful appearance and quality that fully meets the requirements of use;
4. Our consumables, especially nozzles, electrodes, and protective caps have a relatively long service life and reliable cutting accuracy.
NEXT DAY DELIVERY
we understand that downtime is not an option for our customers. That is why we have the largest stock of genuine Hypertherm consumables & parts, enabling us to immediately dispatch most parts so a customer's lost production is reduced to an absolute minimum. Non-account customers can order by telephone and pay by credit card for immediate dispatch.
PLASMA CUTTING CONSUMABLES: WHAT, WHY, AND HOW LONG DO THEY LAST?
Plasma cutters contain a number of consumable parts, which is unsurprising when you consider the very high temperatures involved in producing and focussing an arc of plasma. Keeping on top of the condition of these consumables is very important as it will help to ensure a consistent high-quality cut, and reduce the time involved in processing and refining your finished parts.
WHAT ARE PLASMA CUTTER CONSUMABLES?
Plasma cutter consumables are a set of components in your plasma cutter that gradually wear over time until they need to be replaced: they have a life cycle. The consumables are all found in the cutting torch itself, which is where most of the energy is focussed, and keeping track of wear and tear is a key part of maintaining an efficient machine that cuts well and lasts a long time. Plasma cutting torch consumables include: a swirl ring, electrode, nozzle, retaining cap, and shield cap.
NOZZLE

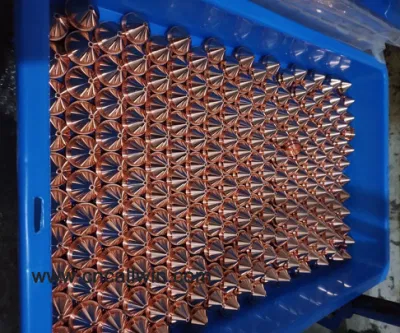

The nozzle focuses the plasma arc and the gas that surrounds it to make a clean and precise cut. A nozzle with a larger opening is used for gouging, while a nozzle with a smaller opening is better able to direct the gas and so is used for fine, detailed work.
ELECTRODE

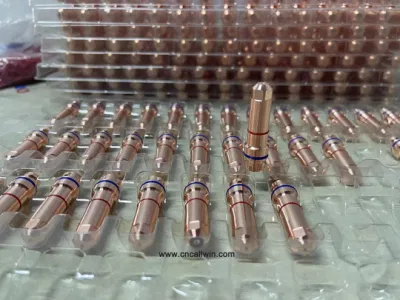

The electrode is a narrow piece of copper containing hafnium (which is an excellent conductor of electricity). Its job is to receive the electrical current from a cathode block inside the torch to which it is connected, and to focus the charge through its tip, which causes it to arc onto the workpiece.
RETAINING CAP
The retaining cap essentially holds all of the consumable parts of the torch together. As temperatures at this end of the machine are extremely high, it's not just the parts creating and focussing the arc that are worn down; the component holding them together also degrades over time.
SHIELD CAP
The shield is there to protect the torch and its other components from the sparks and molten metal that result from the plasma cutting process. It takes the brunt of the fallout so that wear to other components is minimised as much as possible.
HOW LONG DO PLASMA CUTTER CONSUMABLES LAST?
Now that we've looked at the role each of these consumable parts play, we'll move on to discuss how long these elements last. The nozzle and the electrode will wear out more quickly than other components, as they are most directly involved with the creation and focussing of the cutting arc. You'll notice nozzle wear primarily in the quality of the cut you are achieving. As the nozzle wears, the hole in the tip gets larger, which makes the plasma arc thicker and produces a wider cut (kerf) in your workpiece. You will be able to see with a simple visual inspection when the hole in the nozzle becomes too large and needs replacing.
CHECK WHICH PLASMA CONSUMABLES YOU NEED
If you are looking for plasma consumables, torches or torch assembly options it's very important you order the correct parts based on your system, material or amperage.
Therefore we will provide you with an overview of all current and legacy Hypertherm plasma cutting systems, so you could see which option fits best your needs.
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220671 | powermax45 |
| 2 | shield cap | 220673 | |
| 3 | nozzle retaining cap | 220713 | |
| 4 | electrode | 220669 | |
| 5 | swirl ring | 220670 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220671 | powermax45(handheld) |
| 2 | shield cap | 220674 | |
| 3 | nozzle retaining cap | 220713 | |
| 4 | electrode | 220669 | |
| 5 | swirl ring | 220670 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220941 | powermax45xp |
| 2 | shield cap | 220817 | |
| 3 | outer retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220941 | powermax45xp(handheld) |
| 2 | shield cap | 220818 | |
| 3 | outer retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220819 | powermax65 |
| 2 | shield cap | 220817 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220819 | powermax65(handheld) |
| 2 | shield cap | 220818 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220816 | powermax85 |
| 2 | shield cap | 220817 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220816 | powermax85(handheld) |
| 2 | shield cap | 220818 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220857 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220990 | powermax105 |
| 2 | shield cap | 220993 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220994 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220990 | powermax105(handheld) |
| 2 | shield cap | 220992 | |
| 3 | nozzle retaining cap | 220854 | |
| 4 | electrode | 220842 | |
| 5 | swirl ring | 220994 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220975 | powermax125 |
| 2 | shield cap | 220976 | |
| 3 | nozzle retaining cap | 220977 | |
| 4 | electrode | 220971 | |
| 5 | swirl ring | 220997 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 220975 | powermax125(handheld) |
| 2 | shield cap | 420000 | |
| 3 | nozzle retaining cap | 220977 | |
| 4 | electrode | 220971 | |
| 5 | swirl ring | 220997 | |
| NO. | NAME | Part NO. | MODEL |
| 1 | nozzle | 420044 | Maxpro200 |
| 2 | shield cap | 420045 | |
| 3 | nozzle retaining cap | 220936 | |
| 4 | electrode | 220937 | |
| 5 | swirl ring | 220488 |
| 170 | 300 | Amperage | Process | Shield cap | Shield | retaining cap | Nozzle | Swirl ring | Electrode | Water tube |
| l | l | 30 A | O2/O2 | 420200 | 420228 | 420365 | 420225 | 420407 | 420222 | 420368 |
| l | l | 50 A | O2/Air | 420200 | 420237 | 420365 | 420234 | 420233 | 420231 | 420368 |
| l | l | 80 A | O2/Air | 420200 | 420246 | 420365 | 420243 | 420242 | 420240 | 420368 |
| l | l | 130A | O2/Air | 420200 | 420255 | 420365 | 420252 | 420242 | 420249 | 420368 |
| l | l | 170A | O2/Air | 420200 | 420513 | 420365 | 420261 | 420260 | 420258 | 420368 |
| l | 220A | O2/Air | 420200 | 420273 | 420365 | 420270 | 420406 | 420276 | 420368 | |
| l | 300A | O2/Air | 420200 | 420491 | 420365 | 420279 | 420406 | 420276 | 420368 |
