Nitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco Engine
Get high-quality 24V truck starter and diesel engine starter motor from Nitai, the leading Mitsubishi M9t64071 kick starter supplier in China. We are a factory direct supplier.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Detailed Photos
  • FAQ
Overview

Basic Info.

Model NO.
M9T64071
DC Form
Common Starter Motor
Product Name
Starter Motor
Keywords
Starting Motor
Model
M9t64071
Voltage (V)
24
Kilowatt (Kw)
5.5
Teeth
12
Rotation
Cw
Used on
for Iveco Volvo Truck
Weight
Standard
Material
Metal
Certification
ISO/Ts16949
Application
Iveco Volvo Truck
Condition
100% New
MOQ
1PCS
Quality
100% Tested
Transport Package
Carton + Pallet
Specification
35*20*25cm
Trademark
CHINA NITEL STARTER
Origin
China
HS Code
8511409900
Production Capacity
5000PCS/Month

Product Description

NiTAI Mitsubishi M9T64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor For Car Auto Generator Iveco Engine

Nitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco EngineNitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco EngineNitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco EngineNitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco Engine

Starting Motor

A starter is a device used to rotate an internal combustion engine in order to initiate the operation of the engine under its own power. The starter can be electric, pneumatic, or hydraulic. In the case of, for example, oversized engines or diesel engines in agricultural or excavation applications, the starter can also be another internal combustion engine. Internal combustion engines are feedback systems that, once started, rely on the inertia of each cycle to start the next cycle.

How A Starter Motor Works
It Can Be Explained By The Working Principle Of Its Main Component, The DC Motor. A DC Motor Is A Device That Converts Electrical Energy Into Mechanical Energy. It Is Based On The Principle That A Charged Conductor Is Subjected To Electromagnetic Force In A Magnetic Field. Because The Torque Generated By One Coil Is Too Small And The Speed Is Unstable, In Fact, There Are Many Coils Wound On The Armature Of The Motor, And The Number Of Commutation Pieces Also Increases Correspondingly With The Increase Of Coils. So As To Ensure Sufficient Torque And Stable Speed.

Notice

The Starting Time Of The Starter Motor Should Not Be Too Long Each Time, Generally Speaking, About 10 Seconds Is The Best. The Time Interval Between Starting The Motor Twice Is About 1 Minute, Preferably Greater Than 1 Minute. If It Cannot Be Started Three Times In A Row, The Engine, Battery, Circuit Lines And Connection Points Should Be Checked At This Time.

For A Starter Motor Without An Overcurrent Protection Device, If It Cannot Be Started Three Times In A Row, The Starter Motor Must Be Stopped At This Time, Because The Starting Current Is Too Large, And The Starter Motor Will Overheat Due To Excessive Current During Long-Term Work; If You Continue To Forcibly Start The Motor, The Motor Will Most Likely Burn Out.

After Replacing The Starter Motor, You Should Pay Attention To The Contact Points Of The Positive And Negative Poles. It Is Best To Polish The Contact Points And Install Them Firmly, Otherwise, It Will Cause The Problem That The Engine Will Not Start When It Is Hot.

Product Parameters

Product Name Starter Motor
Keywords Starting Motor
Model M9T64071
Voltage (V) 24
Kilowatt(Kw) 5.5
Teeth 12
Rotation Cw
Used on for Iveco Volvo Truck
Weight Standard
Material Meta
Certification SO/Ts16949
Application Iveco Volvo Truck
Condition 100% New
MOQ 1PCS
Quality 100% Tested

Advantage

Mitsubishi Electric's Heavy And Light Duty Starter Motors Are Compact And Lightweight. This Contributes To Fuel Economy And In-Vehicle Accountability.

Good Quality: The Replacement Parts Adopt High-Quality Material, Which Is Durable And Reliable To Use. It Is Made Of Durable, Good-Quality Materials That Can Be Used To Prevent Damage From Being Worn And Broken.

Professional: Professional Spindle For High Precision In A Superior Production Path, Stable Performance, And Long Service Life. Professional Manufacturing, High Reliability, And Precise Testing.

Products Material: We Guarantee 100% New Products With Copper 100%Spare Parts Like Regulators & Rectifiers, Bush & Bearings From Famous Brands In The World

Product Quality: With Advanced Equipment For Production, Inspection, And Testing, The Manufacturing Of Every Product Is Strictly By ISO/TS16949 Quality Controlling Standards Before Shipment
Nitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco Engine

OEM No:

OEM No Cargo 115451
CAS CST35675, CST35675AS, CST35675ES, CST35675OS
Delco 19081035, DRS0636
Iskra 11139622, AZE4694
Iveco 2995373
KRAUF STM7071BA, STM7071NB, STM7071NL,
STM7071ZL, STM8071MH, STM9071MH
MAHLE MS783
Mitsubishi M009T64071, M009T64071ZT, M009T66471,
M009T66471ZT, M009T68871, M9T64071, M9T64071ZT,
M9T64072, M9T66471, M9T66471ZT, M9T67671, M9T68871
Motorherz STM7071RB, STM7071WA
VOLVO 20851685, 21632129, 21934636,
22355966, 85000806, 85013090, 85013530, 85020306
WPS 30460N
ZAUFER 300N10820Z

FITS FOR:


FITS FOR IVECO EuroStar LD 260 E 48 Y / PS 93'-02 'F3BE0681E 353Kv / 480Ls 12880Sm3 Diesel Truck c Flatbed / Chassis I
VECO EuroStar LD 440 E 48 T / P 01'-02 'F3BE0681E 353Kv / 480Ls 12880Sm3 Diesel Tractor
IVECO EuroTrakker MP 190 E 38 W Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 190 E 38 W Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 190 E 44 W Cursor 00'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 190 E 44 W Cursor 00'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 260 E 38 H Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 260 E 38 W Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 260 E 38 W Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 260 E 44 H Cursor 00'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 260 E 44 H Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 260 E 44 W Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 260 E 44 W Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 340 E 38 H Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 340 E 38 H Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 340 E 38 HB Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Concrete Mixer
IVECO EuroTrakker MP 340 E 44 H Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 340 E 44 H Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 340 E 44 HB Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Concrete Mixer
IVECO EuroTrakker MP 380 E 38 H Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 380 E 38 H Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 380 E 38 HB Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Concrete Mixer
IVECO EuroTrakker MP 380 E 38 W Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 380 E 38 W Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 380 E 44 H Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 380 E 44 H Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 380 E 44 HB Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Concrete Mixer
IVECO EuroTrakker MP 380 E 44 W Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 380 E 44 W Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 410 E 38 H Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 410 E 38 H Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 410 E 38 HB Cursor 01'-04 'F3BE0681G 280Kv / 380Ls 12880Sm3 Diesel Concrete Mixer
IVECO EuroTrakker MP 410 E 44 H Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Tipper
IVECO EuroTrakker MP 410 E 44 H Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO EuroTrakker MP 410 E 44 HB Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Concrete Mixer
IVECO EuroTrakker MP 440 E 38 HT Cursor 01'-04 'F3BE0681G 279Kv / 380Ls 12880Sm3 Diesel Tractor
IVECO EuroTrakker MP 440 E 44 HT Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Tractor
IVECO EuroTrakker MP 720 E 38 HT Cursor 01'-04 'F3BE0681G 279Kv / 380Ls 12880Sm3 Diesel Tractor
IVECO EuroTrakker MP 720 E 44 HT Cursor 01'-04 'F3BE0681C 324Kv / 440Ls 12880Sm3 Diesel Tractor
IVECO EuroTrakker MP 720 E 48 HT Cursor 01'-04 'F3BE0681E 354Kv / 480Ls 12880Sm3 Diesel Tractor
IVECO Stralis AD 190S40, AT 190S40 03'-? 'F3AE0681B 294Kv / 400Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 190S40, AT 190S40 03'-? 'F3AE0681H 294Kv / 400Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 190S42, AT 190S42, AS 190S42 06'-? 'F3AE3681B 309Kv / 420Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 190S42, AT 190S42, AS 190S42 06'-? 'F3AE3681D 309Kv / 420Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 190S43, AT 190S43 03'-? 'F3AE0681D 316Kv / 430Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 190S45, AT 190S45 06'-? 'F3AE3681A 331Kv / 450Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 260S40, AT 260S40 03'-? 'F3AE0681B 294Kv / 400Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 260S40, AT 260S40 03'-? 'F3AE0681H 294Kv / 400Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 260S42, AT 260S42 06'-? 'F3AE3681B 310Kv / 422Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 260S42, AT 260S42, AS 260S42 07'-? 'F3AE3681B 310Kv / 422Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 260S43, AT 260S43 03'-? 'F3AE0681D 316Kv / 430Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 260S45, AT 260S45 06'-? 'F3AE3681A 331Kv / 450Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 260S45, AT 260S45, AS 260S45 07'-? 'F3AE3681A 331Kv / 450Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 320S36 07'-? 'F3BE0681J 265Kv / 360Ls 12882Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AD 440S40, AT 440S40 03'-? 'F3AE0681B 294Kv / 400Ls 10300Sm3 Diesel Tractor
IVECO Stralis AD 440S40, AT 440S40 03'-? 'F3AE0681H 294Kv / 400Ls 10300Sm3 Diesel Tractor
IVECO Stralis AD 440S40, AT 440S40 03'-? 'F3AE0681B 294Kv / 400Ls 10300Sm3 Diesel Tractor
IVECO Stralis AD 440S40, AT 440S40 03'-? 'F3AE0681H 294Kv / 400Ls 10300Sm3 Diesel Tractor
IVECO Stralis AD 440S40, AT 440S40 03'-? 'F3AE0681B 294Kv / 400Ls 10300Sm3 Diesel Tractor
IVECO Stralis AD 440S42, AT 440S42 06'-? 'F3AE3681B 310Kv / 422Ls 10300Sm3 Diesel Tractor
IVECO Stralis AD 440S42, AT 440S42 06'-? 'F3AE3681D 310Kv / 422Ls 10300Sm3 Diesel Tractor
IVECO Stralis AD 440S43, AT 440S43 03'-? 'F3AE0681D 316Kv / 430Ls 10300Sm3 Diesel Tractor
IVECO Stralis AD 440S43, AT 440S43 03'-? 'F3AE0681D 316Kv / 430Ls 10300Sm3 Diesel Tractor
IVECO Stralis AD 440S45, AT 440S45 06'-? 'F3AE3681A 331Kv / 450Ls 10300Sm3 Diesel Tractor
IVECO Stralis AS 190S40 02'-? 'F3AE0681B 294Kv / 400Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AS 190S40 02'-? 'F3AE0681H 294Kv / 400Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AS 190S43 02'-? 'F3AE0681D 316Kv / 430Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AS 190S45 06'-? 'F3AE3681A 331Kv / 450Ls 10300Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AS 190S48 02'-? 'F3BE0681E 353Kv / 480Ls 12880Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AS 190S50 06'-? 'F3B3681B 368Kv / 500Ls 12882Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AS 190S50 06'-? 'F3HFE611 / 368Kv 500 / 500Ls 12882Sm3 Diesel Truck c Flatbed / Chassis
IVECO Stralis AS 190S50 06'-? 'F3HFE611B 368Kv / 500Ls 12882Sm3 Diesel Truck c Flatbed /

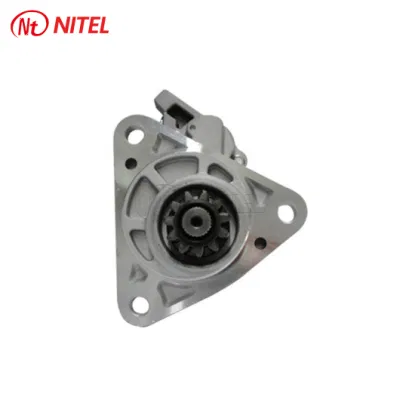

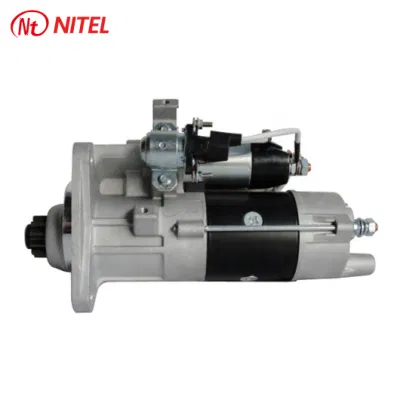

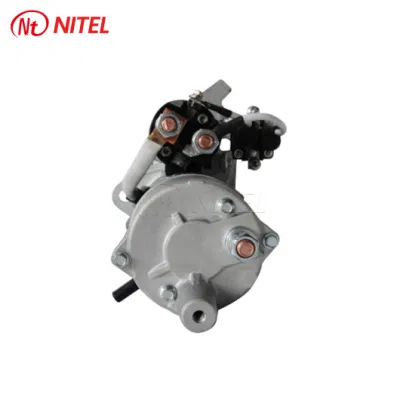

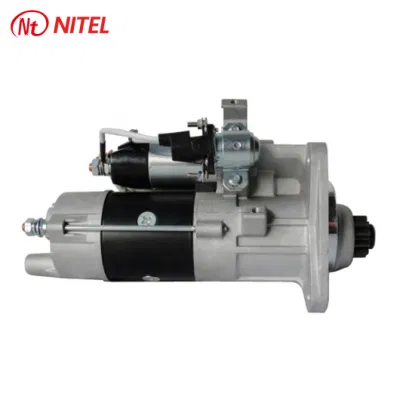

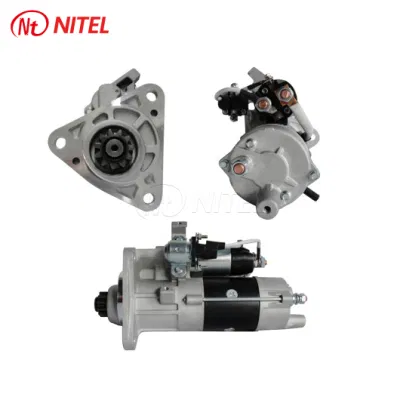

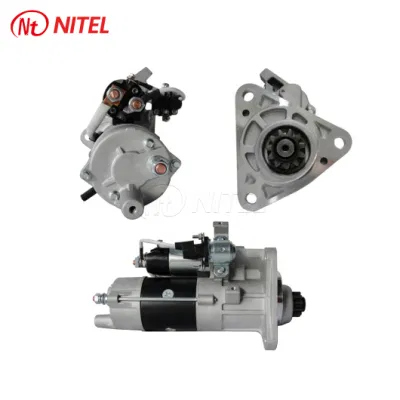

Detailed Photos

Nitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco EngineNitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco EngineNitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco EngineNitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco EngineNitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco Engine
About Us

Founded In 2010, Shandong Nitai Electromechanical Co., Ltd. Is An Excellent Starter, Alternator, And Parts Supplier. Our High-Quality Motors Are Used In Heavy trucks, Mechanical, And Marine Engines. The Company Is Located In Liaocheng Shandong, A National Historical And Cultural City Known As "The North Water City Of The Yangtze River", With Convenient Transportation.

Since Its Establishment, The Company Has Formed A Perfect Product Structure, With More Than 10 Series Of Starter Motors And Alternators, And More Than 1000 Models. The Company Has Domestic Advanced Starter Motors, Alternator Production Lines, Complete Technical Equipment, And An Annual Production Capacity Of 500,000 Sets. The Main Products Are The Bosch Series, Delco Series, Mitsubishi Series, Prestolite Series, Hitachi Series, And So On. Our Products Are Suitable For All Kinds Of Engines And Trucks, Such As Cummins Engines, Deutz Engines, Caterpillar Engines, Weichai Power Engines, DCEC Engines, CCEC Engine, Shanghai Diesel Engines, Dalian Diesel Engines, Medium Heavy Automobiles, Freighter Trucks, International Truck, Etc.

The Products Have Been Exported To Russia, Spain, South Korea, Germany, The United Kingdom, The United States, Canada, Brazil, Argentina, India, Saudi Arabia, Pakistan, Kazakhstan, South Africa, Vietnam, Cambodia, And Other Countries.

Nitai for Mitsubishi M9t64071 Kick Starter Suppliers China 24V Truck Starter High-Quality Diesel Engine Starter Motor for Car Auto Generator Iveco Engine


FAQ

Q1:Are You A Manufacturer?
  A: Yes, We Are A Starter Motor Manufacturer/Factory.

Q2: How Much Does The Sample Cost?
  A: Please Contact Our Sales Staff And Tell Them The Model You Need, And They Will Check The Sample Cost For You (Some Are Free). And The Customer Pays The Delivery Cost.

Q3: How To Get A Quotation?
  A: Please Suggest One Number Or Picture, Quantity, Etc., And Then Send Your Email To Us Or Talk To Our Staff Through The Trade Manager.

Q4: What Is The Minimum Order Quantity?
  A: If We Have Stock, There Is No Minimum Order Quantity Limit. If Not, Please Contact Our Sales Staff, Different Items Are Different.

 Q5: What About Your Service?
   A: Timely. Be Careful. Before The Sale, We Will Use Our Software To Check The Correct OE Number To Avoid Errors. After Sending, We Will        Track The Product For You Every Two Days Until You Get The Product.

 Q6: Do You Test All Your Goods Before Delivery?
   A: Yes, We Have 100% Test Before Delivery

Q7:  How Do You Make Our Business Long-Term And Good Relationship?
  A:1. We Keep Good Quality And Competitive Prices To Ensure Our Customers Benefit ;
     2. We Respect Every Customer As Our Friend And We Sincerely Do Business And Make Friends With Them, No Matter Where They Come From.
