Basic Info.
Model NO.
CPPS
Inner Core
None, PP
Construction
3-Layer
Test
Meet FDA 21 CFR 177.1520 and EU Standard
Transport Package
Export Standard Packing
Specification
5"-50"
Trademark
Filterek, OEM
Origin
China
HS Code
8421991000
Production Capacity
5000000pieces/Year
Product Description
Manufacturer of PP/polyster pleated swimming pool SPA filter element/ high flow particulate water filter cartridge
CPPS Cartridges' Micro Grooved Finishing increases the cartridge surface area by 35%, greatly
improved dirt holding capacity while maintaining the normal flow rate. Specially singed for fiber
migration free operation, CPPS is widely used in electronic and pharmaceutical industries. Graded
pore dept filter media type. No core lining required.
CPPS is absolute grade melt blown polypropylene cartridge. The test showed that it is 95%
contaminant particle retention efficiency with a single pass.
Features
Micron range: 0.5,1,5,10,25,50,75,100 micron.
Length: Log made of continuous length. 10~40" normal length. Custom cut available.
Efficiency: Absolute rating, 95% contaminant particle retention efficiency with a single pass.
Media grade: Exclusively FDA compliant media, no silicon and other types of contamination.
High flow rate, low pressure drop
Large contaminant retention capacity, extended service life.
Optimum replacing pressure differential 0.25MPa, Max. 0.35MPa
Broad chemical compatibilities.
Filter Cartridge Code Identification
CPPM-Standard Polypropylene melt blown/Nominal Ratio,Removal efficiency >85%
CPPH-High density Polypropylene melt blown/orange surface/High weight/ Nominal Ratio, Removal efficiency >98%
CPPX-High Flux polypropylene melt brown/cut grooves/Middle weight/Absolute Ratio,Removal efficiency >90%
CPPV-High Flux and long life polypropylene melt blown/Glues supporting fiber achieved/Middle weight/Absolute Ratio,Removal efficiency >98%
CPPS-High density Polypropylene melt blown/Heated grooves/High weight/ Absolute Ratio,Removal efficiency >95%
CPPA-High density Polypropylene melt blown/Heated glazed /High weight/ Absolute Ratio, Removal efficiency >99%
CPML-PP melt brown cartridges with pp supporting central cores/Nominal Ratio,Removal efficiency >85%
CPHL-High density Polypropylene melt blown with pp supporting central cores/orange surface/ High weight/Absolute Ratio, Removal efficiency >98%

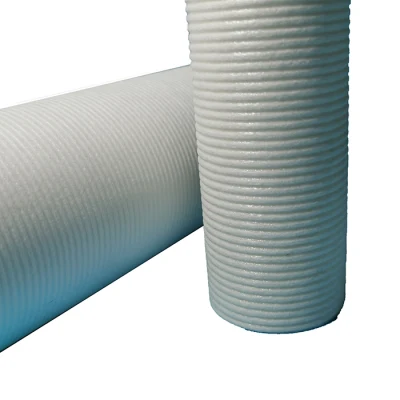

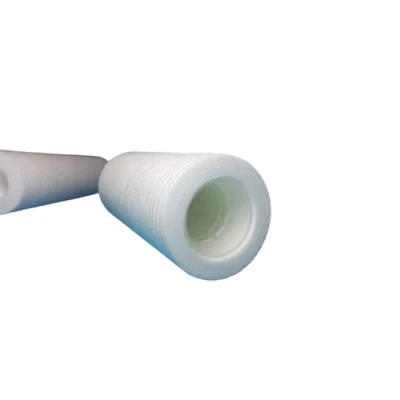

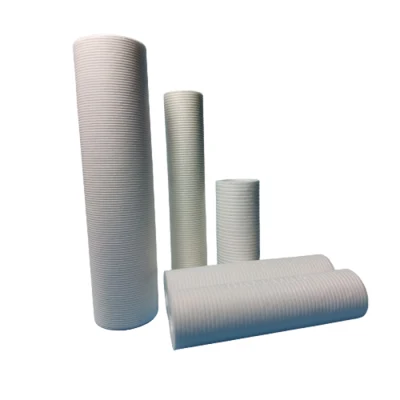

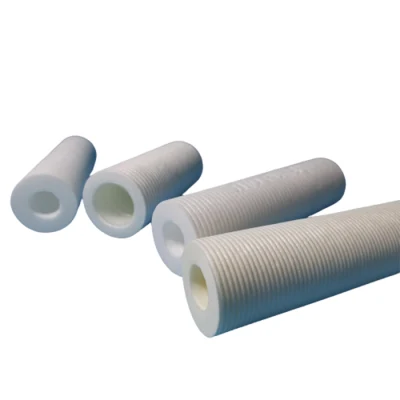

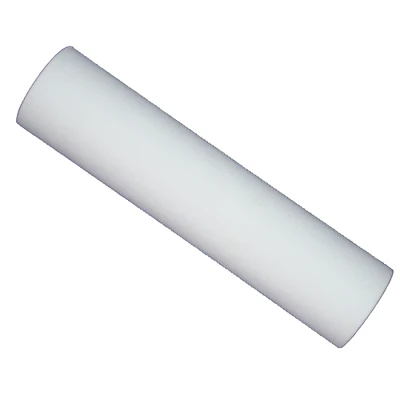

Products Pictures
Specification
Applications:
* Pre-filter of drinking water system
* Pre-filter of R.O system and others water system
* Oil removal industry
* Food and beverages industry
* Photographic industry
* Pharmacy industry
* Electroplating, etching and image development processes in PCB industry
* Filtration of electroplating fluid in conventional electroplating industry
* Trap filter of DI water filtration system for industry
Certificate
CPPS Cartridges' Micro Grooved Finishing increases the cartridge surface area by 35%, greatly
improved dirt holding capacity while maintaining the normal flow rate. Specially singed for fiber
migration free operation, CPPS is widely used in electronic and pharmaceutical industries. Graded
pore dept filter media type. No core lining required.
CPPS is absolute grade melt blown polypropylene cartridge. The test showed that it is 95%
contaminant particle retention efficiency with a single pass.
Features
Micron range: 0.5,1,5,10,25,50,75,100 micron.
Length: Log made of continuous length. 10~40" normal length. Custom cut available.
Efficiency: Absolute rating, 95% contaminant particle retention efficiency with a single pass.
Media grade: Exclusively FDA compliant media, no silicon and other types of contamination.
High flow rate, low pressure drop
Large contaminant retention capacity, extended service life.
Optimum replacing pressure differential 0.25MPa, Max. 0.35MPa
Broad chemical compatibilities.
Filter Cartridge Code Identification
CPPM-Standard Polypropylene melt blown/Nominal Ratio,Removal efficiency >85%
CPPH-High density Polypropylene melt blown/orange surface/High weight/ Nominal Ratio, Removal efficiency >98%
CPPX-High Flux polypropylene melt brown/cut grooves/Middle weight/Absolute Ratio,Removal efficiency >90%
CPPV-High Flux and long life polypropylene melt blown/Glues supporting fiber achieved/Middle weight/Absolute Ratio,Removal efficiency >98%
CPPS-High density Polypropylene melt blown/Heated grooves/High weight/ Absolute Ratio,Removal efficiency >95%
CPPA-High density Polypropylene melt blown/Heated glazed /High weight/ Absolute Ratio, Removal efficiency >99%
CPML-PP melt brown cartridges with pp supporting central cores/Nominal Ratio,Removal efficiency >85%
CPHL-High density Polypropylene melt blown with pp supporting central cores/orange surface/ High weight/Absolute Ratio, Removal efficiency >98%
Products Pictures
 |  |  |
 |  |  |
Specification
Material | Polypropylene |
Core | None, Polypropylene |
Surface | Hairy fiber Surface |
Endcap | DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin |
Sealing Material | BUNA, EPDM, Silicon, Viton |
Inner Diameter | 11mm ~ 98mm |
Outer Diameter | 26mm ~ 160mm |
Micron Rating | 1um ~ 100um |
Length | 5" ~ 50" |
Applications:
* Pre-filter of drinking water system
* Pre-filter of R.O system and others water system
* Oil removal industry
* Food and beverages industry
* Photographic industry
* Pharmacy industry
* Electroplating, etching and image development processes in PCB industry
* Filtration of electroplating fluid in conventional electroplating industry
* Trap filter of DI water filtration system for industry
Certificate
 |  |  |
