Basic Info.
Model NO.
UCF-207
Material
Bearing Steel
Spherical
Non-Aligning Bearings
Load Direction
Axial Bearing
Separated
Separated
Model No.
Ucf 205
Bearing Block Model
F
Bore Size
35
Applications
Agricultural Machinery, Transportation System etc
Steel Ball Grade
G10
Material of The Bearing
Gcr15
Size
Ucf205f
Hardness of Bearing
HRC60-63
Coordination for Bearing & Housing
H7 & J7& K7
Seal
F Seal
Transport Package
Single Box Packing+Cartons+Pallets
Specification
40mm-500mm
Trademark
JRZA or customzied
Origin
Shandong, China
HS Code
84832000
Production Capacity
100000pieces/Year
Product Description

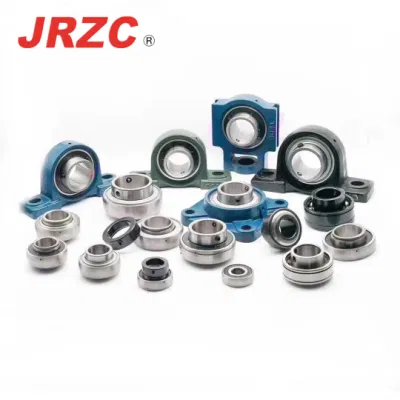

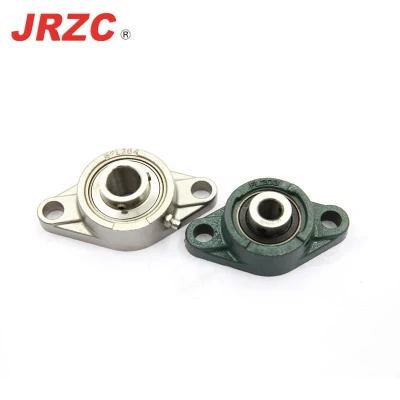

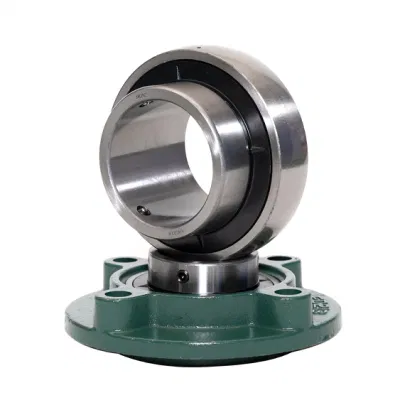

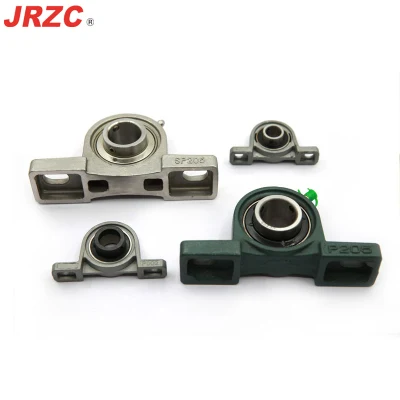

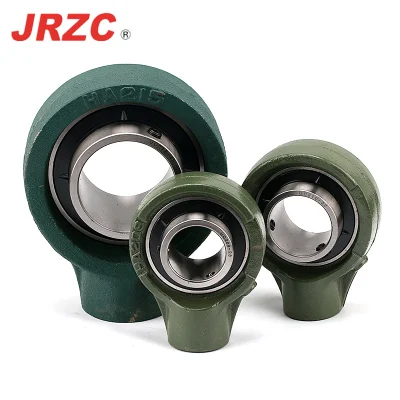

Factory cheap Price Pillow Block/Insert/Thrust Ball Bearing (P207 UCP207 F207 UCF205 UC207)
Technical information:
Our packing:
* Industrial pakage+outer carton+pallets
* sigle box+outer carton+pallets
* Tube package+middle box+outer carton+pallets
* According to your requirments
We have been engaged in foreign trade for more than 6 years and are well-known enterprises in Shandong
Province. The fixed assets of the machine are more than 2 million US dollars, and the annual foreign trade
sales volume exceeds 2 million US dollars.
We have extensive cooperation with countries in Asia, Europe, and the Americas. Including Russia, Ukraine,
elarus, Kazakhstan, Uzbekistan, Tajikistan, Spain, Mexico,India, Pakistan, Turkey, Vietnam and other industrial
areas.
SAMPLES
1.Samples quantity: 1-10 pcs are available.
2.Free samples: It depends on the model NO., material and quantity. Some of the bearings samples need client to pay
samples charge and shipping cost.
3.It's better to start your order with Trade Assurance to get full protection for your samples order.
CUSTOMIZED
The customized LOGO or drawing is acceptable for us.
MOQ
1.MOQ: 10 pcs mix different standard bearings.
2.MOQ: 3000 pcs customized your brand bearings.
OEM POLICY
1.We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
2.We can custom your packaging according to your design
3.All copyright own by clients and we promised don't disclose any info.
SUPORT
Please visit our bearings website, we strongly encourge that you can communicate with us through email,thanks!
All technical details as belows:
Material information:| Specification | Steel NO. | HRC | Chemical composition % | ||||||
| C | Si | Mn | Mo | S | P | Cr | |||
| GB/T 18254 | Gcr 15 | 61-65 | 0.95~1.05 | 0.15~0.35 | 0.25~0.45 | below 0.08 | below 0.025 | below 0.025 | 1.40~1.65 |
| UC/UE/SA/SB bearings | P housing | F housing | T housing | FL housing |
| 201 | P203 | F203 | T203 | FL203 |
| 202 | P203 | F203 | T203 | FL203 |
| 203 | P203 | F203 | T203 | FL203 |
| 204 | P204 | F204 | T204 | FL204 |
| 205 | P205 | F205 | T205 | FL205 |
| 206 | P206 | F206 | T206 | FL206 |
| 207 | P207 | F207 | T207 | FL207 |
| 208 | P208 | F208 | T208 | FL208 |
| 209 | P209 | F209 | T209 | FL209 |
| 210 | P210 | F210 | T210 | FL210 |
| 211 | P211 | F211 | T211 | FL211 |
| 212 | P212 | F212 | T212 | FL212 |
| 213 | P213 | F213 | T213 | FL213 |
| 214 | P214 | F214 | T214 | FL214 |
| 215 | P215 | F215 | T215 | FL215 |
| The model of pillow block bearing | |||||||
| Bearing No. | Shaft Diameter | Dim ensions/mm | kg | ||||
| in | mm | D | Bi | Be | |||
| UC201 | 12 | 47 | 31 | 17 | 0.21 | ||
| UC202 | 15 | 0.19 | |||||
| UC203 | 17 | 0.18 | |||||
| UC204 | 20 | 0.16 | |||||
| UC201-8 | 1.8504 | 1.2205 | 0.6693 | 0.2 | |||
| UC202-10 | 0.19 | ||||||
| UC203-11 | 0.18 | ||||||
| UC204-12 | 0.16 | ||||||
| UC205 | 25 | 52 | 34.1 | 17 | 0.19 | ||
| UC205-14 | 2.0472 | 1.3425 | 0.669 | 0.22 | |||
| UC205-15 | 15/16 | 0.2 | |||||
| UC205-16 | 1 | 0.19 | |||||
| UC206 | 30 | 62 | 38.1 | 19 | 0.31 | ||
| UC206-17 | 1 1/16 | 2.4409 | 1.5 | 0.748 | 0.36 | ||
| UC206-18 | 1 1/8 | 0.34 | |||||
| UC206-19 | 1 3/16 | 0.32 | |||||
| UC206-20 | 1 1/4 | 0.31 | |||||
| UC207 | 35 | 72 | 42.9 | 20 | 0.46 | ||
| UC207-20 | 1 1/4 | 2.8346 | 1.689 | 0.787 | 0.52 | ||
| UC207-21 | 1 5/16 | 0.5 | |||||
| UC207-22 | 1 3/8 | 0.48 | |||||
| UC207-23 | 1 7/16 | 0.46 | |||||
| UC208 | 40 | 80 | 49.2 | 21 | 0.63 | ||
| UC208-24 | 1 1/2 | 3.1496 | 1.689 | 0.787 | 0.68 | ||
| UC208-25 | 1 9/16 | 0.64 | |||||
| UC209 | 45 | 85 | 49.2 | 22 | 0.68 | ||
| UC209-26 | 1 5/8 | 3.3465 | 1.937 | 0.866 | 0.78 | ||
| UC209-27 | 1 11/16 | 0.74 | |||||
| UC209-28 | 1 3/4 | 0.7 | |||||
| UC210 | 50 | 90 | 51.6 | 24 | 0.78 | ||
| UC210-30 | 1 7/8 | 3.5433 | 2.0315 | 0.9449 | 0.85 | ||
| UC210-31 | 1 15/16 | 0.8 | |||||
| UC211 | 55 | 100 | 55.5 | 25 | 1.07 | ||
| UC211-32 | 2 | 3.637 | 2.189 | 0.9843 | 1.22 | ||
| UC211-34 | 2 1/8 | 0.1 | |||||
| UC211-35 | 2 3/16 | 1.05 | |||||
| UC212 | 60 | 110 | 65.1 | 27 | 1.52 | ||
| UC212-36 | 2 1/4 | 4.3307 | 2.563 | 1.063 | 1.65 | ||
| UC212-38 | 1 3/8 | 1.49 | |||||
| UC212-39 | 1 7/16 | 1.42 | |||||
| UC213 | 65 | 120 | 65.1 | 28 | 1.8 | ||
| UC213-40 | 2 1/2 | 4.7244 | 2.5630 | 1.1024 | 1.88 | ||
| UC214 | 70 | 125 | 74.6 | 30 | 2.06 | ||
| UC214-44 | 2 3/4 | 4.9213 | 2.9370 | 1.1811 | 2.07 | ||
| UC215 | 75 | 130 | 77.8 | 32 | 2.19 | ||
| UC215-47 | 2 15/16 | 5.1181 | 3.063 | 1.2598 | 2.21 | ||
| UC215-48 | 3 | 2.11 | |||||
| UC216 | 80 | 140 | 82.6 | 33 | 2.82 | ||
| UC216-50 | 3 1/8 | 5.5118 | 3.2520 | 1.2992 | 2.9 | ||
| UC217 | 85 | 150 | 85.7 | 35 | 3.46 | ||
| UC217-52 | 3 1/4 | 5.9055 | 3.3740 | 1.378 | 3.56 | ||
| UC218 | 90 | 160 | 96.0 | 37 | 4.56 | ||
| UC218-56 | 3 1/2 | 6.2992 | 3.7795 | 1.4567 | 4.62 | ||
Our packing:
* Industrial pakage+outer carton+pallets
* sigle box+outer carton+pallets
* Tube package+middle box+outer carton+pallets
* According to your requirments
We have been engaged in foreign trade for more than 6 years and are well-known enterprises in Shandong
Province. The fixed assets of the machine are more than 2 million US dollars, and the annual foreign trade
sales volume exceeds 2 million US dollars.
We have extensive cooperation with countries in Asia, Europe, and the Americas. Including Russia, Ukraine,
elarus, Kazakhstan, Uzbekistan, Tajikistan, Spain, Mexico,India, Pakistan, Turkey, Vietnam and other industrial
areas.
SAMPLES
1.Samples quantity: 1-10 pcs are available.
2.Free samples: It depends on the model NO., material and quantity. Some of the bearings samples need client to pay
samples charge and shipping cost.
3.It's better to start your order with Trade Assurance to get full protection for your samples order.
CUSTOMIZED
The customized LOGO or drawing is acceptable for us.
MOQ
1.MOQ: 10 pcs mix different standard bearings.
2.MOQ: 3000 pcs customized your brand bearings.
OEM POLICY
1.We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
2.We can custom your packaging according to your design
3.All copyright own by clients and we promised don't disclose any info.
SUPORT
Please visit our bearings website, we strongly encourge that you can communicate with us through email,thanks!
We have all kinds of bearings, just tell me your item number and quantity,best price will be offered to you soon
The material of the bearings, precision rating, seals type,OEM service,etc, all of them we can make according to your requirement.
