Basic Info.
Model NO.
PHQ-1.6/5A
Accuracy Grade
1
Load Way
Electronic Load
Loading Method
Dynamic Load
Display
Needle
Control
Computer Control
Weight
0.5-16kg
Power Source
AC220V
Oil Cylinder Position
Under
Length
900mm
Width
700mm
Height
1200mm
Gross Weight
220kg
Transport Package
Packed in Fumigated Wood Box
Specification
ISO. CE. SGS
Trademark
JP
Origin
Shanghai China
HS Code
90311000
Production Capacity
1000 Sets/Month
Product Description

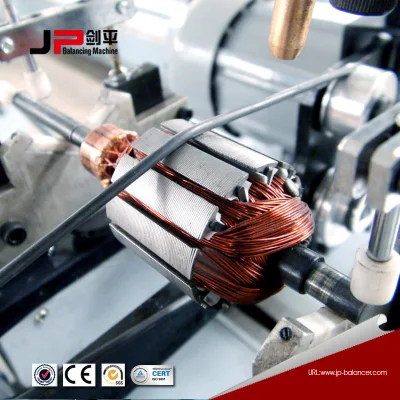

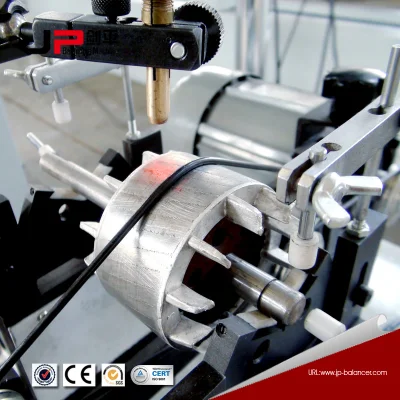

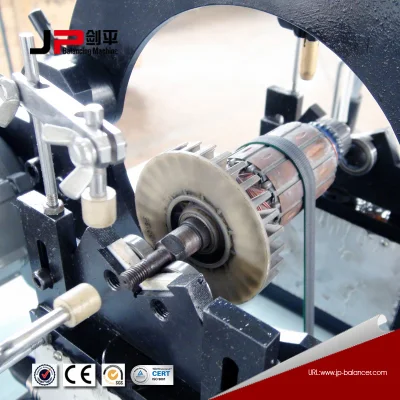

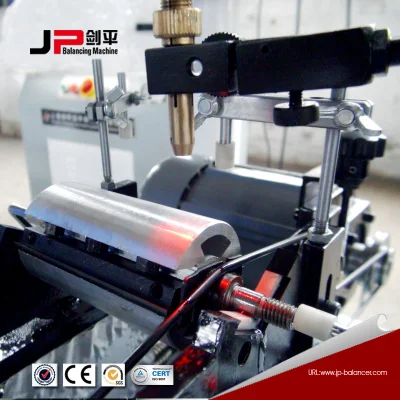

Jp Vacuum Cleaner Brush Roller Belt Drive Balancing Machine
Production Description
Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application
Delivery inspection
Range of Application
Balancing Machine for Car Rotor (PHQ-1.6) is also widely used in balancing rotatable bodies, such as kinds of micro-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency
Factory Outlook
Special Features
The measuring unit employs JP-380 Micro- computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor. The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support modes available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability.
Certificates
Production Parameters
Production Description
Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application
Delivery inspection
Range of Application
Balancing Machine for Car Rotor (PHQ-1.6) is also widely used in balancing rotatable bodies, such as kinds of micro-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency
Factory Outlook
Special Features
The measuring unit employs JP-380 Micro- computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor. The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support modes available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability.
Certificates
Production Parameters
| Technical data at a glance | PHQ-1.6/5 |
| Max Mass of Workpiece (kg) | 1.6/5 |
| Max Diameter of Workpiece (mm) | 260 |
| Distance between Two Support Bearings (mm) | 15-400 |
| Journal Diameter Scope of Workpiece (mm) | 3~40 |
| Diameter Scope of Driving Belt (mm) | 20~85 |
| Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) | 185,335,390,700 Stepless speed regulation |
| Motor Power (kw) | 0.15DC Stepless speed regulation |
| Min Achievable Residual Unbalance Amount (emar) | ≤ 0.3g. mm/kg |
