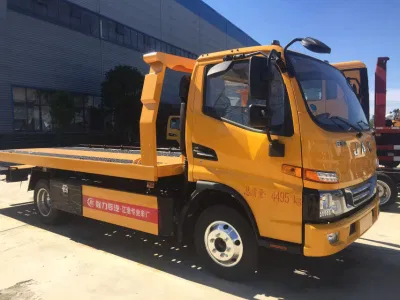

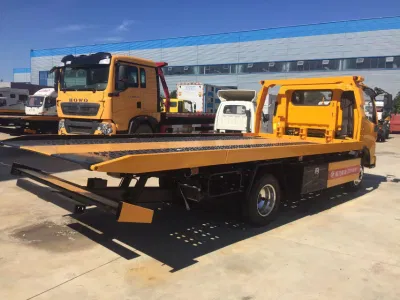

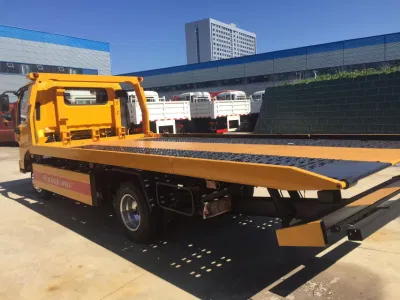

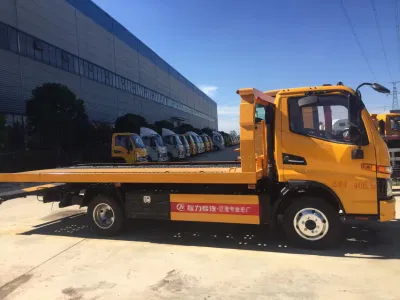

JAC 3T 4T 5T Flat Bed Tilt Tray Wrecker one Tow two Truck
Product Description:
1. Purpose : wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional chassis brand : Howo,Dongfeng,JAC,JMC,Foton,Shacman etc.
3. Spare parts : Italy brand multi-way valve and balance valve; Germany Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate.
4. Capacity range :3ton, 4ton, 5ton,6ton.
5. The customers can choose to install the crane.
| General Technical Parameters | |||
| Overall Dimension | 5995x2300x2235(mm) | ||
| Gross Vehicle Weight | 4495kg | ||
| Curb Weight | 3800kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | JAC | |
| Cabin | Single, Left Hand Driving | ||
| Engine | Model | 6 Cylinders | |
| Power | 130HP | ||
| Emission Standard | EURO II | ||
| Fuel Type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 3T/4.5T | ||
| Wheel Base | 3365(mm) | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/16(°) | ||
| Brake System | oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90 (km/h) | ||
| Superstructure | |||
| Flatbed | Dimensions | 4200x2300 (mm)+1300mm | |
| Max. Loading Weight | 4000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 4000 (kg) | ||
| Length of Steel Cable | 20 (m) | ||
| Hoisting | Rating Under-Pulling Capacity | 3000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars | ||
PRODUCT SHIPPING (RORO OR BULK SHIP)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
