Basic Info.
Model NO.
KLUX-DN25
Application
Energy Metering
Type
Turbine Flow Meter
Measuring Media
Gas
Measuring Principle
Electrical Principles
Measurement Object
Closed Pipeline
Certification
DIN, ANS, GB, ISO, SGS
Output Type
RS485
Transport Package
Wooden Box Package or Carton Package
Trademark
kunkeandao
Origin
Weihai
HS Code
9026100000
Production Capacity
3000 Pieces/Year
Product Description
Hot sale dn200mm stainless steel table body rotary vortex flowmeter with wireless remote transmission
Product Description:
The precession vortex flowmeter is a new type of gas flowmeter with advanced micro-processing technology, strong
function, wide flow range , simple operation and maintenance, convenient installation and use, and its main
technical indicators reach the advanced level of similar foreign products.
Product Features :
1. No mechanical moving parts, not easy to corrode,
stable and reliable, long life, no special maintenance
stable and reliable, long life, no special maintenance
required for long-term operation;
2.16-bit computer chip, high integration , small size,
good performance, strong machine function;
good performance, strong machine function;
3.Intelligent flowmeter integrates flow probe,
microprocessor, pressure and temperature sensor
microprocessor, pressure and temperature sensor
into one.
4.The whole machine has low power consumption
and can be powered by the built-in battery or an
external power supply.
| Nominal diameter(mm) | Flow range(m3/h) | Nominal pressure(MPa) | Pressure loss(kPa) | Accuracy | Repeatability | Case material |
| 15 | 1~7 | 1.6 2.5 4.0 6.3 10.0 16.0 25.0 | △P=ρ/1.205×PN | 1.0 1.5 | Less than 1/3 of the absolute value of the basic error limit | Cast aluminum alloy shell 304 stainless steel housing |
| 20 | 1~18 | |||||
| 25 | 2~30 | |||||
| 32 | 4.5~60 | |||||
| 40 | 6~80 | |||||
| 50 | 10~150 | |||||
| 65 | 18~220 | |||||
| 80 | 28~400 | |||||
| 100 | 50~800 | |||||
| 125 | 80~1000 | |||||
| 150 | 100~2200 | |||||
| 200 | 360~3600 |
Company information:
WEIHAI KUNKE FLOW INSTRUMENT CO.,LTD. is a high-tech enterprise specializing in meter research and development, production, sales and service.
The company was founded in 2010. In 2012, it won the excellent incubation enterprise of Weihai City. It is a high-tech enterprise supported by the Weihai Municipal Government. In 2017, the company was listed as a securities company.
The company has successively obtained ISO9001-2015 international quality system certification, ISO14001-2015 environmental management system certification, OHSAS18001-2007 occupational health and safety management system certification and ISO10012-2003 measurement management system certification, CE certificate.
The company was founded in 2010. In 2012, it won the excellent incubation enterprise of Weihai City. It is a high-tech enterprise supported by the Weihai Municipal Government. In 2017, the company was listed as a securities company.
The company has successively obtained ISO9001-2015 international quality system certification, ISO14001-2015 environmental management system certification, OHSAS18001-2007 occupational health and safety management system certification and ISO10012-2003 measurement management system certification, CE certificate.
Flowmeter installation:
1.When installing the flowmeter, it is strictly forbidden to conduct electric welding directly at the inlet and outlet flanges to avoid burning the internal parts of the flowmeter.
2.The newly installed or overhauled pipeline must be cleaned, and the flowmeter can be installed after removing the debris in the pipeline.
3.The flowmeter should be installed in a place that is convenient for maintenance, without strong electromagnetic field interference, strong mechanical vibration and thermal radiation.
4.Flow meters should not be used in occasions where the flow is frequently interrupted and there is a strong pulsating flow or pressure pulsation.
2.The newly installed or overhauled pipeline must be cleaned, and the flowmeter can be installed after removing the debris in the pipeline.
3.The flowmeter should be installed in a place that is convenient for maintenance, without strong electromagnetic field interference, strong mechanical vibration and thermal radiation.
4.Flow meters should not be used in occasions where the flow is frequently interrupted and there is a strong pulsating flow or pressure pulsation.
Field Application:
Intelligent precession vortex gas flowmeter is widely used in various gas measurement in petroleum,
chemical, electric power, metallurgy, coal and other industries.
Exhibition information:

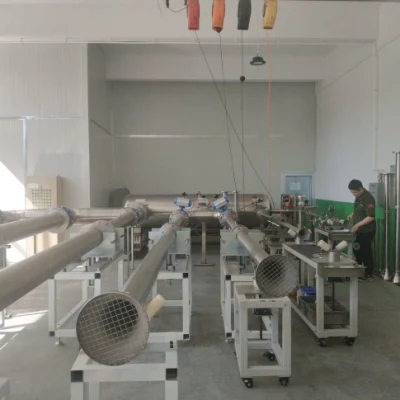

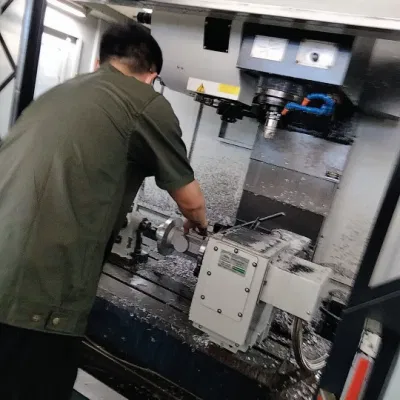

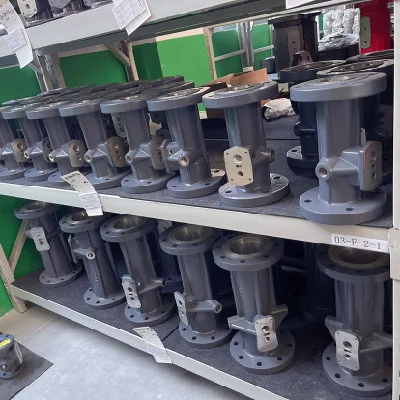

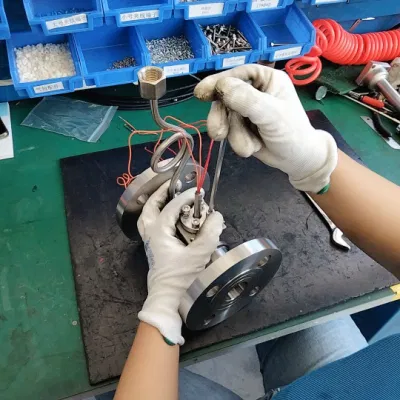

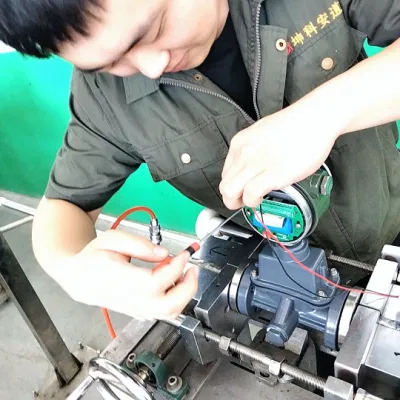

Company style:
Our Patent Certification:
SGS Certification Report:
Form E:
Payment&Delivery:
FAQ:
Q: Are you a manufacturer?
A:We are manufacturer with 13years experience!Welcome to visit our factory at any time.
Q:How about the delivery time ?
A:Around 3-5 working days for standard products. For customized orders, it takes about 10-15 days.
Q:Do you have ISO certificate?
A: Yes, we have ISO, also CE, and Calibrate certificate.
Q: How long is the warranty period for the flow meter?
A:12 months.
