Basic Info.
Model NO.
HMPHF
Filter Connector
PP
Filtration Grade
Medium Filter
Activated Carbon Filter Type
Compact
Gasket/O-Ring
EPDM, Silicone, PTFE Coated or Others
Transport Package
Polybag and Box
Specification
20, 40, 60 Inches
Trademark
Homay
Origin
Zhejiang
HS Code
84219990
Production Capacity
5000PCS/Day
Packaging & Delivery
Package Size
7.00cm * 8.00cm * 102.00cm
Package Gross Weight
4.000kg
Product Description

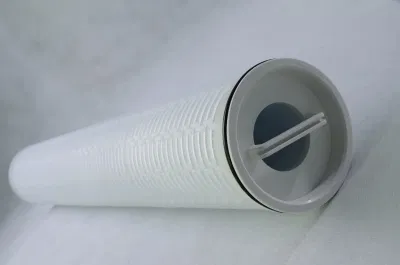

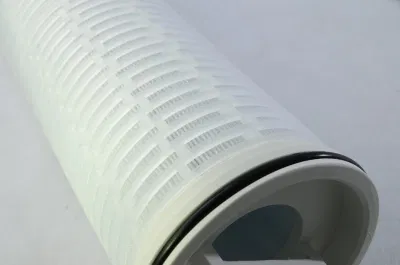

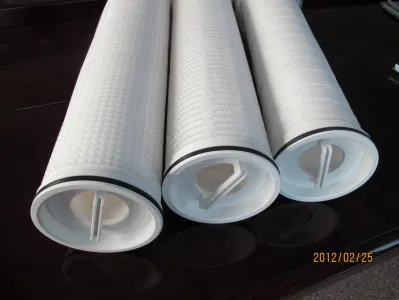

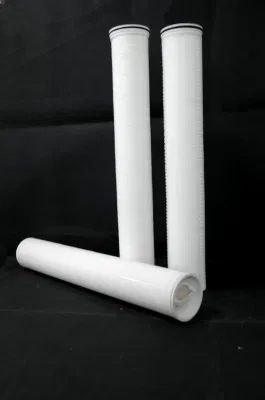

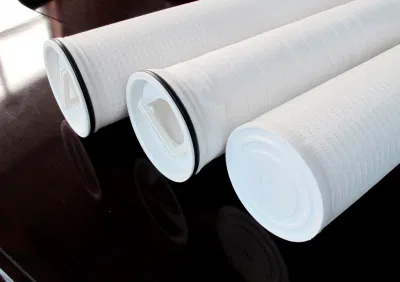

High Performance 40/60 Inches High Flow Filter Cartridge For Industrial Water Treatment
This is one kind of universal high flow filter cartridge.The large diameter with larger filtration area insures to reduce the number of filter cartridges and the dimension of housing required. The long service life and high flow rate result in low investment and less manpower in many applications.
• Higher filtration area even up to 8m³, higher flow capability.
• Higher dirt holding capability, longer service life.
• We can meet different application requirement by designing different layers for the filter stucture.
• Nominal micron rating and absolute micron rating are available.
• Microelectronics
• Sea water desalination
• Food and beverage
• Microelectronics
• Oil & Chemical
• Machinery and equipment
• Power plant water treatment
• Steel mill water treatment
| Media | PP/GF/PTFE/MB | ||
| Shell | PFA | ||
| Max. Operating Temperature | 80ºC | ||
| Max. Operating DP |
|
| Media | Removal Rating | Length | Outside Type | Seal Material | |
| HMPHF | GF = Glass Fiber PN = PP Nominal PA = PP Absolute MB = PP Melt Blown | 0.5 = 0.5μm 1 = 1μm 3 = 3μm 5 = 5μm 10 = 10μm 25 = 25μm 50 = 50μm 70 = 70μm 100= 100μm | 20 = 20" 40 = 40" 60 = 60" | B = Belt C = Cage 6 = SS316L 4 = SS304 | S = Silicone B = Buna E = EPDM V = Viton F = E-FKM |
