Basic Info.
Model NO.
Spare parts
Specification
wooden cases
Trademark
Z. NANCHI
Origin
Hangzhou, China
HS Code
8413604090
Production Capacity
5000pieces/Year
Product Description
Product Description
Z.NANCHI single screw pump is applicable to almost all industries. It can transport almost all types of media continuously and stably, with low pulsation, no shear and speed proportional metering. It can pass through large particle solids.
We have a "WOLF TEAM":
More than 20 years technological research
Integrity, Standardization, and Efficient is our work principles
Winning the market with technology and innovation
Welcome to contact us, we are a professional group, let talk the details with you.
We have a "WOLF TEAM":
More than 20 years technological research
Integrity, Standardization, and Efficient is our work principles
Winning the market with technology and innovation
Welcome to contact us, we are a professional group, let talk the details with you.
Components list
| 101.Stator | 0017 Spring washer | 0068 Hexagon nut |
| 105.Rotor | 0018 Hexagon nut | 1211 Suction chamber |
| 1111 Bearing housing | 0043 Flat washer | 1221 Discharge body |
| 1112 Connecting shaft | 0061 O-ring | 1301 Intermediate shaft |
| 0011 Hexagon bolt | 0062 PTFE gasket | 1311 Bar |
| 0012 Flat washer | 0063 Screw plug | 1312 Leg |
| 0013 Spring washer | 0064 PTFE gasket | 1410 Seal components |
| 0014 Hexagon nut | 0065 Screw plug | 1510 Universal joint parts |
| 0015 Hexagon bolt | 0066 Flat washer | 1610 Reducer |
| 0016 Flat washer | 0067 Spring washer | 1710 Motor |
Nanchi's high-quality original spare parts ensure long-term, sustainable operation of the whole pump, and shorten downtime, save energy consumption and maintenance costs.

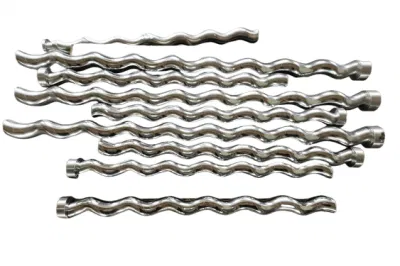

Rotor materials are: tool steel hardening, various stainless steel surface hardening and high performance steels such as Hastelloy and titanium alloy.

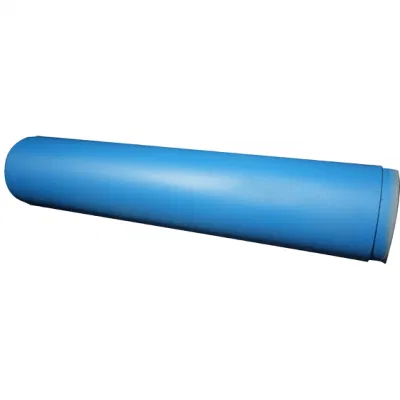

The stators are made of NBR nitrile rubber, NR natural rubber, EPDM EPDM, FPM fluorine rubber, CR, CSN, SBR, silicone rubber or PTFE.
Other special materials are optional.
Below, check the details spare parts of single screw pump:
Any interesting , welcome to choose:https://zjncpump.en.made-in-china.com/product-list-1.html

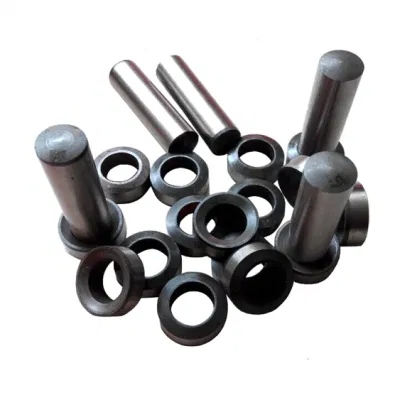

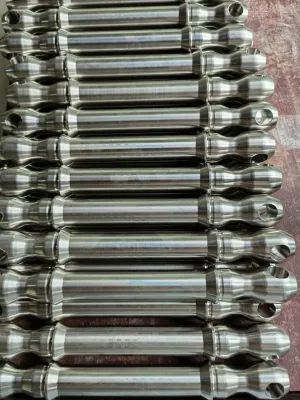

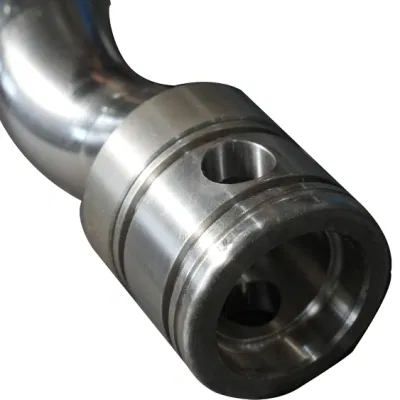

Here, some processing and spare parts, know more about Z.NANCHI
Packing : We use wooden boxes for packaging
We use professional export packaging, wooden boxes. Any requirements on the package, we can talk te details.
We, Z.NANCHI, Welcome to visit us:https://zjncpump.en.made-in-china.com/product-list-1.html
We, Z.NANCHI, Welcome to visit us:https://zjncpump.en.made-in-china.com/product-list-1.html
Z.NANCHI
MAKE EVERYTHING POSSIBLE TO TRANSPORT
