Basic Info.
Model NO.
FK 06
Bearing Block Model
Fk
Model No.
Bk/Bf
Running Mode
Moving
Package
Seal/No Seal
Color
Black/Customized
Radial Clearance
-3um
Transport Package
Wooden Box
Specification
600*300*250
Trademark
ZCF
Origin
China
HS Code
8483200000
Production Capacity
10000000
Product Description
Product Description

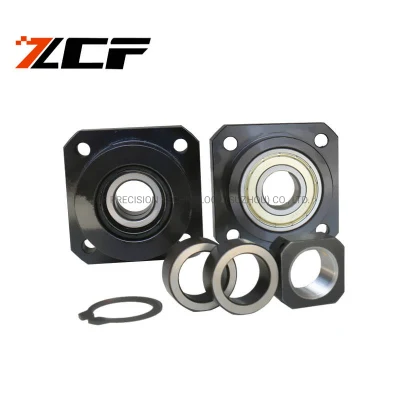

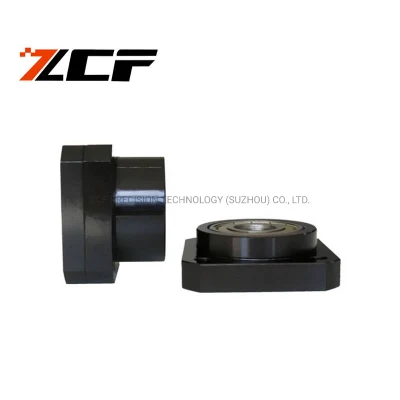

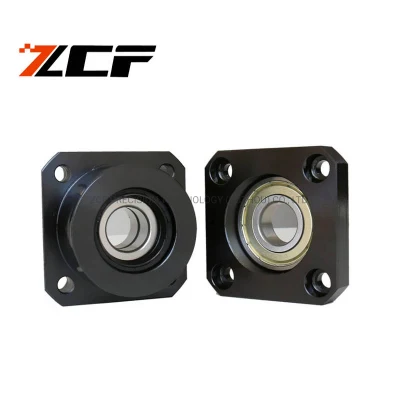

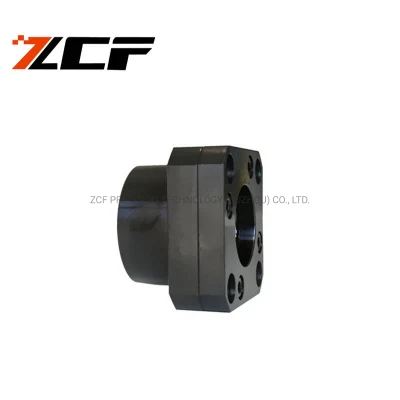

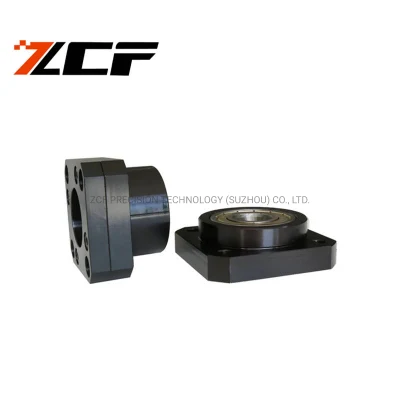

Accuracy C5 bearing housing for ball screw
1. Suggested maching size for fixing end(FK):
1. Suggested maching size for fixing end(FK):
| Model NO. | Outer dia.of ball screw | Bearing part outer dia. | Nominal | |||||
| Type FK | TYPE EK | d | D | B | E | F | M | S |
| FK 06 | EK 06 | 8 | 6 | 4 | 28 | 8 | M6X0.75 | 8 |
| FK 08 | EK 08 | 10/12 | 8 | 6 | 32 | 9 | M8X1 | 10 |
| FK 10 | EK 10 | 12/14/15 | 10 | 8 | 36 | 15 | M10X1 | 12 |
| FK 12 | EK 12 | 14/15/16 | 12 | 10 | 36 | 15 | M12X1 | 12 |
| FK 15 | EK 15 | 18/20 | 15 | 12 | 48 | 20 | M15X1 | 13 |
| FK 17 | - | 20/25 | 17 | 15 | 59 | 23 | M17X1 | 17 |
| FK 20 | EK 20 | 25/28/30 | 20 | 17 | 64 | 25 | M20X1 | 16 |
| FK 25 | - | 30/32/36 | 25 | 20 | 76 | 30 | M25X1.5 | 20 |
| FK 30 | - | 36/40 | 30 | 25 | 73 | 38 | M30X1.5 | 25 |
2. Suggested maching size for supporting end(FF):
| Model No. | Outer dia.of ball screw | Bearing part outer dia. | Bearing part length | Slot of snap ring | ||
| Type: FF | d | A | E | B | F | G |
| FF 06 | 8 | 6 | 9 | 5.7 | 6.8 | 0.8 |
| FF 10 | 12/14/15 | 8 | 10 | 7.6 | 7.9 | 0.9 |
| FF 12 | 14/15/16 | 10 | 11 | 9.6 | 9.15 | 1.15 |
| FF 15 | 18/20 | 15 | 13 | 14.3 | 10.15 | 1.15 |
| FF 17 | 20/25 | 17 | 16 | 16.2 | 13.5 | 1.15 |
| ★FF 20 | 25/28/30 | 20 | 19 (16) | 19 | 15.35 (13.35) | 1.35 |
| FF 25 | 30/32/36 | 25 | 20 | 23.9 | 16.35 | 1.35 |
| FF 30 | 36/40 | 30 | 21 | 28.6 | 17.75 | 1.75 |
3. Parameter of FK series :
| Model no. | d1 | L | H | F | E | Dg6 | A | PCD | B | L1 | T1 | L2 | T2 | X | Y | Z | M | T |
| FK 5 | 5 | 16.5 | 6 | 10.5 | 18.5 | 20 | 34 | 26 | 26 | 5.5 | 3.5 | 5 | 3 | 3.4 | 6.5 | 4 | M3 | 11 |
| FK 6 | 6 | 20 | 7 | 13 | 22 | 22 | 36 | 28 | 28 | 5.5 | 3.5 | 6.5 | 4.5 | 3.4 | 6.5 | 4 | M3 | 12 |
| FK 8 | 8 | 23 | 9 | 14 | 26 | 28 | 43 | 35 | 35 | 7 | 4 | 8 | 5 | 3.4 | 6.5 | 4 | M3 | 14 |
| FK 10 | 10 | 27 | 10 | 17 | 29.5 | 34 | 52 | 42 | 42 | 7.5 | 5 | 8.5 | 6 | 4.5 | 8 | 4 | M3 | 16 |
| FK 12 | 12 | 27 | 10 | 17 | 29.5 | 36 | 54 | 44 | 44 | 7.5 | 5 | 8.5 | 6 | 4.5 | 8 | 4 | M4 | 19 |
| FK 15 | 15 | 32 | 15 | 17 | 36 | 40 | 63 | 50 | 52 | 10 | 6 | 12 | 8 | 5.5 | 9.5 | 6 | M4 | 22 |
| FK 17 | 17 | 45 | 22 | 23 | 47 | 50 | 77 | 62 | 61 | 11 | 9 | 14 | 12 | 6.6 | 11 | 10 | M4 | 24 |
| FK 20 | 20 | 52 | 22 | 30 | 50 | 57 | 85 | 70 | 68 | 8 | 10 | 12 | 14 | 6.6 | 11 | 10 | M4 | 30 |
| FK 25 | 25 | 57 | 27 | 30 | 59 | 63 | 98 | 80 | 79 | 13 | 10 | 20 | 17 | 9 | 15 | 13 | M5 | 35 |
| FK 30 | 30 | 62 | 30 | 32 | 61 | 75 | 117 | 95 | 93 | 11 | 12 | 17 | 18 | 11 | 17.5 | 15 | M6 | 40 |
4. Parameter of FF series :
| Model No. | d1 | L | H | F | Dg6 | A | PCD | B | X | Y | Z |
| FF 06 | 6 | 10 | 6 | 4 | 22 | 36 | 28 | 28 | 3.4 | 6.5 | 4 |
| FF 10 | 8 | 12 | 7 | 5 | 28 | 43 | 35 | 35 | 3.4 | 6.5 | 4 |
| FF 12 | 10 | 15 | 7 | 8 | 34 | 52 | 42 | 42 | 4.5 | 8 | 4 |
| FF 15 | 15 | 17 | 9 | 8 | 40 | 63 | 50 | 52 | 5.5 | 9.5 | 5.5 |
| FF 17 | 17 | 20 | 11 | 9 | 50 | 77 | 62 | 61 | 6.6 | 11 | 6.5 |
| FF 20 | 20 | 20 | 11 | 9 | 57 | 85 | 70 | 68 | 6.6 | 11 | 6.5 |
| FF 25 | 25 | 24 | 14 | 10 | 63 | 98 | 80 | 79 | 9 | 14 | 8.5 |
| FF 30 | 30 | 27 | 18 | 9 | 75 | 117 | 95 | 93 | 11 | 17 | 11 |
