Basic Info.
Fuel
Diesel
Payload
5-6tons
Use
Burnishing
Cleaning Process
Cold Water Cleaning
Condition
New
Chassis
Foton Aumark
Wheelbase
3360mm and 3800mm
Engine
Cummins 141HP
Drive Type
4X2,Right Hand Drive
Transport Package
Nude with Wax
Specification
5995x2300x2570mm
Trademark
CLW
Origin
Suizhou, Hubei Province, China
HS Code
8705909990
Production Capacity
100units/Month
Product Description

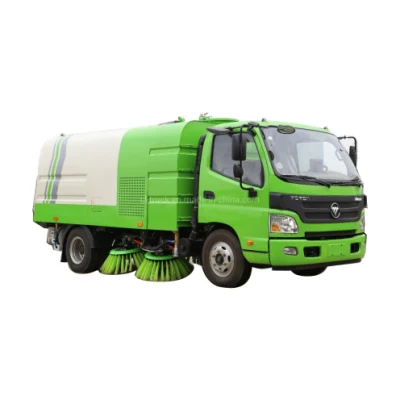

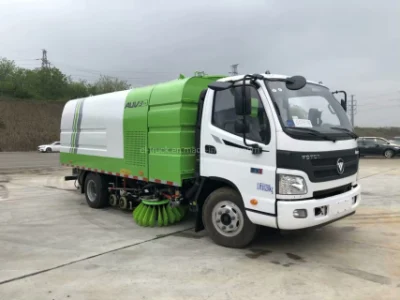

factory selling foton right hand drive rudder small vacuum sweeper truck
Product information
| Vehicle model | AUMARK-C33 | |
| Cabin | Single row/W1995/right rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5875×2030×2230 |
| Wheel base(mm) | 3360 | |
| Weight data | Curb weight(kg) | 2600 |
| Gross vehicle weight(kg) | 6495 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed(km/h) | 95 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | Euro 3 | |
| Displacement(L) | 3.76 | |
| Rated Power(kw/rpm) | 105 | |
| Max torque (N.m/rpm) | 450 | |
| Gearbox | Model | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.2T |
| Rear axle | Type/Mainreducetion ratio | 5.5T/4.11 |
| Suspension | Front suspension/Leaf spring number | 3+1 |
| Rear suspension/Leaf spring number | 6+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Central drum brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1(7.00R16) | |
| Vehicle model | AUMARK-C38 | |
| Cabin | Single row/W1995/right rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6725×2100×2280 |
| Wheel base(mm) | 3800 | |
| Weight data | Curb weight(kg) | 3305 |
| Gross vehicle weight(kg) | 6500 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed(km/h) | 95 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | Euro 3 | |
| Displacement(L) | 3.76 | |
| Rated Power(kw/rpm) | 105 | |
| Max torque (N.m/rpm) | 450 | |
| Gearbox | Model | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.5T |
| Rear axle | Type/Mainreducetion ratio | 6.0T/4.875 |
| Suspension | Front suspension/Leaf spring number | 9 |
| Rear suspension/Leaf spring number | 11+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1(8.25R16) | |
| Tanks | volume | Water tank volume: 1.5 square dustbin volume: 4 square |
| Box body material | Material of tank: stainless steel Dash material: stainless steel | |
| Sub-engine brand and power | I suzu Engine Co. Ltd | |
| Cleaning the width | 2.8-3.0m | |
| Operation ability | 38000(m2/h) | |
| Cleaning speed (km/h) | 15-20 | |
| Cleaning speed (km/h) | 3-15 | |
| Suction capacity | Density (g/cm3) : 2.0 mass (kg) : 1.5 suction particle size (mm) : ≥100 | |
| Garbage box tipping Angle | ≥45° | |
| Cleaning efficiency | ≥96% | |
| The fan system | Special high pressure centrifugal fan, desktop fan (maintenance free) rated working speed 2700r/min | |
| Suction nozzle device | The suction nozzle is suspended between the rear wheels of the chassis car, which is composed of a suction nozzle, a roller and a straw. The suction nozzle body can be moved along with the suction nozzle, and the suction nozzle lifting oil cylinder is controlled. | |
| Scanning plate Angle adjustment | Forward scanning plate: forward 5°~15° outward 5°~10° rear scanning plate: forward 5°~10° inward 5°~10 | |
| Single sweep plate with the number of brushes | 22 | |
| Vice frame | Vice beam at the tank bottom | Q345 carbon steel plate |
1. ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW .Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, garbage truck,sewage suction truck, fuel tank, high-altitude operation truck, truck mounted crane, dump truck, LED advertising truck,LPG truck/trailer,LPG filling tank, van truck, semi-trailer, fire engine, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
3.Quality control: our company truck pass ISO,3C,ASME certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
4. Export market: Africa,Asia,South America,Pacific and so on
5.Our company cooperate with famous chasis manufacturers,such as DONGFENG,SHINOTRUK,FOTON, JAC,JMC ,SHACMAN,FAW and etc.
1.We can product truck accroding the customer's requirments(color,size,logo and so on)
2.We can send our technician to arrive the customer's country to provide the service .
3.We can train customer's workers for free.
4.Our truck warranty:12 months.we can provide the parts for free at the frist year.
2.We can send our technician to arrive the customer's country to provide the service .
3.We can train customer's workers for free.
4.Our truck warranty:12 months.we can provide the parts for free at the frist year.
Q1. Payment term.
T/T ,30% as despite ,and 70% before delivery from factory.
L/C, L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF ,FCA ,DDU.DAP etc .
We mainly do FOB,CIF,DAF
Q3. Delivery time
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
(if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .)
Q4. Quality and warranty
We have Rich experience workers and engineer to control quality before and on production , we strictly follo STATE special trucks technical specification and safety production specification . we 100% test trucks before delivery.
Our Warranty :12 months
We will provide the spare parts for free in one year.
Q5. How to trust us ?
You browse products by made-in-china website,our company pass BV factory audit. And you also can arrange a third party inspect our factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.
Q6.Visit our factory
Our factory are in suizhou city,hubei province, china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province,near our factory) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
