Basic Info.
Model NO.
silicon carbide
Type
O-Ring Mechanical Seals
Balance
Balanced
Function
for Pump, Compressor
Certificate
ISO9001
Transport Package
Carton
Specification
as requirement
Trademark
JR
Origin
China
HS Code
848420090
Production Capacity
1000000PCS/Year
Product Description
Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.

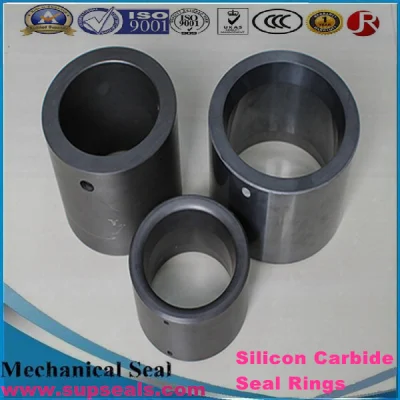

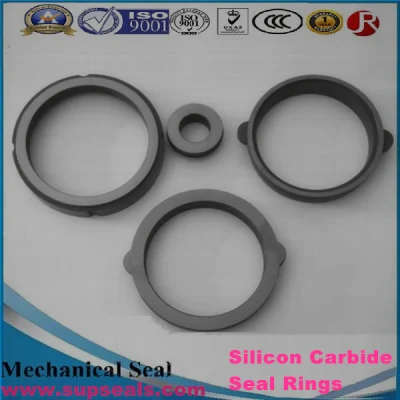

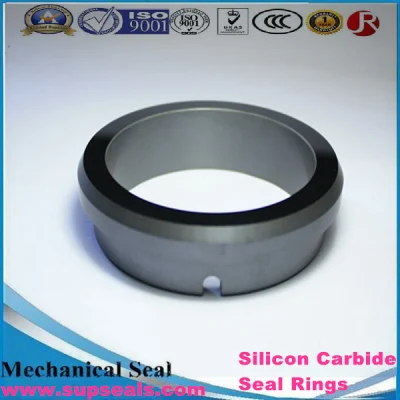

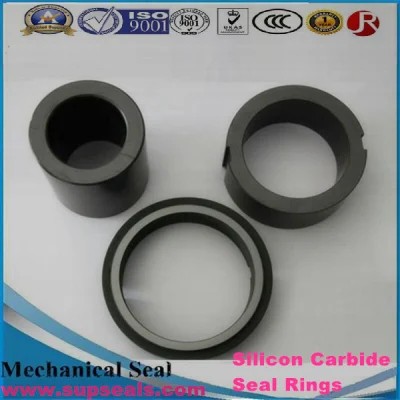

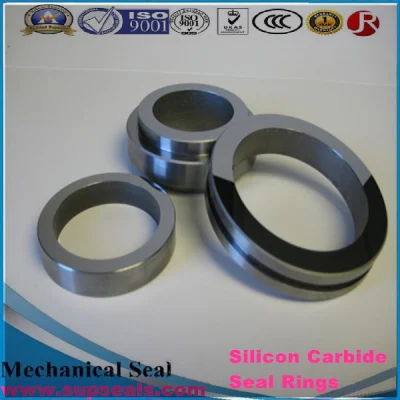

Mechanical SIC Seal Ring/Silicon Carbide Ring
Silicon Carbide SSIC RBSIC ring M7N G9 L DA TYPE
Description:
Applications:
1.pumps, mixers, blenders, agitators, refrigeration compressors, blowers, fans,
and other rotary shaft equipment
2.pulp and paper, food processing, water, wastewater, refrigeration, chemical processing,
and other demanding applications.
Polished and precision silicon Carbide Seal Ring
Excellent corrosion resistance, high coefficient of heat conductivity, self-lubricity, low density high hardness and also provide customized production.
1.Introduction of Polished and precision silicon Carbide Seal Ring :
Sic seal rings main performance as belows:
Mechanical seal could be interchangeable with John crane,
Aesseal, Vulcan, Roten seals etc.
All ranges of mechanical seals for Flygt Pumps, Grf Pumps,
Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,
Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or
drawing, and design as your request.
With advanced designer&manufacturer of machanical seal, for industrial pump,
its range involves in: industrial pump mechanical seal, mixer and agitator seal,
cartridge seal, metal bellows seal, auto cooling pump seal and suto air-condition compressor lip seal.
It is widely used and highly reliable in food, drink, petroleum, chemistry,
refinery, paper making, pharmacy, power and auto industry etc.
Characteristics:
High and low temperature resistant, acid-alkali resistant, ozone resistant, aging resistant, weather resistant, good
insulation property, anti-toxic, good air-permeable, etc.
Welcome to quote for more details.
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to
Ningbo or Shanghai airport directly. All our clients, from home or abroad,
are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to q
uality controlling from the very beginning to the very end.
Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal
or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps,
Compound & homogeneous pumps, Homogeneous & emulsification pumps
and so on. Please kindly visit our website: supseals.en.made-in-china.com
Mechanical SIC Seal Ring/Silicon Carbide Ring
Silicon Carbide SSIC RBSIC ring M7N G9 L DA TYPE
Description:
Applications:
1.pumps, mixers, blenders, agitators, refrigeration compressors, blowers, fans,
and other rotary shaft equipment
2.pulp and paper, food processing, water, wastewater, refrigeration, chemical processing,
and other demanding applications.
Polished and precision silicon Carbide Seal Ring
Excellent corrosion resistance, high coefficient of heat conductivity, self-lubricity, low density high hardness and also provide customized production.
1.Introduction of Polished and precision silicon Carbide Seal Ring :
Sic seal rings main performance as belows:
Item | Unit | Sic | SSIC |
| Purity | % | ≥90 | ≥98 |
| Density | g/cm3 | 3.05 | 3.1 |
| Shore Hardness | HS | 110-125 | 120-130 |
| Elastic Modulus | MPa | 4.12x105 | 4.10x10s |
| Poisson Ratio | 0.15 | 0.16 | |
| Tensile Strength | MPa | 2.75x102 | 2.8x102 |
| Bending Strength | MPa | 4.41x102 | 4.9x102 |
| Compression Strength | MPa | 2.94x103 | 3.0x102 |
| Thermal Conductivity | W/m.k | 141 | 147 |
Coefficient of Thermal Expansion | l/ºC | 4.3x10-6 | 4.0x10-6 |
| Heat Resistance | 1600C | 165CTC | |
| Thermal Impact Coefficient | cal/cm.sec | 46.5 | 200 |
| Tolerance | mm | -0.02--+0.02 | -0.02--+0.02 |
| Acid Resistance | 5 times higher than the usual TC | Resist al chemical media |
Mechanical seal could be interchangeable with John crane,
Aesseal, Vulcan, Roten seals etc.
All ranges of mechanical seals for Flygt Pumps, Grf Pumps,
Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,
Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or
drawing, and design as your request.
With advanced designer&manufacturer of machanical seal, for industrial pump,
its range involves in: industrial pump mechanical seal, mixer and agitator seal,
cartridge seal, metal bellows seal, auto cooling pump seal and suto air-condition compressor lip seal.
It is widely used and highly reliable in food, drink, petroleum, chemistry,
refinery, paper making, pharmacy, power and auto industry etc.
Characteristics:
High and low temperature resistant, acid-alkali resistant, ozone resistant, aging resistant, weather resistant, good
insulation property, anti-toxic, good air-permeable, etc.
Welcome to quote for more details.
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to
Ningbo or Shanghai airport directly. All our clients, from home or abroad,
are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to q
uality controlling from the very beginning to the very end.
Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal
or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps,
Compound & homogeneous pumps, Homogeneous & emulsification pumps
and so on. Please kindly visit our website: supseals.en.made-in-china.com
