Basic Info.
Model NO.
LUY130D-7
Installation Type
Movable Type
Type
Single Screw Compressor
Trademark
D Miningwell
Origin
Zhejiang, China
Production Capacity
15 Sets Per Month
Product Description
Application

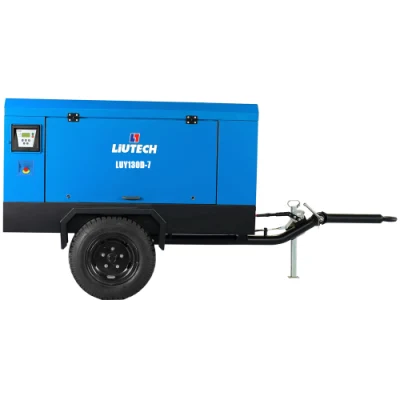

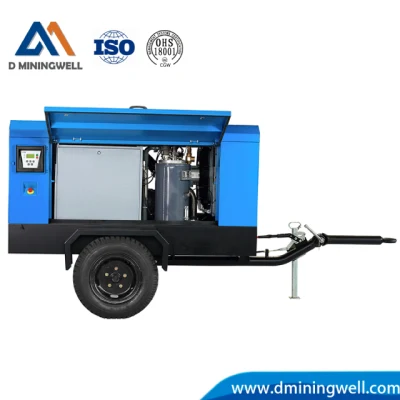

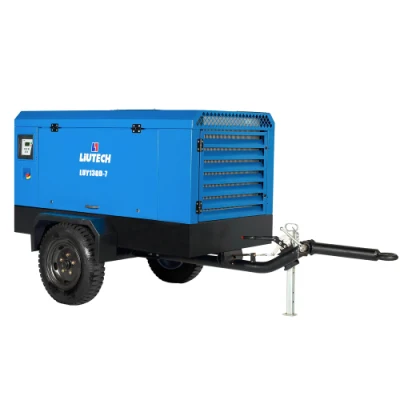

Liutech is wholy-owned subsidiary of Atlas Copco,it's air compressor driven by diesel engine and electricity, it's 90% spare parts originally imported from Atlas Copco,so the liutech portable screw air compressor are Europen quality, Chinese price
Characteristics--High efficiency
The combination of a high efficient engine and the Atlas Copco compressor element guarantees high efficiency and reduced wear.
Low operational cost, high fuel autonomy
A stepless and fully automatic regulator varying the engine speed ensures a reduced power and fuel consumption.
We are agent of portable double screw air compressor of Atlas Copco,Sullair, Liutech,by which ,we can provide drilling rig users with high quality professional drill rig air compressor solution and relative after-sales service also.
Service
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on
Liutech is wholy-owned subsidiary of Atlas Copco,it's air compressor driven by diesel engine and electricity, it's 90% spare parts originally imported from Atlas Copco,so the liutech portable screw air compressor are Europen quality, Chinese price
Characteristics--High efficiency
The combination of a high efficient engine and the Atlas Copco compressor element guarantees high efficiency and reduced wear.
Low operational cost, high fuel autonomy
A stepless and fully automatic regulator varying the engine speed ensures a reduced power and fuel consumption.
We are agent of portable double screw air compressor of Atlas Copco,Sullair, Liutech,by which ,we can provide drilling rig users with high quality professional drill rig air compressor solution and relative after-sales service also.
| Model | Nominal volume flow m3/min(CFM) | Working Pressure bar/psi | Engine | Outlet Valve Configuration |
| LUY025-7 | 2.5/88 | 7/102 | KUBOTA D1105 | 2*G3/4 |
| LUY055-7 | 5.3/187 | DEUTZ D2011L03 | 3*G3/4 | |
| LUY079-7 | 7.9/275 | 4BT3.9C80 | 3*G3/4 1*G1 1/2 | |
| LUY085-14 | 8.5/300 | 14/204 | 4BT3.9-C130 | 3*G3/4 1*G1 1/2 |
| LUY100-10 | 10/350 | 10/146 | 4BT3.9-C130 | 3*G3/4 1*G1 1/2 |
| LIU100-12 | 10/350 | 12/175 | 4BT3.9-C130 | 3*G3/4 1*G1 1/2 |
| LUY108-7 | 10.8/380 | 7/102 | 4BT3.9-C130 | 3*G3/4 1*G1 1/2 |
| LUY118-7 | 11.8/400 | 7/102 | 4BT3.9-C125 | 3*G3/4 1*G1 1/2 |
| LUY120-14 | 12/424 | 14/203 | 6BTA5.9-C180 | 3*G1 1/4 1*G2 |
| LUY161-14 | 16.5/582 | 14/203 | 6CTA8.3-C230 | 3*G1 1/4 1*G2 |
| LUY184-12 | 18.4/650 | 12/174 | 6CTA8.3-C230 | 3*G1 1/4 1*G2 |
| LUY202-10 | 21.2/748 | 10/145 | 6CTA8.3-C230 | 3*G1 1/4 1*G2 |
| LUY214-9 | 21.4/756 | 8.6/125 | 6CTA8.3-C230 | 3*G1 1/4 1*G2 |
| LUY239-7 | 23.9/844 | 7/102 | 6CTA8.3-C230 | 3*G1 1/4 1*G2 |
| LUY208-14 | 21.8/769 | 14/203 | 6LTAA8.8-C315 | 3*G1 1/4 1*G2 |
| LIUY230-12 | 23/812 | 12/174 | 6LTAA8.8-C315 | 3*G1 1/4 1*G2 |
| LUY250-10 | 25/883 | 10/145 | 6LTAA8.8-C315 | 3*G1 1/4 1*G2 |
| LUY270-9 | 27/954 | 8.6/125 | 6LTAA8.8-C315 | 3*G1 1/4 1*G2 |
| LUY290-9 | 29/1024 | 8.6/125 | 6LTAA8.8-C315 | 3*G1 1/4 1*G2 |
| LUY180-19 | 18/636 | 19/276 | 6CTAA8.3-C260 | 1*G2 1*G3/4 |
| LUY215-21 | 21.8/769 | 21/306 | 6CTAA8.8-C315 | 1*G2 1*G3/4 |
| LUY231-17 | 23.1/816 | 17/247 | 6CTAA8.8-C315 | 1*G2 1*G3/4 |
| LUY130-17 | 13/460 | 17/246.5 | 6BTAA5.9-C205 | 1*G2 1*G3/4 |
| LUY180-19 | 18/636 | 19/276 | 6CTAA8.3-C260 | 1*G2 1*G3/4 |
| LUY215-21 | 21.8/769 | 21/306 | 6CTAA8.8-C315 | 1*G2 1*G3/4 |
| LUY231-17 | 23.1/816 | 17/247 | 6CTAA8.8-C315 | 1*G2 1*G3/ |
Service
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on
