Basic Info.
Model NO.
HF
O-Ring
EPDM/NBR/Viton/E-FKM
Media
PP
Removal Rating
0.5, 1, 3, 5, 10, 20, 40, 70, 100 μm
Flow Pattern
Outside to Inside
Warranty of Core Components
1 Year
Brand Name
Blueflo
Transport Package
Polybag+Individual Box+Master Carton for High Flow
Trademark
Darlly
Origin
Hangzhou
HS Code
84219990
Production Capacity
1200PCS/Day
Product Description

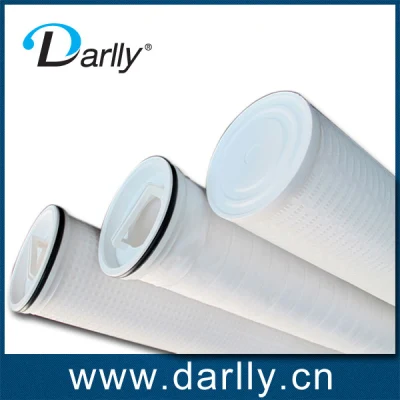

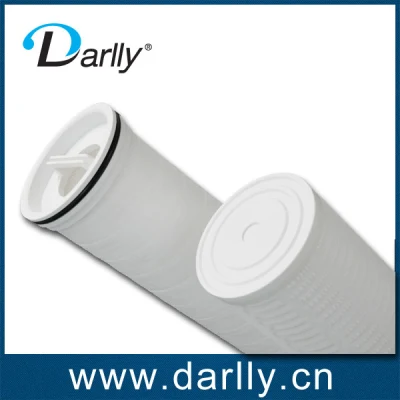

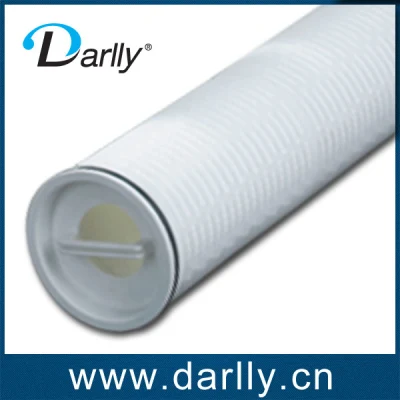

High Flow Pleated Filter Cartridge
High Flow Pleated Filter Cartridge is made from depth fine PP non- woven fabrics. The filter has a big diameter of 6 inch/152mm and no inner core, single open.The inside to outside flow pattern ensure that all the particles will be intercepted at the inside of the filter.The long service life and high flow rate result in low investment and
less manpower in many applications.
FEATURES
1.High filtration area, high flow rate
2. High dirt holding capacity, long service life
3.With depth fine non-woven fabrics and scientific design, the filter has a good structure which has high dirt holding capacity, and result in long service life.
4. Much micron ratings and lengths for choosing Micron ratings from 0.5μm to 100μm, and lengths from 20" to 60", which can meet different requirements.
APPLICATIONS
Sea water desalination
Food and beverage
Microelectronics
Oil & Chemical
Machinery & Equipment
Power plant water treatment
Steel mill water treatment
PRODUCT SPECIFICATION
Dimension
[ OD ]:152mm
[ Length ]:20 ",40 ",60 "
Material of Construction
[ Media ]:PP
[ Cage / Core / End cap ]:PP
[ Sealing ]:Silicone,EPDM,Viton®,E-FKM
Performance
[ Max. Operating temperature ]:80ºC
[ Max. Operating DP ]:3 bar@ 21ºC
ORDERING INFORMATION
| Media | PP |
| Removal Rating | 1/3/5/10/20/40/70/100 μm |
| Length | 20/40/60 inch |
| Seal Material | Silicone/ EPDM/Viton/E-FKM |
| Core | no core/PP core |
