Basic Info.
Model NO.
MHFB
Length
20/40/60"
Material
PP Pleated/PP Melt Blown/Pleated Glass Fiber
O-Ring
Silicone/EPDM/Viton/E-FKM
Warranty of Components
1 Year
Transport Package
Export Standard Packing
Specification
0.5um, 1um, 3um, 10um, 20um, 40um, 70um, 100um
Trademark
Darlly
Origin
Hangzhou
HS Code
84219990
Production Capacity
100 Piece/Pieces Per Day
Product Description

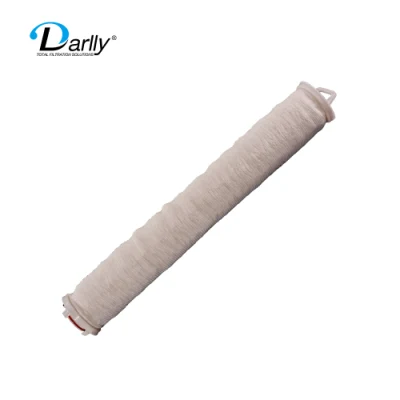

MHFB Series High Flow Pleated Filter Cartridge
MHFB Series High Flow Pleated Filter Cartridge is made from depth fine PP non- woven fabrics. The filter has a big diameter of 6.5 inch/165mm. With horizontal pleat technology the filter has max. Filtration area compare with same size filters.Big filtration area comes out high flow rate.The long service life and high flow rate result in low
investment and less manpower in many applications.
FEATURES
- Horizontal pleat, high filtration area, high flow rate
- High dirt holding capacity, long service life
- Much micron ratings and lengths for choosing
APPLICATIONS
Sea water desalination
Food and beverage
Microelectronics
Oil & Chemical
Machinery & Equipment
Power plant water treatment
Steel mill water treatment
PRODUCT SPECIFICATION
Dimension
[ OD ]:165mm
[ Length ]:20 ",40 ",60 "
Material of Construction
[ Media ]:PP
[ Cage / Core / End cap ]:PP
[ Sealing ]:Silicone,EPDM,Viton®,E-FKM
Performance
[ Max. Operating temperature ]:80ºC
[ Max. Operating DP ]:3 bar@ 21ºC
ORDERING INFORMATION
Media G = PP
Removal Rating
0.5 = 0.5μm
1 = 1μm
3 = 3μm
5 = 5μm
10 = 10μm
20 = 20μm
40 = 40μm
70 = 70μm
100 =100μm
End cap type
A = In-line handle and big outlet
B = Cross handle and small outlet
Length
20 = 20"
40 = 40"
60 = 60"
Seal Material
S = Silicone
E = EPDM
V = Viton®
