Basic Info.
Product Description
Rated power | Engine | Alternator | Control panel |
20kw~1300kw | Cummins | Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators | Deepsea ComAp Harsen Smartgen |
8kw~1600kw | Perkins | ||
68kw~504kw | Volvo | ||
20kw~500kw | Deutz | ||
220kw-2400kw | MTU | ||
280kw-800kw | MAN | ||
600kw-1800kw | Mitsubishi | ||
50kw-650kw | Doosan Daewoo | ||
2kw~2500kw | Chinese engines |
With Cummins Engine Diesel Power electricity generator
Our company can provide genuine genset with very competitive price and comprehensive technical support Super Silent Diesel Generator With Ats.

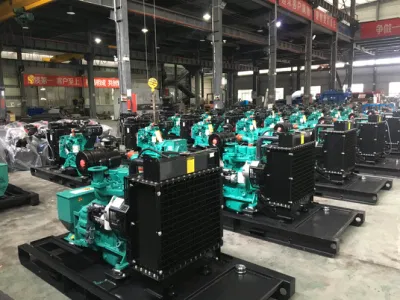

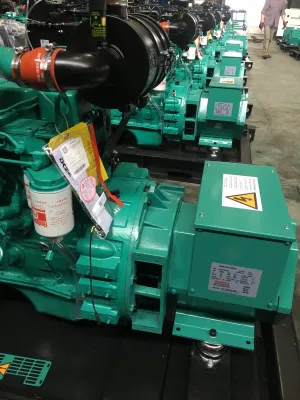

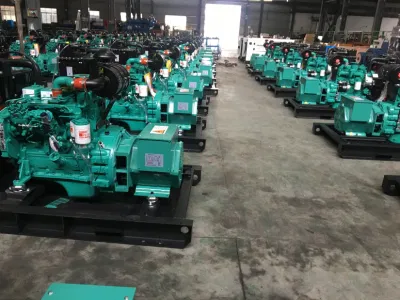

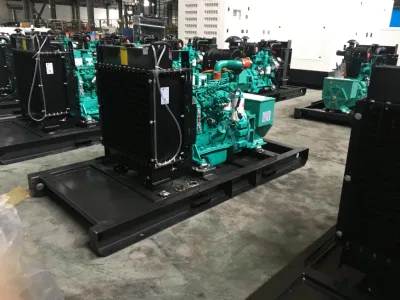

ΔPRODUCT PHOTO
Δ TECHNICAL DATA
| Genset Model | GF3-200 |
| Prime power (50Hz) | 160KW/200KVA |
| Standby power (50Hz) | 176KW/220KVA |
| Frequency/Speed | 50Hz/1500rpm |
| Voltage | 240V/415V |
| Phase | Three phase, four wires |
| Manufacturer | GENLITEC POWER EQUIPMENT CO., LTD. |
| Engine model | Cummins 6CTAA8.3-G2 |
| Alternator model | Stamford UCI274H |
| Controller model | DSE6120 |
| ENGINE DATA | |
| Manufacture | CUMMINS (DCEC) |
| Model | 6CTAA8.3-G2 |
| Engine speed | 1500RPM |
| Engine power (Net) | 173kWm/232BHP |
| Engine power (Gross) | 193kWm/259BHP |
| Number of cylinders | 6 |
| Engine type | 4-stroke, In-line |
| Aspiration | Turbocharged |
| Combustion system | Direct injection |
| Compression ratio | 17.3:1 |
| Bore and Stroke | 114 x 135mm |
| Displacement | 8.3 Liters |
| Fuel system | PT Type Fuel Pump, EFC |
| Cooling system | Water cooled |
| Coolant Capacity | 12.0L (Engine Only) |
| Speed-droop | 5% |
| Governor Type | Eletronic |
| Starting system | DC24V |
| FUEL CONSUMPTION | ||
| Engine speed | Fuel consumption | |
| g/kw.h | L/H | |
| Standby power | N/A | 64 |
| Prime power | N/A | 56 |
| 75% of prime power | 216g/kw.h | 41 |
| 50% of prime power | 222g/kw.h | 28 |
| ALTERNATOR DATA | |
| Manufacture | STAMFORD Co., Ltd. |
| Model | UCI274H |
| Output power | 160KW/200KVA |
| Number of phase | 3 |
| Power factor (Cos Phi) | 0.8 |
| Altitude | ≤1000m |
| Over speed | 2250RPM |
| Number of pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ±0.5% |
| Sustained short circuit current | 300% (3 IN): 10s |
| Total harmonics (TGH/THC) | <4% |
| Wave form: NEMA = TIF | <50 |
| Wave form: I.E.C = THF | <2% |
| Bearing | Single |
| Coupling | Direct |
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GFC30 | 20 | 25 | 24 | 30 | 4B3.9-G | ≤229 | 4 | 3.9 | 102*120 |
| GFC35 | 24 | 30 | 28 | 35 | 4BT3.9-G | ≤214 | 4 | 3.9 | 102*120 |
| GFC56 | 40 | 50 | 45 | 56 | 4BTA3.9-G | ≤215 | 4 | 3.92 | 102*120 |
| GFC63 | 45 | 56 | 50 | 63 | 4BTA3.9-G | ≤215 | 4 | 3.92 | 102*120 |
| GFC70 | 50 | 63 | 56 | 70 | 6BT5.9G1 | ≤215 | 6 | 5.88 | 102*120 |
| GFC106 | 78 | 98 | 85 | 106 | 6BT5.9G | ≤215 | 6 | 5.88 | 102*120 |
| GFC125 | 90 | 113 | 100 | 125 | 6BT5.9G2 | ≤215 | 6 | 5.88 | 102*120 |
| GFC150 | 104 | 130 | 120 | 150 | 6BT5.9G2 | ≤215 | 6 | 5.88 | 102*120 |
| GFC165 | 120 | 150 | 132 | 165 | 6CTA8.3-G2 | ≤210 | 6 | 8.3 | 114*135 |
| GFC200 | 140 | 175 | 160 | 200 | 6CTA8.3-G2 | ≤210 | 6 | 8.3 | 114*135 |
| GFC225 | 160 | 200 | 180 | 225 | 6CTAA8.3-G2 | ≤210 | 6 | 8.3 | 114*135 |
| GFC275 | 200 | 250 | 220 | 275 | 6LTAA8.9-G2 | ≤210 | 6 | 8.3 | 114*135 |
| GFC313 | 220 | 275 | 250 | 313 | NTA855-G1A | ≤206 | 6 | 14 | 140*152 |
| GFC350 | 250 | 313 | 275 | 350 | NTA855-G2 | ≤207 | 6 | 14 | 140*152 |
| GFC400 | 280 | 350 | 310 | 400 | NTA855-G4 | ≤208 | 6 | 14 | 140*152 |
| GFC413 | 300 | 375 | 330 | 413 | NTAA855-G7 | ≤206 | 6 | 14 | 140*152 |
| GFC450 | 320 | 400 | 360 | 450 | NTAA855-G7A | ≤206 | 6 | 14 | 140*152 |
| GFC500 | 360 | 450 | 400 | 500 | KTA19-G3 | ≤203 | 6 | 18.9 | 159*159 |
| GFC550 | 400 | 500 | 440 | 550 | KTA19-G4 | ≤203 | 6 | 18.9 | 159*159 |
| GFC605 | 440 | 550 | 484 | 605 | KTAA19-G6 | ≤204 | 6 | 18.9 | 159*159 |
| GFC625 | 450 | 563 | 500 | 625 | KTAA19-G7 | ≤204 | 6 | 18.9 | 159*159 |
| GFC700 | 500 | 625 | 560 | 700 | KTA38-G | ≤206 | 12 | 37.8 | 159*159 |
| GFC712 | 520 | 650 | 570 | 712 | QSK19-G3 | ≤206 | 6 | 19 | 159*159 |
| GFC800 | 580 | 720 | 640 | 800 | KTA38-GA | ≤209 | 12 | 37.8 | 159*159 |
| GFC825 | 600 | 750 | 660 | 825 | KTA38-G2 | ≤210 | 12 | 37.8 | 159*159 |
| GFC888 | 640 | 800 | 710 | 888 | KTA38-G2B | ≤210 | 12 | 37.8 | 159*159 |
| GFC975 | 720 | 900 | 780 | 975 | KTA38-G2A | ≤210 | 12 | 37.8 | 159*159 |
| GFC1075 | 800 | 1000 | 860 | 1075 | KTA38-G5 | ≤202 | 12 | 37.8 | 159*159 |
| GFC1375 | 1000 | 1250 | 1100 | 1375 | KTA50-G3 | ≤215 | 16 | 50.3 | 159*159 |
| GFC1375 | 1100 | 1375 | 1310 | 1650 | KTA50-G8 | ≤215 | 16 | 50.3 | 159*159 |
| GFC1650 | 1200 | 1500 | 1340 | 1675 | KTA50-GS8 | ≤215 | 16 | 50.3 | 159*159 |
| GFC1675 | 1350 | 1688 | 1500 | 1875 | QSK60-G3 | ≤215 | 16 | 60 | 159*159 |
| GFC1875 | 1500 | 1875 | 1650 | 2063 | QSK60-G3 | ≤215 | 16 | 60 | 159*190 |
| GFC2063 | 1600 | 2000 | 1800 | 2250 | QSK60-G4 | ≤215 | 16 | 60 | 159*190 |
Product Description
Δ GENSET FEATURES
1. Genuine Cummins industrial diesel engine
2. Radiator 40°C max, fans are driven by belt, with safety guard
3. Genuine stamford. Leroy somer, marathonm, YABO alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber

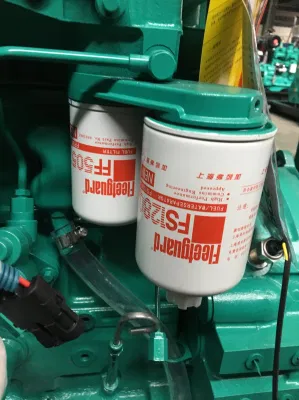

7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards
15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Δ ENGINE FEATURES
1. Genuine Cummins industrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Δ ALTERNATOR FEATURES
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Yabo
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Δ DIGITAL CONTROL PANEL
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
| Exhaust silencer | Flexible pipes | Flange | Base frame | Main circuit breaker |
| Starting battery | Battery wires | Battery charger | Float battery charger | AVR |
| Cooling radiator | Wires diagram | Manual books | Auto control panel | Silent canopy |
Δ OPTIONAL PARTS
| Engine & Radiator | Alternator part | Electric part | Fuel tank part | Others |
| Water preheater | PMG | ATS | External daily fuel tank | Weatherproof canopy |
| Lub oil pre-heater | Anti-condensation heater | Synchronization panel | Automatic fuel pump | Mobile trailer |
| Spare parts | Parallel droop | ABB breaker | Oil drain pump | Containerized |
Δ FAQ (FREQUENCY ASKED QUESTION)
Question: What's your warranty period?
Answer: Our payment terms is 1 year or 1000 running hours whichever comes first.
But based on some special project, we can extended our warranty period.
Question: Does your generators has global warranty?
Answer: Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service.
And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
Question: Do you accept OEM/ODM service?
Answer: Yes, we can accept OEM & ODM service.
Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment.
Or 100% irrevocable confirmed L/C at sight.Question: What's your delivery time?
Answer: Our normal delivery time is 15 - 25 working days.
But if your order is some special engine and alternator, then the delivery time is longer.
Question: What's the MOQ?
Answer: 1 Set
