Basic Info.
Model NO.
0330D010BNHV
Trademark
Z&L
Origin
Hebei. China
Production Capacity
1000000000 Piece/Pieces Per Week
Product Description

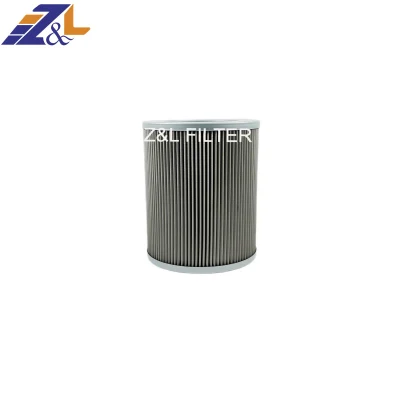

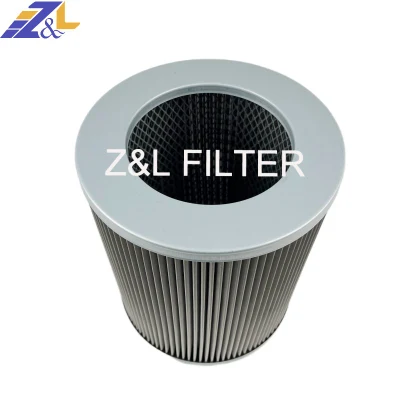

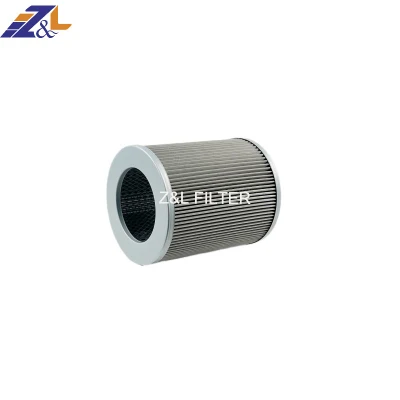

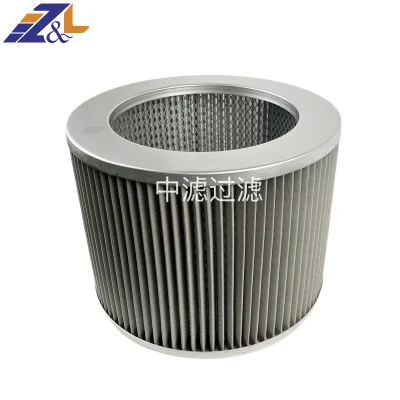

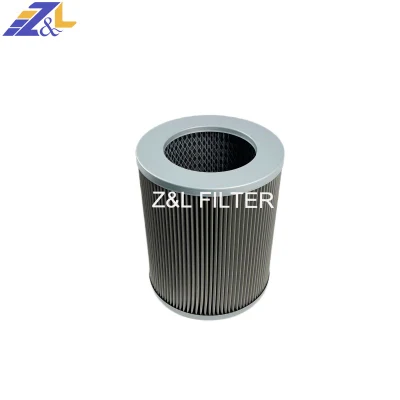

Z&L FILTER replace hydraulic oil filter cartridge 0330D010BNHV,0330 series,pressure oil filter element
Product details
Element series:0330 series
Efficiency:99.99%
Construction:Cartridge Filter
Place of Origin:HEBEI. CHINA
Brand Name:Z&L FILTER
HEIGHT: 12 IN
OD:3 IN
Weight: 5KG:
Type:excavator ,drilling machinery ,laoding machinery,generator oil filtration
Material:glass fiber
Certification:ISO2009:2015
Filtration micron: 10 micron
Filtration efficiency : 98%
Working pressure (PSI) : 305
Low operating temperature (F) : -13
High operating temperature (F) : 248
Flow: from outside to inside
Material of gasket: nitrile rubber
Fluid type: HH/ HL/ HM/ HV/ HFD
Accuracy: 10 microns
Product Description
Product performance
Z&L FILTER replace hydraulic oil filter cartridge 0330D010BNHV,0330 series,pressure oil filter element
Packaging & Shipping
Related Series No. List
Detailed Image
Our Service:
Service Provide:
OEM ODM & OBM service, printing or logo information is acceptable.
Quality Guarantee:
All products have to pass strict inspection before they go out. If any problems caused by the
product itself, we will supply you the new replaced ones ASAP.
After-sales Service:
Any problems caused by using our products:
1) Keep the problem products and timely contact with us for better feedbacks.
2) Please do not damage problem products, if necessary, Send the
products and the attached oil and the coolant sample together to us for better analyzing
3) Attached with repair document, parts list, labor costs and any other materials which
can support a claim for compensation.
Why Choose Us?
Image for onsite workshop
Our clinets
if more details ,please search z&l filter on google !
Product details
Element series:0330 series
Efficiency:99.99%
Construction:Cartridge Filter
Place of Origin:HEBEI. CHINA
Brand Name:Z&L FILTER
HEIGHT: 12 IN
OD:3 IN
Weight: 5KG:
Type:excavator ,drilling machinery ,laoding machinery,generator oil filtration
Material:glass fiber
Certification:ISO2009:2015
Filtration micron: 10 micron
Filtration efficiency : 98%
Working pressure (PSI) : 305
Low operating temperature (F) : -13
High operating temperature (F) : 248
Flow: from outside to inside
Material of gasket: nitrile rubber
Fluid type: HH/ HL/ HM/ HV/ HFD
Accuracy: 10 microns
Product Description
| Filter media - | fully synthetic composite. |
| End caps - | Electrostatic-Coating, Seepage zinc plate, Galvanized (ASTM A653, 60G TST, both sides) or stainless steel. |
| In / Out Liner - | Electrostatic-Coating, Seepage zinc plate, Galvanized (ASTM A653, 60G TST, both sides) or stainless steel. |
| Potting - | Media shall be permanently and completely bonded to the end caps with Polyurethane or Plastisol or epoxy sealant. |
| Gasket - | Seamless EPDM rubber (ethylene propylene diene monomer rubber - ASTM D1418) or molded in place urethane or polyisoprene sponge rubber. |
| Pleats are to | be stabilized by hot-melt adhesive on both inner and outer cores. |
| Filters are to have | polyester coalescing wrap (per-filter) pre-installed by the manufacturer. |
| Efficiency - | F9. Minimum 99.9% (HEPA). |
| Hydrophobic | (water proof), moisture proof, Antiflaming. |
| Salt Repellent - | must remove 99.5% of all salt crystals from turbine inlet air. |
| Wet Burst Pressure - | greater than 7500 Pa (30" wc). |
| Initial Pressure Drop - | 180 Pa @ 2500 m3/h (.72" wc @ 1472 cfm). |
| Temperature Range - | -40°C to +65°C (-40°F to +149°F). |
| Humidity Range - | 0 to 100% relative humidity. |
| Flame Retardance - | E d 2 according to EN 13501. |
| fit | air inlet systems without modification. |
Packaging & Shipping
| Most reasonable and competitive price | |
| Courier service | UPS , DHL ,TNT and EMS for light weight items |
| Delivery Time | Stocked items, within 5 days |
| Payment Method | T/T, Western Union, L/C, Paypal |
| Package | |
| Type 1 | Carton Box + Pallet |
| Type 2 | Plastic Bag + Carton Box + Pallet |
| Type 3 | Plastic Bag(Design) + Carton Box(Design) + Pallet |
| Type 4 | Plastic Bag(Design) + Carton Box(Design) + Wooden Case |
Related Series No. List
| 0330R005BN4HCVSO103H | 0330D003BN | 0330D020ON |
| 0330R005ON | 0330D003BNHCV | 0330D020ONV |
| 0330R005ONV | 0330D003ON | 0330D020ONVSO103H |
| 0330R005ONVSO103H | 0330D003ONV | 0330D010BN3HC |
| 0330R010BN2HCV | 0330D003ONVSO103H | 0330D010BN3HC |
| 0330R010BN4HC | 0330D005BN4HC | 0330D010BHHCV |
| 0330R010BN3HC | 0330D005BN4HCV | 0330D010BH4HCVSO103H |
| 0330R010BNHC2 | 0330D005BNHC | 0330D010BNHC |
| 0330R010BN4HCV | 0330D005BN3HCV | 0330D010BNHCV |
| 0330R010BN | 0330D005BNHC2 | 0330D010BH4HCVSO103H |
| 0330R010BNHC2 | 0330D005BN3HCV | 0330D010BH4HCVSO103H |
| 0330R010BNHCV | 0330D005BN | 0330D010BH3HCV |
| 0330R010BN4HCVSO103H | 0330D005BNHCV | 0330D010BH4HCVSO103H |
| 0330R010BN3HCV | 0330D005ON | 0330D010BN4HCV |
| 0330R010PHC | 0330D005ONV | 0330D010BH |
| 0330R010PHCV | 0330R020BNHCV | 0330D010BN4HCV |
| 0330R010ON | 0330R020BNHCV | 0330D010BN4HCVSO103H |
| 0330R010ONV | 0330R020BN4HCV | 0330D010BN3HCV |
| 0330R010ONVSO103H | 0330R020BN3HCV | 0330D010BN3HC |
| 0330R020PHC | 0330R020BNHC2 | 0330D010ONV |
| 0330R020PHCV | 0330R020BN4HCVSO103H | 0330D010ONVSO103H |
| 0330R020ON | 0330R020ONVSO103H | 0330R020ONVSO103H |
