Basic Info.
Model NO.
UCP206
Separated
Unseparated
Weight
0.7-89.1kg
Inner Diameter
38-140mm
Outside Diameter
127-620mm
Transport Package
Cartons Pallet Metal or as Your Request
Specification
Size customization
Trademark
OEM FOS
Origin
Liaocheng City, Shandong Province
HS Code
8482102000
Production Capacity
10, 000, 000 Sets Per Year
Product Description
| Rows Number | Single | Load Direction | Radial Bearing |
| Material | Bearing Steel | Precision Rating | PO P6 P5 P4 P2 |
| Clearance | CO C1 C2 C3 C4 | Lubrication | Oil Lubrication |
| OEM | Available | Hardness | 59-63HRC |
| Feature | High Speed,Long Life | Transport Package | Single Box |
| Specification | standard | Trademark | Packing+Cartons+Pallets |
| Origin | China | HS Code | 8483200000 |
| Production Capacity | 1500,000 Pieces/Year |

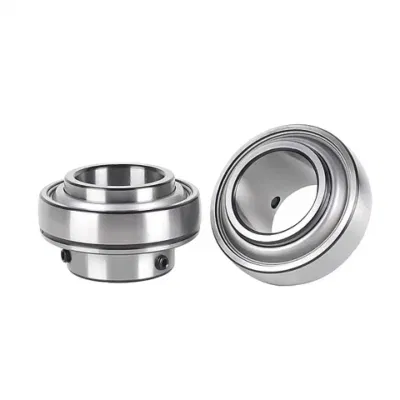

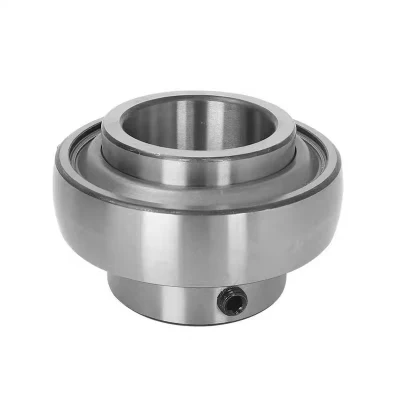

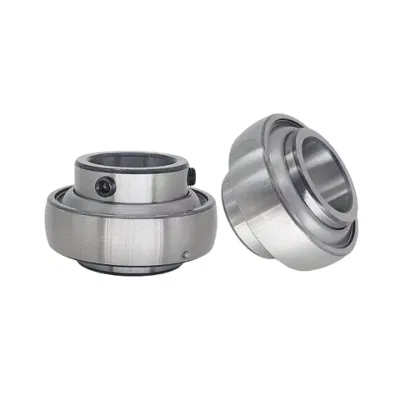

The outer spherical ball bearing is actually a variant of the deep groove ball bearing. Its characteristic is that its outer ring outer diameter surface is a spherical surface, which can be fitted into the corresponding concave spherical surface of the bearing seat to play the role of centering. The outer spherical bearing is mainly used to bear the combined radial and axial load based on the radial load, and it is generally not suitable to bear the axial load alone.
| UC200 series | ||||||||||||
| Bearing type | Dimensions(mm) | Weight(KG) | basic load capacity(KN) | Limt speed(r/min) | ||||||||
| d | D | B | C | S | G | H | ds | dynamic | static | |||
| UC201 | 12 | 40 | 27.4 | 14 | 11.5 | 4.5 | 4 | M*0.75 | 0.12 | 7.36 | 4.48 | 4000 |
| UC202 | 15 | 40 | 27.4 | 14 | 11.5 | 4.5 | 4 | M*0.75 | 0.11 | 7.36 | 4.48 | 4000 |
| UC203 | 17 | 40 | 27.4 | 14 | 11.5 | 4.5 | 4 | M*0.75 | 0.1 | 7.36 | 4.48 | 4000 |
| UC204 | 20 | 47 | 31 | 17 | 12.7 | 4.7 | 4.5 | M6*1.0 | 0.16 | 9.88 | 6.2 | 4000 |
| UC205 | 25 | 52 | 34.1 | 17 | 14.3 | 5.5 | 4.7 | M6*1.0 | 0.19 | 10.78 | 6.98 | 3400 |
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 6 | 4.5 | M6*1.0 | 0.31 | 14.97 | 10.04 | 2800 |
| UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 6.5 | 5.1 | M8*1.0 | 0.48 | 19.75 | 13.67 | 2400 |
| UC208 | 40 | 80 | 49.2 | 21 | 19 | 8 | 5.8 | M8*1.0 | 0.62 | 22.71 | 15.94 | 2200 |
| UC209 | 45 | 85 | 49.2 | 22 | 19 | 8 | 6.2 | M8*1.0 | 0.67 | 24.36 | 17.71 | 1900 |
| UC210 | 50 | 90 | 51.6 | 23 | 19 | 9 | 6.5 | M10*1.0 | 0.78 | 26.98 | 19.84 | 1800 |
| UC211 | 55 | 100 | 55.6 | 25 | 22.2 | 9 | 7.3 | M10*1.0 | 1.03 | 33.37 | 25.11 | 1600 |
| UC212 | 60 | 110 | 65.1 | 27 | 25.4 | 11 | 7.7 | M10*1.0 | 1.45 | 36.74 | 27.97 | 1500 |
| UC213 | 65 | 120 | 65.1 | 28 | 25.4 | 12 | 8.3 | M10*1.0 | 1.71 | 44.01 | 34.18 | 1400 |
| UC214 | 70 | 125 | 74.6 | 30 | 30.2 | 12 | 8.7 | M12*1.25 | 2.06 | 46.79 | 37.59 | 1300 |
| UC215 | 75 | 130 | 77.8 | 30 | 33.3 | 12 | 9.2 | M12*1.25 | 2.22 | 50.85 | 41.26 | 1200 |
| UC216 | 80 | 140 | 82.6 | 33 | 33.3 | 14 | 9.6 | M12*1.25 | 2.8 | 55.04 | 45.09 | 1100 |
| UC217 | 85 | 150 | 85.7 | 36 | 34.1 | 14 | 10.5 | M12*1.25 | 3.48 | 64.01 | 53.28 | 1000 |
| UC218 | 90 | 160 | 96 | 37 | 39.7 | 14 | 11.1 | M12*1.25 | 4.3 | 73.83 | 60.76 | 950 |
| UC 300series | ||||||||||||
| Bearing type | Dimensions(mm) | Weight(KG) | basic load capacity(KN) | Limt speed(r/min) | ||||||||
| d | D | B | C | S | G | H | ds | dynamic | static | |||
| UC305 | 25 | 62 | 38 | 21 | 15 | 6 | 6.1 | M6*1 | 0.35 | 17.22 | 11.39 | 2800 |
| UC306 | 30 | 72 | 43 | 23 | 17 | 6 | 6.7 | M8*1 | 0.56 | 20.77 | 14.17 | 2600 |
| UC307 | 35 | 80 | 48 | 25 | 19 | 8 | 7.4 | M8*1 | 0.71 | 25.66 | 17.92 | 2200 |
| UC308 | 40 | 90 | 52 | 27 | 22 | 10 | 8.2 | M10*1 | 0.96 | 31.35 | 22.38 | 2000 |
| UC309 | 45 | 100 | 57 | 30 | 22 | 10 | 9 | M10*1 | 1.28 | 40.66 | 30 | 1800 |
| UC310 | 50 | 110 | 61 | 32 | 25 | 12 | 10 | M12*1.25 | 1.65 | 47.58 | 35.71 | 1700 |
| UC311 | 55 | 120 | 66 | 34 | 26 | 12 | 10.7 | M12*1.25 | 1.9 | 55.05 | 41.91 | 1400 |
| UC312 | 60 | 130 | 71 | 36 | 30 | 12 | 11.5 | M12*1.25 | 2.6 | 62.88 | 48.6 | 1300 |
| UC313 | 65 | 140 | 75 | 38 | 33 | 12 | 12.2 | M12*1.25 | 3.15 | 72.21 | 56.68 | 1200 |
| UC314 | 70 | 150 | 78 | 40 | 33 | 14 | 13 | M12*1.25 | 3.83 | 80.1 | 63.48 | 1100 |
| UC315 | 75 | 160 | 82 | 42 | 33 | 14 | 13.8 | M14*1.5 | 4.59 | 87.25 | 71.68 | 1000 |
| UC316 | 80 | 170 | 86 | 44 | 34 | 14 | 14.5 | M16*1.5 | 5.3 | 94.57 | 80.35 | 1000 |
| UC317 | 85 | 180 | 96 | 46 | 40 | 16 | 15 | M16*1.5 | 6.58 | 102.25 | 89.52 | 9050 |
| UC318 | 90 | 190 | 96 | 48 | 40 | 16 | 15.9 | M16*1.5 | 7.5 | 110.81 | 100.76 | 900 |
| UC319 | 95 | 200 | 103 | 50 | 41 | 16 | 16.7 | M16*1.5 | 8.7 | 120.51 | 113.75 | 850 |
| UC320 | 100 | 215 | 108 | 54 | 42 | 18 | 18 | M16*1.5 | 10.8 | 133.06 | 131.18 | 800 |
| Deep groove ball bearing | ||||
| Bearing type | Dimensions(mm) | Weight(kg) | ||
| Inner diameter | Outer diameter | breadth | ||
| 16001 | 12 | 28 | 7 | 0.019 |
| 16002 | 15 | 32 | 8 | 0.027 |
| 16003 | 17 | 35 | 8 | 0.033 |
| 16004 | 20 | 42 | 8 | 0.048 |
| 16005 | 25 | 47 | 8 | 0.059 |
| 16006 | 30 | 55 | 9 | 0.087 |
| 16007 | 35 | 62 | 99 | 0.107 |
| 16008 | 40 | 68 | 10 | 0.13 |
| 16009 | 45 | 75 | 10 | 0.167 |
| 16010 | 50 | 80 | 11 | 0.175 |
| 16011 | 55 | 90 | 11 | 0.257 |
| 16012 | 60 | 95 | 11 | 0.281 |
| 16013 | 65 | 100 | 13 | 0.3 |
| 16014 | 70 | 110 | 13 | 0.437 |
| 16015 | 75 | 115 | 14 | 0.463 |
| 16016 | 80 | 125 | 14 | 0.621 |
| 16017 | 85 | 130 | 16 | 0.652 |
| 16018 | 90 | 140 | 16 | 0.87 |
| 16019 | 95 | 145 | 16 | 0.904 |
| Bearing type | Dimensions(mm) | Weight(kg) | ||
| Inner diameter | Outer diameter | breadth | ||
| 16020 | 100 | 150 | 8 | 0.945 |
| 6000 | 10 | 26 | 8 | 0.018 |
| 6001 | 12 | 28 | 9 | 0.022 |
| 6002 | 15 | 32 | 10 | 0.031 |
| 6003 | 17 | 35 | 12 | 0.041 |
| 6004 | 20 | 42 | 12 | 0.068 |
| 6005 | 25 | 47 | 13 | 0.079 |
| 6006 | 30 | 55 | 14 | 0.116 |
| 6007 | 35 | 62 | 15 | 0.151 |
| 6008 | 40 | 68 | 16 | 0.19 |
| 6009 | 45 | 75 | 16 | 0.241 |
| 6010 | 50 | 80 | 18 | 0.261 |
| 6011 | 55 | 90 | 18 | 0.381 |
| 6012 | 60 | 95 | 18 | 0.412 |
| 6013 | 65 | 100 | 20 | 0.439 |
| 6014 | 70 | 110 | 20 | 0.608 |
| 6015 | 75 | 115 | 22 | 0.649 |
| 6016 | 80 | 125 | 22 | 0.872 |
| 6017 | 85 | 130 | 24 | 0.918 |
| 6018 | 90 | 140 | 24 | 1.19 |
6300 series deep groove ball bearing
6220 series deep groove ball bearing
Production Line
Qingdao Siruibo Bearing Technology Co., Ltd. is a company mainly engaged in manufacturing and selling outer spherical bearings. The registered capital is Five million.
Since its establishment 20 years ago, the company is committed to Mounted Bearing Unit (maintenance-free bearings, engraving machine bearings, holding machine shaft Bearing, no-tillage machine bearing, fan bearing, high temperature bearing, zinc alloy bearing, food grade bearing unit) research and development. With the most complete varieties and best advanced manufacturing technology in production of Mounted Bearing Unit, to be a reliable enterprises, we welcome your cooperation. Currently, our company produce 10 series of more than 260 varieties of outer spherical bearings and 13 different structural categories of outer spherical bearing special seats, all adopted International standard design and manufacturing. Registered trademark "FOS" .
Through the efforts and unremitting pursuit of all employees of the company, all products accepted by international standards. Over the years of Expansion and technical transformation, we developed into a Mounted Bearing Unit with large scale of professional manufacturers, for the bearing industry in China, has made a contribution to the development of Bearing.
Qingdao Siruibo Bearing Technology Co., Ltd. has a production capacity of 1 million sets/year, with an annual output value of 30 million yuan. We produce 30 varieties monthly , with 45-60 days lead time.
The company has a perfect material and product quality inspection equipment, according to the strict scientific Quality assurance system, to prove satisfactory to our customers. Our products widely used in agricultural Industry machinery, textile machinery and light industry, chemical industry, metallurgy, printing, food, transportation, coal, packaging and other industries and the introduction of machinery .Our products have exported to Europe, America and many countries and regions in South east Asia.
Exhibitions
About us:
We are one manufactuer of bearing for more than 20 years.
Give us a chance, we will cooperate with our passion.
Our professional, reliable, experienced products and service can meet your request.
Why choose us?
SAMPLES
1. Samples quantity: 1-10 PCS are available.
2. Free samples: It depends on the Model No., material and quantity. Some of the bearings samples need client to pay samples charge and shipping cost.
3. It's better to start your order with Trade Assurance to get full protection for your samples order.
CUSTOMIZED
The customized LOGO or drawing is acceptable for us.
MOQ
1. MOQ: 10 PCS mix different standard bearings.
2. MOQ: 3000 PCS customized your brand bearings.
OEM POLICY
1. We can printing your brand (logo, artwork)on the shield or laser engraving your brand on the shield.
2. We can custom your packaging according to your design
3. All copyright own by clients and we promised don't disclose any info.
SUPORT
Please visit our bearings website, we strongly encourge that you can communicate with us through email, thanks!
We have all kinds of bearings, just tell me your item number and quantity, best price will be offered to you soon
The material of the bearings, precision rating, seals type, OEM service, etc, all of them we can make according to your requirement.
