Product Description

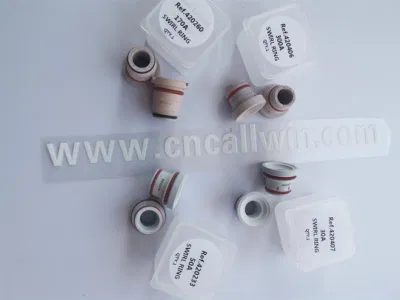

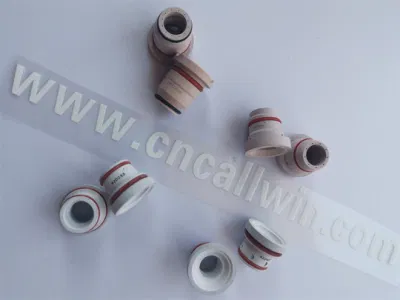

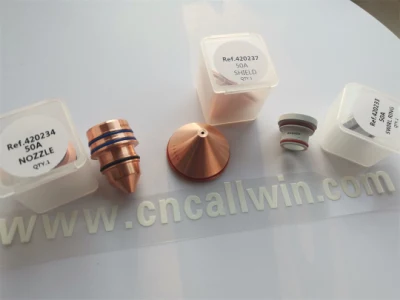

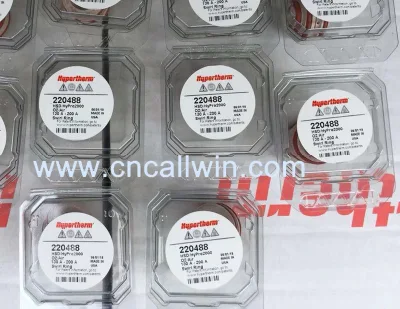

China Manufacturer Sample Available Plasma Cutter Consumable 220436 Swirl Ring
What are plasma cutter consumables ?
What are plasma cutter consumables ?
Plasma cutter consumables are a set of components in your plasma cutter that gradually wear over time until they need to be replaced: they have a life cycle. The consumables are all found in the cutting torch itself, which is where most of the energy is focussed, and keeping track of wear and tear is a key part of maintaining an efficient machine that cuts well and lasts a long time. Plasma cutting torch consumables include: a swirl ring, electrode, nozzle, retaining cap, and shield cap.
Nozzle:
The nozzle focuses the plasma arc and the gas that surrounds it to make a clean and precise cut. A nozzle with a larger
opening is used for gouging, while a nozzle with a smaller opening is better able to direct the gas and so is used for fine, detailed work.
| Part Number | 220354 |
|---|---|
| Item Weight | 2.11ounces |
| Product Dimensions | 0.39x0.39 x 0.39 inches |
| Operatin Range | 130A |
| Plasma Power Source | HPR800/400/260 |
| Material | Imported Copper |
| Item Package Quantity | 1 |
Electrode:
The electrode is a narrow piece of copper containing hafnium (which is an excellent conductor of electricity). Its job is to receive the electrical current from a cathode block inside the torch to which it is connected, and to focus the charge through its tip, which causes it to arc onto the workpiece.
| Part Number | 220435 |
|---|---|
| Item Weight | 1.6ounces |
| Product Dimensions | 1 x 1 x 6 inches |
| Operatin Range | 260A |
| Plasma Power Source | HPR800/400/260XD |
| Item Package Quantity | 5 |
Retaining cap:
The retaining cap essentially holds all of the consumable parts of the torch together. As temperatures at this end of the machine are extremely high, it's not just the parts creating and focussing the arc that are worn down; the component holding them together also degrades over time.
| Part Number | 420156 |
|---|---|
| Item Weight | 2.46ounces |
| Product Dimensions | 4.72 x 3.15 x 1.57 inches |
| Operatin Range | 30A-125A |
| Plasma Power Source | Powermax 125 |
| Item Package Quantity | 5 |
Shield cap:
The shield is there to protect the torch and its other components from the sparks and molten metal that result from the plasmacutting process. It takes the brunt of the fallout so that wear to other components is minimised as much as possible.
| Part Number | 220356 |
|---|---|
| Item Weight | 1.16ounces |
| Product Dimensions | 1x1x 6Inches |
| Operatin Range | 130xd 260xd |
| Application | for mild steel cutting etc |
| Item Package Quantity | 1 |
Swirl ring:
The function of the swirl ring is to spin the plasma gas which has two main results; 1, The spinning gas is gyroscopically stabilised a bit like a bullet making the plasma column less tendency to deflect.
| Part Number | 220436 |
|---|---|
| Item Weight | 0.176ounces |
| Product Dimensions | 1 x1x6 Inches |
| Operatin Range | 260A |
| Plasma Power Source | HPR260XD 400XD |
| Item Package Quantity | 1 |
Torch body:
428147 main torch body is used on the Hypertherm Powermax 125 for mechanised cutting applications.
| Part Number | 428147 |
|---|---|
| Item Weight | 8ounces |
| Product Dimensions | 1*1*6 Inches |
| Operatin Range | 105A-125A |
| Plasma Power Source | Powermax 45A/65A/85A/105A/125A |
| Item Package Quantity | 5 |
List of Consumable Details:
Therefore we will provide you with an overview of all current and legacy Hypertherm plasma cutting systems, so you could see which option fits best your needs.
| Consumable List | |||||
| Series | Numbering | Products | Series | Numbering | Products |
| PMX45 | 220669 | Electrode | PMX1650 | 220037 | |
| 220671 | Nozzle | 220011 | Nozzle | ||
| 220672 | Nozzle | 220047 | Shield | ||
| 220718 | Nozzle | 220065 | Shield | ||
| 220670 | Vortex Ring | 220048 | Fixed Cover | ||
| 220713 | Fixed Cover | 220051 | Vortex Ring | ||
| 220719 | Fixed Cover | 220206 | Fixed Cover | ||
| 220673 | Shield | 128643 | | ||
| 220674 | Shield | 228523 | Noumenon | ||
| PMX65A/85A/105A | 220842 | Electrode | GPR130 | 220181 | Electrode |
| 220941 | Nozzle | 220182 | Nozzle | ||
| 220816 | Nozzle | 220183 | Shield | ||
| 220819 | Nozzle | 220187 | Electrode | ||
| 220990 | Nozzle | 220188 | Nozzle | ||
| 220817 | Shield | 220189 | Shield | ||
| 220993 | Shield | 220179 | Vortex Ring | ||
| 220857 | Vortex Ring | 220176 | Fixed Cover | ||
| 220994 | Vortex Ring | 220756 | Fixed Cover | ||
| 220854 | Fixed Cover | 220173 | Fixed Cover | ||
| 220953 | Fixed Cover | 220747 | Fixed Cover | ||
| 220818 | Shield | HPR260 | 220352 | Electrode | |
| 220992 | Shield | 220354 | Nozzle | ||
| 220948 | Shield | 220353 | Vortex Ring | ||
| 220955 | Shield | 220761 | Shield | ||
| 220931 | Shield | 220356 | Shield | ||
| 220930 | Nozzle | 220435 | Electrode | ||
| 220947 | Vortex Ring | 220439 | Nozzle | ||
| 220797 | Nozzle | 220764 | Shield | ||
| 220991 | Nozzle | 220436 | Vortex Ring | ||
| 220798 | Nozzle | 220760 | Fixed Cover | ||
| 228716 | Noumenon | 220637 | Fixed Cover | ||
| 228735 | | 220571 | Water Pipe | ||
| 228737 | | 220340 | Water Pipe | ||
| | | | | | |
| PMX125A | 220971 | Electrode | HSD130 | 220487 | Electrode |
| 220975 | Nozzle | 220525 | Nozzle | ||
| 420158 | Nozzle | 220530 | Nozzle | ||
| 420169 | Nozzle | 220489 | Nozzle | ||
| 420168 | Shield | 220492 | Nozzle | ||
| 420156 | Shield | 220532 | Shield | ||
| 220976 | Shield | 220491 | Shield | ||
| 420000 | Shield | 220536 | Shield | ||
| 220997 | Vortex Ring | 220488 | Vortex Ring | ||
| 220977 | Fixed Cover | 220890 | Nozzle | ||
| 428144 | | 220892 | Nozzle | ||
| 428145 | | 220891 | Nozzle | ||
| 428548 | | 220521 | Water Pipe | ||
| 428147 | Noumenon | 220529 | Vortex Ring | ||
| PMX1250A | 120926 | Electrode | MAXPRO200 | 220528 | Electrode |
| 120927 | Nozzle | 220578 | Fixed Cover | ||
| 120931 | Nozzle | 220937 | Electrode | ||
| 120932 | Nozzle | 420044 | Nozzle | ||
| 120980 | Nozzle | 420045 | Shield | ||
| 220007 | Nozzle | 220488 | Vortex Ring | ||
| 220006 | Nozzle | 220936 | Fixed Cover | ||
| 120929 | Shield | 220935 | Fixed Cover | ||
| 120930 | Shield | 220831 | Nozzle | ||
| 120925 | Vortex Ring | 220832 | Shield | ||
| 120928 | Fixed Cover | IF YOU NEED OTHER MODELS YOU CAN CONSUL CUSTOMER SERVICE | |||
| MAX200 HT2000 | 220021 | Electrode | |||
| 020608 | Nozzle | ||||
| 020605 | Nozzle | ||||
| 020689 | Nozzle | ||||
| 020690 | Nozzle | ||||
| 020424 | Shield | ||||
| 020448 | Shield | ||||
| 020607 | Vortex Ring | ||||
| 120837 | Fixed Cover | ||||
| 020423 | Fixed Cover | ||||
| 020963 | Water Pipe | ||||
