China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200
Get the best quality China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200 directly from the factory. High performance and durable.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Application
  • Package and Delivery
  • Company Profile
  • Certifications
  • Consumable list
  • FAQ
Overview

Basic Info.

Model NO.
HT2000
Warranty
N/M
Customized
Customized
Layout
Horizontal
Cutting Material
Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Automatic Grade
Automatic
Power Source
Electric
Cutting Mode
Plasma Cutting
Cooling Way
Water Cooling
Control
Automatic
Style
Handheld
Shielding Gas
Argon Gas
Frequency Range
High Frequency
Electric Current
AC
Type
Fusion
Current
125A
Torch Model
Duramax Machine Torch
Cutting Type
Plasma
Plasma Accessories
Torch Nozzles & Electrode
Application
CNC Plasma Cutting Machine
Ampere
50A/80A/130A/200A/260A
Plasma Torch Style
Powermax125A Torch
Consumables
Cutting Electrode Nozzle
Consumables for Cutting Machine
Electrode Nozzle
Cutting Tools
Plasma Nozzles Electrode
Material
Copper Wire
Powermax Shield
Plasma Cutter Tips
Appliication
Cutting Steel Plate
Nozzle
220975/420158/420169
Plasma Consumables Shield
220971 220975 420158 420169
Transport Package
Carton Box
Specification
brass
Trademark
OEM
Origin
China
HS Code
8468900000

Packaging & Delivery

Package Size
6.70cm * 1.70cm * 1.70cm
Package Gross Weight
0.025kg

Product Description

China Supplier Retaining Cap 120837 for Max 200 Plasma Cutting Torchorch
What are plasma cutter consumables ?
Plasma cutter consumables are a set of components in your plasma cutter that gradually wear over time until they need to be replaced: they have a life cycle. The consumables are all found in the cutting torch itself, which is where most of the energy is focussed, and keeping track of wear and tear is a key part of maintaining an efficient machine that cuts well and lasts a long time. Plasma cutting torch consumables include: a swirl ring, electrode, nozzle, retaining cap, and shield cap.

Product Description

Nozzle:
The nozzle focuses the plasma arc and the gas that surrounds it to make a clean and precise cut. A nozzle with a larger
opening is used for gouging, while a nozzle with a smaller opening is better able to direct the gas and so is used for fine, detailed work

Part Number 220892
Item Weight 7.4 ounces
Product Dimensions 2 x 2 x 0.7 inches
Operatin Range 65A-125A
Plasma Power Source Powermax 125
Material Copper
Item Package Quantity 5
China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200

Electrode:
The electrode is a narrow piece of copper containing hafnium (which is an excellent conductor of electricity). Its job is to receive the electrical current from a cathode block inside the torch to which it is connected, and to focus the charge through its tip, which causes it to arc onto the workpiece.
China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200

Retaining cap:
The retaining cap essentially holds all of the consumable parts of the torch together. As temperatures at this end of the machine are extremely high, it's not just the parts creating and focussing the arc that are worn down; the component holding them together also degrades over time.

Part Number 120837
Item Weight 2.46ounces
Product Dimensions 4.72 x 3.15 x 1.57  inches
Operatin Range 100A-200A
Plasma Power Source HT2000
Item Package Quantity 1
China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200

Shield cap:
The shield is there to protect the torch and its other components from the sparks and molten metal that result from the plasmacutting process. It takes the brunt of the fallout so that wear to other components is minimised as much as possible.
Product Parameters
Part Number 220976
Item Weight 1.76 ounces
Product Dimensions 3.94 x 3.94 x 1.97Inches
Operatin Range 105A-125A
Plasma Power Source Powermax 125
Item Package Quantity 5
China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200

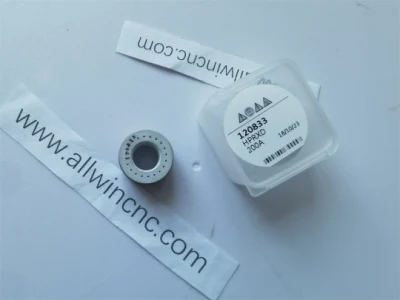

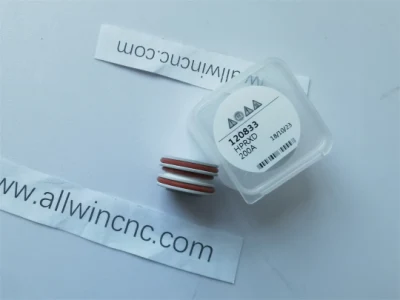

Swirl ring:
The function of the swirl ring is to spin the plasma gas which has two main results; 1, The spinning gas is gyroscopically stabilised a bit like a bullet making the plasma column less tendency to deflect.

Part Number 120833
Item Weight 0.246ounces
Product Dimensions 1 x 1 x6 Inches
Operatin Range 105A-125A
Plasma Power Source HT2000
1 1



China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200

Application




China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200

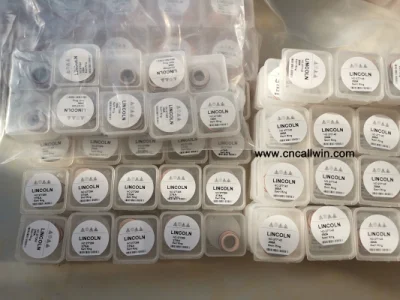

Package and Delivery



China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200


China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200
Company Profile

Established in 2017, ALLWINCNC are a manufacturing company specializing in the production of plasma and laser consumables.

 We want to build long-term relationships with customers rather than developing one-off deals.
By providing our products to help you succeed in your endeavors.
The core idea of ALLWIN is our commitment to achieving mutual success for our customers, shareholders, and employees through collaboration.
China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200

Certifications

China Manufacturer Original Replacements 200A O2 120833 Swirl Ring for Ht2000 & Max200


Consumable list

Therefore we will provide you with an overview of all current and legacy Hypertherm plasma cutting systems, so you could see which option fits best your needs.


No Part No Ref No Description
1 120547 FM120547 Electrode 40-100A
2 020689 FM020689 Nozzle  40A
3 020688 FM020688 Shield  40A
4 020611 FM020611 Nozzle  100A
5 020448 FM020448 Shield  100A
6 020415 FM020415 Electrode 200A
7 020608 FM020608 Nozzle  200A
8 020424 FM020424 Shield  200A
9 220021 FM220021 Electrode 200A
10 020605 FM020605 Nozzle  200A
11 120258 FM120258 Electrode 200A
12 120259 FM120259 Nozzle  200A
13 120260 FM120260 Shield  200A
14 020607 FM020607 Swirl Ring 100-200A
15 020604 FM020604 Swirl Ring  200A O2
16 120833 FM120833 Swirl Ring  200A O2
17 020423 FM020423 Retaining Cap
18 120837 FM120837 Retaining Cap
19 020963 FM020963 Water Tube
20 120584 FM120584 Standard torch main body
21 120894 FM120894 2" Sleeve



FAQ

Question : How about your after service?

Answer : Technical support by phone, e-mail or MSN around the clock.
Question : How can we install the consumables?
Answer : Friendly English version manual and operation video CD disk.
Question : How do I choose the right consumables for my machine?
Answer : According to your needs and budget, we will provide the best answer for your efficient production.
Question : How about the payment terms?
Answer : 30% T/T for deposit, 70%T/T paid before shipping.
Question : When can I get the price?
Answer : We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Question : Can I get a lower price if I order large quantities?
Answer : Yes, once the order is confirmed, you will enjoy our factory price.
Question: Which port is the nearest from your company?
Answer : The Qingdao port is the nearest
Question: Can I have a visit to your factory before the order?
Answer : Yes, look forward to communicating and cooperating with you!
