Basic Info.
Payload
40T
Fuel
Diesel
Drive Mode
8x4
Maximum Horsepower
300-400hp
Condition
New
Product Name
Mixer Truck
Chassis Brand
Dongfeng or Optional
Loading Capacity
30-35 T
Steering
Left/Right Hand Drive
Gear Box
Dongfeng
No.of Gear
12 Mt
Tire Specification
12.00-20/12.00r20
Tire Quantity
12+1 Units
Drum Mix Volume
14-16 Cbm
Reducer
PMP/Eaton(USA)
Hydraulic Pump
PMP/Eaton(USA)
Hydraulic Motor
PMP/Eaton(USA)
Radiator
PMP/Eaton(USA)
Water Supply System
300 L, Air Pressure
Transport Package
Naked Packing After Waxing
Specification
10250*2550*3995mm
Trademark
Dongrun
Origin
China
HS Code
8509900000
Production Capacity
4000sets/Year
Product Description

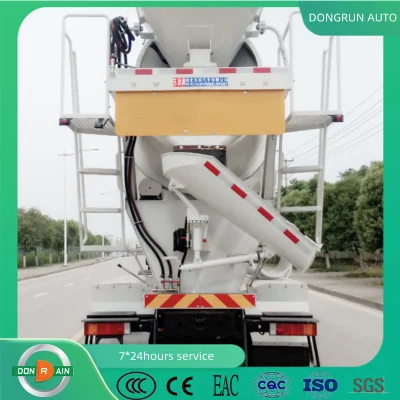

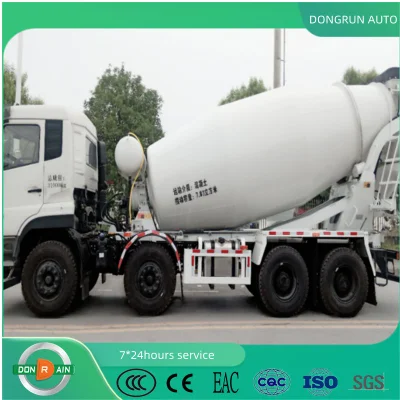

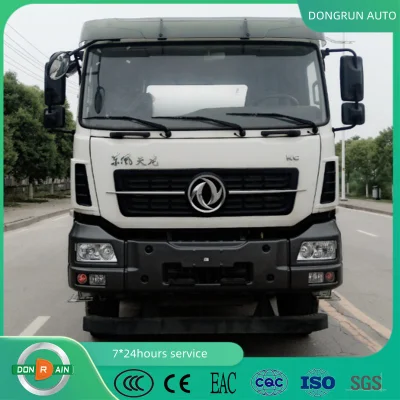

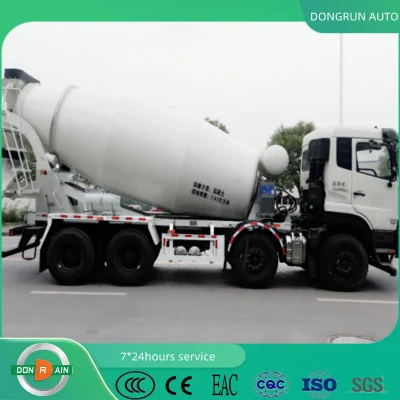

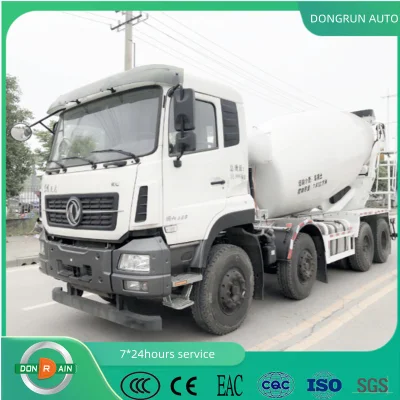

Concrete mixer truck also named cement mixer mobile truck which is used for transporting mixing concrete to the construction site, mixing station. Concrete mixer truck is composed of the chassis, mixer drum, hydraulic system, reducer and radiator, which brand could be imported or Chinese top one. The mixer drum maintains the agitation and turning until delivery during the transportation which cubage could be from 2cbm to 15cbm.
| Vehicle Description | ||
| Overall dimension | 10250×2550×3995 | |
| GVW | 31000 kg | |
| Curb weight | 13800 kg | |
| Chassis brand | DONGFENG | |
| Traction type | 8*4, left hand drive | |
| Chassis Description | ||
| Model | DFL1310AX13A | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab, electrical cab tilting, front and rear mechanical cab suspension, adjustable Driver's seat, air conditioning system, electrical windows, central lock. | |
| Wheelbase | 1850+4800+1350 mm | |
| Tire specification | 12.00-20/12.00R20 | |
| Tire quantity | 12+1 units | |
| Engine | Engine model | L375-30 |
| Emission standard | Euro 2 | |
| Exhaust/output | 8900ml/276kw | |
| Horse power | 375hp | |
| Gear box | Model | 12JSD180T DD |
| Type | 12 forward gears& 2 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake. | |
| Axle | Front | 7T-Elliot type, I beam section |
| Rear | Single reduction, tandem axle, with axle lock, ratio 5.143.13T-Hub reduction, tandem axle, with axle lock and wheel lock, ratio 5.26 | |
| Suspension | Front | 9- Leaf spring with shock absorber |
| Rear | 13-Leaf spring | |
| Battery | Voltage | 12V*2 |
| Capacity | 165A.h*2 | |
| Fuel tanker | Type | Aluminum fuel tank with lockable cap |
| Capacity | 350 L | |
| Up-part describtion | ||
| Drum | Drum mixing volume | 14-16 cbm |
| Fling rate | 65% | |
| Residual ratio | <4% | |
| Material | Carbon steel or alloy steel | |
| Reducer | PMP/Eaton(USA) | |
| Hydraulic pump | PMP/Eaton(USA) | |
| Hydraulic motor | PMP/Eaton(USA) | |
| Radiator | Chinese top brand Water supply | |
| Water supply | Water tank volume | 300 L |
| Water supply type | Air presure | |
