1. What is the compactor garbage truck? YongQiangFeng garbage compactor truck function introduction
Garbage Compactor Truck is a type of dry or bio-toilet which is designed to convert the human refuse and excreta in to compost.It is provided with in-built sewerage mechanisms that can be easily connected to external drainage systems to ensure its sturdiness and easy usage.
By condensing garbage,so that it takes up less space in the body of the vehicle, the garbage truck compactor increases the amount of trash that can be transported before being discharged, allowing waste hauling companies to maximize the number of daily pickups.
2. How Garbage Truck Compactors Work?
The trash compactor has a compression chamber that runs along the length of the truck and has a discharge opening at one end and a feed opening at the other. In the compression chamber, there is a ram that is driven by hydraulics. Its job is to pack the trash to a certain density and pressure by moving back and forth. At the chamber's discharge opening, there is a door that can be moved manually between an open and a closed position. When the door is closed, the trash is pressed against it.
A hydraulic compactor is a machine that uses hydraulic pressure to compress materials. The force of a standard garbage truck compactor is approximately 2,750 psi (pounds per square inch).
3. Compactors Work in Tandem With Other Design Elements
Garbage trucks are designed to collect different types of rubbish using different components. The rear loader garbage truck is the most common type of garbage truck, and it is used in most residential areas to collect trash cans curbside. Such vehicles typically feature a hydraulic lift that raises and lowers trash cans into a hopper at the rear of the truck. A garbage collector may operate a set of buttons and levers mounted on the exterior of the vehicle to control this operation.
When the hopper is full, a hydraulic mechanism scoops the trash into the truck's compacting section. The garbage truck compactor then reduces the amount of space that the refuse occupies in the truck's body. The cycle continues until the truck's body is full.
4. Compactor garbage truck Chassis option:DFAC,FAW,SINOTRUCK HOWO,BEIBEN,SHACMAN,JAC,JMC,ISU ZU,etc.

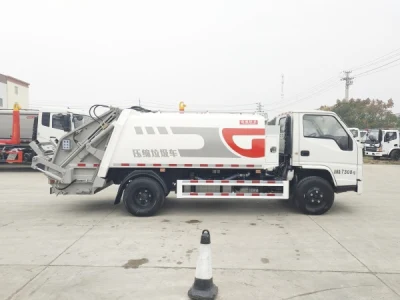

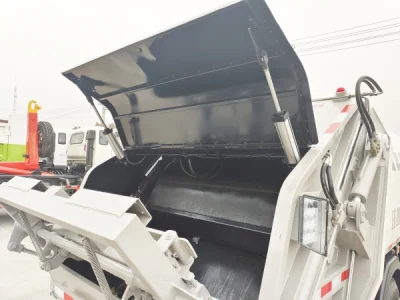

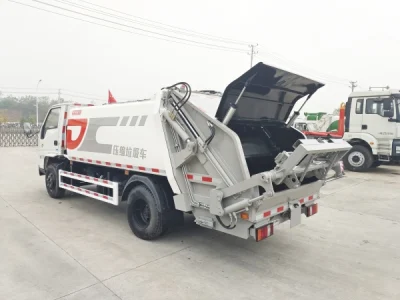

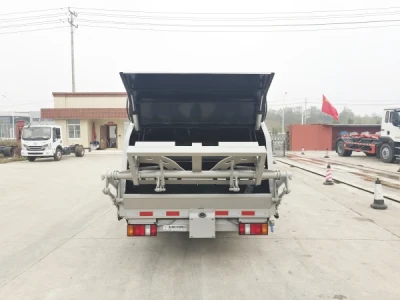

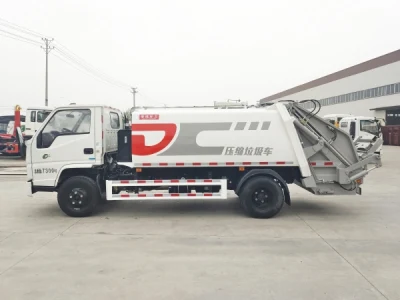

China JMC 6m3 trash container refuse garbage compression truck garbage compactor truck compression refuse truck trash compactor truck specifications
Truck chassis specification
| Cabin | JMC Short cab,A/C | |
| Vehicle Dimensions | Overall dimensions (L x W x H) mm | 6800×2270×2460 |
| Wheel base (mm) | 3360 | |
| Wheel track (front/rear) (mm) | 1575/1508 | |
| Truck weight (KGS) | Tare weight | 5260 |
| Recommend payload | 5000 | |
| Front axles load capacity | 2600 | |
| Rear axles load capacity | 4700 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Brand | JMC motor |
| Model | JX493ZLQ | |
| Type | 4 stroke,straight 4-cylinder in line,Turbocharge with inter-cooling,diesel engine | |
| Engine dispacement(L) Horse Power(HP) | Engine displacement: 2.771L 122HP, other engine power are optional | |
| Emission standard | Euro 3 | |
| Gearbox | Manual operation,6 speed forward and 1 reverse gear | |
| Steering | Hydraulic steering with power assistance | |
| Clutch | Reinforced diaphragm clutch | |
| Tire | 7.00R16 tyre, 6+1 pcs (including one spare tire) | |
The special parameter of compression garbage compactor truck
| Garbage container effective volume | About 6 cubic meter |
| Body shape | The new Arc |
| The body material | Q345 manganese steel (side:4mm, base flloor: 5mm) |
| Compression ratio | 1:2.5 or higher |
| Dirty water collection tank volume | Range from 200 liters-500 liters |
| Effective volume of hopper | 0.8-1.2 CBM or higher per client's required |
| Loading cycle time | 40s or less |
| Discharge cycle time | 45s or less |
| Tailgate ascending angle | about 95 degree |
| The control mode | Automatic, manual |
| Hydraulic system pressure | 18MPa |
| Multiple directional controlvalve | Jiangsu oil valve in China,or import parts |
| Hydraulic oil pump | Hefei pump in China,or import parts |
| Conversion force retractor | Zhejiang jiashan in China,or import parts |
| Electronic control system (PLC one-button cycle) | Made from Taiwan China,or import parts |
| Trash bin suspension type | Rear suspension for 120L,240L,1100L trash bin |
Finished truck corner Tank manufacture room
Laser cutting machine Electrostatic spraying process
Sand-blasting room Spray treatment and ovan products
Spray treatment product corner Sand-blasting semi-rproducts
Spray treatment products corner Spray treatment products corner
Shipment by bulk vessel,RO-RO vessel or Flat rack container
Small Goods by 40FT container
Our company have many successful cases for shipment all over the world,we will provide professional Logestic transportation services to Client forever.
Advantages
5) After-sales: Spare parts and technical support.Video call guildance is available
