Product Description

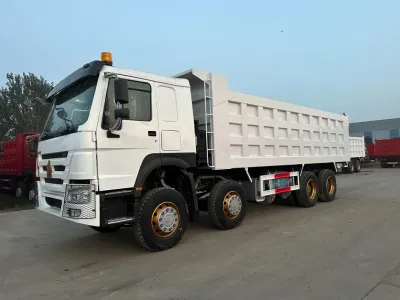

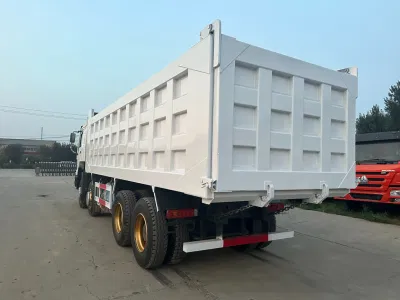

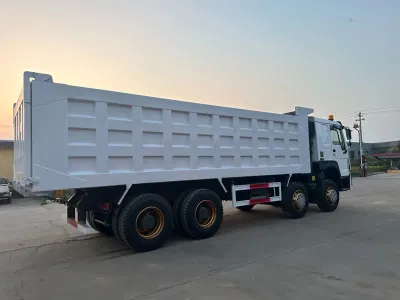

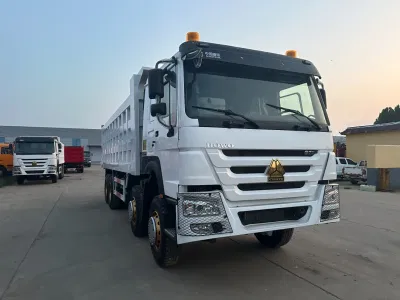

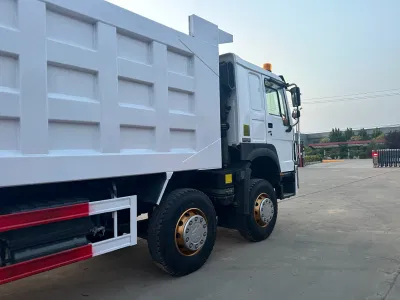

China best selling sinotruk howo 8x4 12 wheel used construction dumper/tipper heavy duty truck
The truck can be customizedaccording to your requirements:
1. New tires and new box
2. All new interior
3. Repainting whole truck
4. All new battery bracket, air reservoir, muffler, fuel tank, oil and diesel filter element, turbocharger and air filter element.
5. change engine oil, check gear oil
6.The air conditioning works well
7.Maintain the engine,disassemble the gearbox for maintenance
8.Replace damage parts of whole truck
Grade B:
1.70%-80% tires , old dump box with paint
2.Neat interior
3.Repainting whole truck
4.All new battery bracket, air reservoir, muffler, fuel tank, oil and diesel filter element, turbocharger and air filter element.
5.change engine oil, check gear oil.
6.Maintain the engine,disassemble the gearbox for maintenance
7.Replace damage parts of whole truck.
Cab (with left and right driving)
| Name | HOWO DUMP TRUCK | ||
| ZZ3317N3867B | |||
| Drive type | 8×4 | ||
| Kerb mass (kg) | 18200kg | ||
| Rated loading capacity(kg) | 50000kg | ||
| Total mass(kg) | 68000kg | ||
| Max. speed (km/h) | 75 | ||
| Min. turning circle (m) | 18 | ||
| Approach/Departure(°)/ | 16/70 | ||
| Max. gradeability (%) | 60 | ||
| Appearance dimensions (mm) | 10150×2500×3450 | ||
| Wheel base (mm) | 3500+1350 | ||
| Overhang(front/rear) | 1500/725 | ||
| Track width (mm) (front/rear) | 2022/2041 | ||
| Engine | CNHTC Engine,WD1615.47 ,371hp E-II | ||
| Rated output power | 309kw | ||
| Torque(N.m r. p. m) | 1820/1100-1500 | ||
| Displacement(L) | 9.726 | ||
| Fuel tank capacity (L) | 300L | ||
| Tyre: | 12.00R20 12+1pc | ||
| Clutch | φ430 diaphragm spring | ||
| Gearbox | Transmission | HW19710, 10 forward&2 reverse Manual | |
| Front axle | VGD9.5 | ||
| Drive axle | HC16 ratio 5.73 | ||
| Steering | ZF8118 (left-hand drive) | ||
| Brake | Service brake | With dual-circuit compressed air brake | |
| Park brake | Power spring brake acting on front & rear wheel | ||
| Auxiliary brake | Engine exhaust valve brake | ||
| Cab | HW76 Cab with Single sleeper A/C With Wind scooper and air guide sleeve | ||
| Battery | 165AH | ||
| Carriage Internal Dimensions | 7300×2300x 1500mm | ||
| Steel thickness of Carriage: | Floor: 8mm, Side:6mm, Chinese brand front lift | ||
1. Based on STR technology from Austria
2. Cabin:Four point s suspension HOWO Cabin with spring and air shock absorber, VDO panel
3. Engine:371HP WD615 STR engine ( from 290hp - 420 hp you can chose )
4.Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
5. Front axle: HF9 STEYR technology front steering axle
6. Rear axle: AC16 16ton STEYR technology double reduction hub reductor driving axle
7. Steering: ZF81188, driver sit at the left hand side
8. Loading capacity: More than 30ton
9. Designed for tough road condition especially for African countries
10. Punctual delivery time
11. Excellent spare parts supply for after-sales service.
1. What is your terms of shipment?
A: Generally, we ship our truck by ro-ro ship, bulk cargo vessel, container etc.
2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
4. How about your delivery time?
A: Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
We will inspect our trucks before delivery.
Before delivery to our customers, every used trucks will be checked strictly, the beginning " used trucks optimum selection, key components detection and replacement ", the final " all- round debugging and comprehensive inspection ", every used trucks exported to customers will strive to be high quality and good performance.
We have professional teams,including Repairing department,Loading department,Driving department and Exporting department.We are ready to provide you professional service to you 24 hours.
Please feel free to contact us in any time.
