Product Description

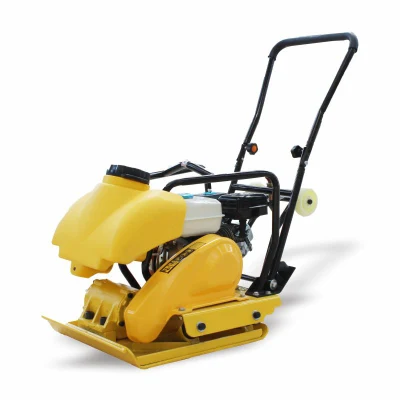

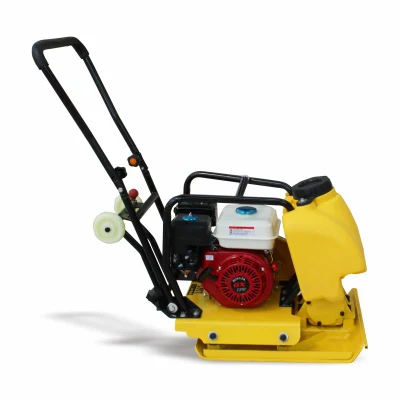

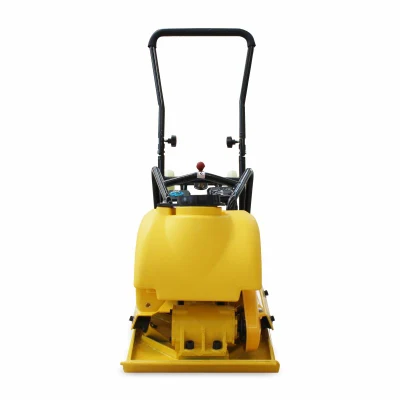

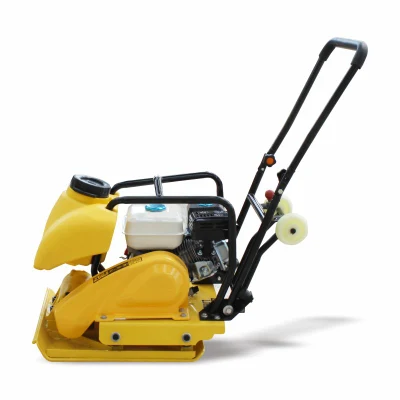

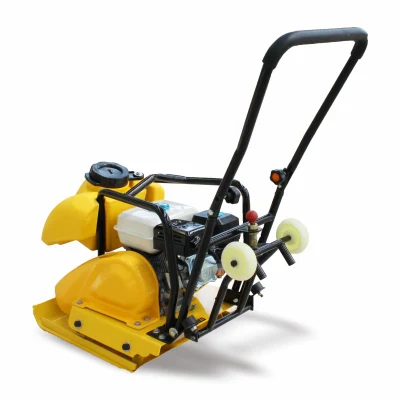

Plate compactor can prevent various structural problems such as cracking and leaking walls, foundation erosion, slab issues, and breakage in pipes and improve construction quality. The machine is often used in small building foundations, various backfill construction, and earth foundation compaction. Suitable for materials with low adhesion and friction between rammed particles, especially for non-viscous sand. The compaction effect of crushed stone is remarkable.
| Model | PC-90 |
| Plate size | 450*550mm |
| Centrifugal force | 15KN |
| Thickness plate | 8mm |
| Walking speed | 20-23m/min |
| Engine type | Honda/Locin/Robin/Local |
| Max. output | 5.5HP |
| Vibrating fre | 5500rpm |
| Overall size | 840*520*610mm |
| Weight | 90KGS |
Gasoline engine: A variety of gasoline engines, HONDA, ROBIN, and LOCIN can be selected.
Thicken plate: The use of a one-piece cast steel baseplate, strong and more durable; plate thickness can be chosen from 8/10mm
Natural rubber damper: Thickened damping block, natural rubber material, better damping effect
Sealed belt cover: Seales belt cover to prevent sand and soil in The V-belt drive is fully enclosed for better safety and trouble-free use
Large capacity water tank: more efficient construction
1 unit was packed into an iron frame and then packed with 5 layers of corrugated cartons. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportation
Delivery detail:
Swift delivery, within 15-30 days after receiving the deposit
Q1. What can we do if there are problems with the products?
A: Our engineers will analyze the problem for you and find the best
solution. If problems happened within the guaranteed time, we can replace the components for you free of charge. We have dealers in some countries, for some technical problems which you can not solve by yourself.
Q2. What is the delivery time for your products?
A: Once we promise the delivery time, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Q3. Is there any guarantee for your products
A: Most of our products have one year guarantee(for the main parts).
Q4. How can you control your product quality?
A: Quality is always considered the most important part of our manufacturing process. All of our products come under a strict quality control system from raw material inspection, component inspecting,semi-finished product inspecting, and performance test of finished products, to random inspection before delivery.
