Basic Info.
Model NO.
UCP204/205/206
Rows Number
Single
Raceway
Spherical Raceway
Material
Cast Iron
Bearing Block Model
P
Other Materials
Plastic Material/Ductile Iron/Cast Iron
Accessories
Lock Nuts/Screw/Nozzle Cap
Load
Large load carrying capacity
Life
Long service life
Convenience
Easy installation&positioning for mounting
Color
Ral Color
Transport Package
Individually Packed in Color Box
Specification
Please Check in the Description
Trademark
TANN or Be Customized
Origin
China
HS Code
8483200000
Production Capacity
100000
Packaging & Delivery
Package Size
20.00cm * 30.00cm * 40.00cm
Package Gross Weight
21.000kg
Product Description

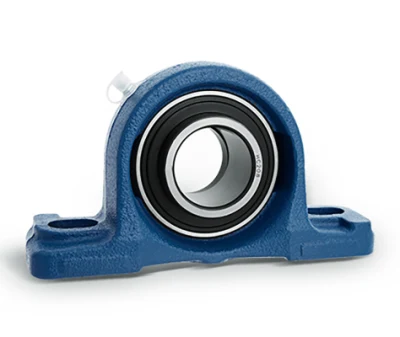

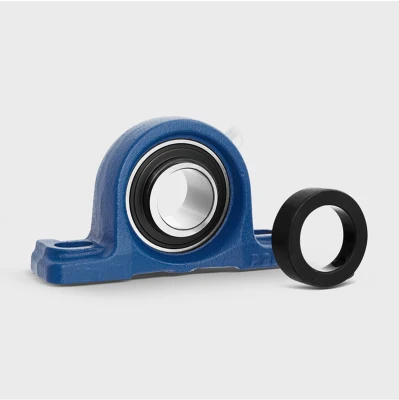

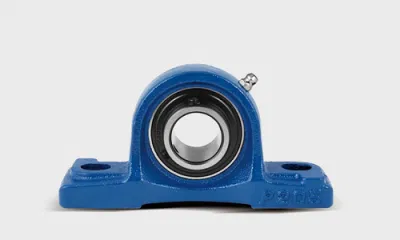

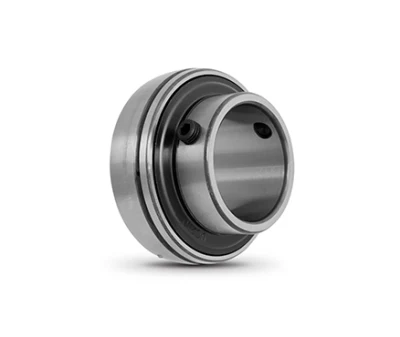

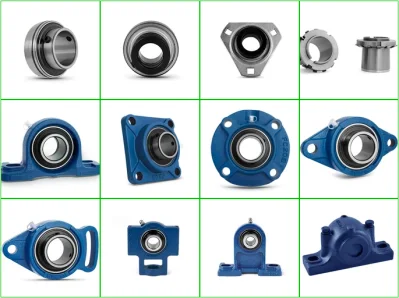

Standard Duty Set Screw Type Pillow Blocks
| Unit No. | Dimensions (mm/inch) | Bolt Size mm inch | Bearing No. | Housing No. | Weight (kg) | |||||||||||
| d | h | a | e | b | s1 | s2 | g | w | t | B | n | |||||
| UCP201 | 12 | 30.2 | 124 | 94 | 32 | 13 | 19 | 14 | 57 | 44.5 | 31 | 12.7 | M10 | UC201 | P203 | 0.66 |
| UCP201-8 | 1/2 | 1-3/16 | 5 | 3-3/4 | 1-1/2 | 1/2 | 3/4 | 9/16 | 2-7/16 | 1-3/4 | 1.2205 | 0.5 | 3/8 | UC201-8 | 0.66 | |
| UCP202 | 15 | 30.2 | 124 | 94 | 32 | 13 | 19 | 14 | 57 | 44.5 | 31 | 12.7 | M10 | UC202 | P203 | 0.66 |
| UCP202-9 | 9/16 | 1-3/16 | 5 | 3-3/4 | 1-1/2 | 1/2 | 3/4 | 9/16 | 2-7/16 | 1-3/4 | 1.2205 | 0.5 | 3/8 | UC202-9 | 0.66 | |
| UCP202-10 | 5/8 | UC202-10 | 0.66 | |||||||||||||
| UCP203 | 17 | 30.2 | 124 | 94 | 32 | 13 | 19 | 14 | 57 | 44.5 | 31 | 12.7 | M10 | UC203 | P203 | 0.66 |
| UCP203-11 | 11/16 | 1-3/16 | 5 | 3-3/4 | 1-1/2 | 1/2 | 3/4 | 9/16 | 2-7/16 | 1-3/4 | 1.2205 | 0.5 | 3/8 | UC203-11 | 0.66 | |
| UCP204 | 20 | 33.3 | 127 | 94 | 32 | 13 | 19 | 14 | 57 | 44.5 | 31 | 12.7 | M10 | UC204 | P204 | 0.70 |
| UCP204-12 | 3/4 | 1-5/16 | 5 | 3-3/4 | 1-1/2 | 1/2 | 3/4 | 9/16 | 2-7/16 | 1-3/4 | 1.2205 | 0.5 | 3/8 | UC204-12 | 0.70 | |
| UCP205 | 25 | 36.5 | 140 | 105 | 38 | 13 | 19 | 15 | 69.5 | 48 | 34.1 | 14.3 | M10 | UC205 | P205 | 0.76 |
| UCP205-13 | 13/16 | 1-7/16 | 5-1/2 | 4-1/8 | 1-1/2 | 1/2 | 3/4 | 19/32 | 2-25/32 | 1-57/64 | 1.3425 | 0.563 | 3/8 | UC205-13 | 0.85 | |
| UCP205-14 | 7/8 | UC205-14 | 0.83 | |||||||||||||
| UCP205-15 | 15/16 | UC205-15 | 0.82 | |||||||||||||
| UCP205-16 | 1 | UC205-16 | 0.81 | |||||||||||||
| UCP206 | 30 | 42.9 | 160 | 121 | 44 | 17 | 20 | 17 | 84 | 53 | 38.1 | 15.9 | M14 | UC206 | P206 | 1.24 |
| UCP206-17 | 1-1/16 | 1-11/16 | 6-19/64 | 4-3/4 | 1-47/64 | 43/64 | 25/32 | 21/32 | 3-5/16 | 2-5/64 | 1.5 | 0.626 | 1/2 | UC206-17 | 1.27 | |
| UCP206-18 | 1-1/8 | UC206-18 | 1.26 | |||||||||||||
| UCP206-19 | 1-3/16 | UC206-19 | 1.24 | |||||||||||||
| UCP206-20 | 1-1/4 | UC206-20 | 1.23 | |||||||||||||
| UCP207 | 35 | 47.6 | 167 | 127 | 48 | 17 | 20 | 18 | 93 | 59.5 | 42.9 | 17.5 | M14 | UC207 | P207 | 1.58 |
| UCP207-20 | 1-1/4 | 1-7/8 | 6-9/16 | 5 | 1-7/8 | 43/64 | 25/32 | 45/64 | 3-21/32 | 2-11/32 | 1.689 | 0.689 | 1/2 | UC207-20 | 1.64 | |
| UCP207-21 | 1-5/16 | UC207-21 | 1.61 | |||||||||||||
| UCP207-22 | 1-3/8 | UC207-22 | 1.58 | |||||||||||||
| UCP207-23 | 1-7/16 | UC207-23 | 1.55 | |||||||||||||
| UCP208 | 40 | 49.2 | 181 | 136 | 50 | 17 | 20 | 18 | 98 | 69 | 49.2 | 19 | M14 | UC208 | P208 | 1.89 |
| UCP208-24 | 1-1/2 | 1-15/16 | 7-1/4 | 5-13/32 | 2-7/8 | 43/64 | 25/32 | 45/64 | 3-15/16 | 2-23/32 | 1.937 | 0.748 | 1/2 | UC208-24 | 1.93 | |
| UCP208-25 | 1-9/16 | UC208-25 | 1.90 | |||||||||||||
| UCP209 | 45 | 54 | 190 | 146 | 54 | 17 | 20 | 20 | 106 | 69 | 49.2 | 19 | M14 | UC209 | P209 | 2.14 |
| UCP209-26 | 1-5/8 | 2-1/8 | 7-15/32 | 5-3/4 | 2-1/8 | 43/64 | 25/32 | 25/32 | 4-11/64 | 2-23/32 | 1.937 | 0.748 | 1/2 | UC209-26 | 2.24 | |
| UCP209-27 | 1-11/16 | UC209-27 | 2.20 | |||||||||||||
| UCP209-28 | 1-3/4 | UC209-28 | 2.14 | |||||||||||||
| UCP210 | 50 | 57.2 | 203 | 159 | 60 | 20 | 23 | 21 | 113 | 74.5 | 51.6 | 19 | M16 | UC210 | P210 | 2.66 |
| UCP210-29 | 1-13/16 | 2-1/4 | 8-1/8 | 6-1/4 | 2-3/8 | 25/32 | 29/32 | 53/64 | 4-29/64 | 2-15/16 | 2.0315 | 0.748 | 5/8 | UC210-29 | 2.78 | |
| UCP210-30 | 1-7/8 | UC210-30 | 2.73 | |||||||||||||
| UCP210-31 | 1-15/16 | UC210-31 | 2.68 | |||||||||||||
| UCP210-32 | 2 | UC210-32 | 2.64 | |||||||||||||
| UCP211 | 55 | 63.5 | 218 | 171 | 57 | 20 | 23 | 23 | 125 | 76 | 55.6 | 22.2 | M16 | UC211 | P211 | 3.31 |
| UCP211-32 | 2 | 2-1/2 | 8-5/8 | 6-47/64 | 2-3/8 | 25/32 | 29/32 | 29/32 | 4-59/64 | 3 | 2.189 | 0.874 | 5/8 | UC211-32 | 3.46 | |
| UCP211-33 | 2-1/16 | UC211-33 | 3.40 | |||||||||||||
| UCP211-34 | 2-1/8 | UC211-34 | 3.35 | |||||||||||||
| UCP211-35 | 2-3/16 | UC211-35 | 3.29 | |||||||||||||
| UCP212 | 60 | 69.8 | 239 | 184 | 70 | 20 | 23 | 25 | 138 | 89 | 65.1 | 25.4 | M16 | UC212 | P212 | 4.90 |
| UCP212-36 | 2-1/4 | 2-3/4 | 9-1/2 | 7-1/4 | 2-3/4 | 25/32 | 29/32 | 63/64 | 5-7/16 | 3-1/2 | 2.563 | 1 | 5/8 | UC212-36 | 5.03 | |
| UCP212-37 | 2-5/16 | UC212-37 | 4.95 | |||||||||||||
| UCP212-38 | 2-3/8 | UC212-38 | 4.88 | |||||||||||||
| UCP212-39 | 2-7/16 | UC212-39 | 4.81 | |||||||||||||
Features and Advantges
1. Rational self-alignment
2. Larger load carrying capacity, relubricable, the longer service life of the units
3. Efficient, sealing ability of the unit with covers is perfect
4. Solid housing, provide maximum rigidity against deformation for any condition
5. Easy and positive locking to the shaft
6. Special heat-treatment on bearing inner ring prevents causing cracking
7. Unique device to prevent bearing outer ring rotation
8. Complete interchangeability between bearing and housing
9. Easy installation
10. Easy positioning for mounting
Applications
Agriculture
Mining
Engineering
Chemical machinery
Textile
Plastic
Dyeing and fining
Other industries
Casting and the Factory
Core of Quality Management Process Control
SPC: Statistical process control
MSA: Measurement system analysis
FMEA: Analysis of potential failure modes and consequences
PPAP: Production part approval procedure
Packing and Shipping
| Packing | Industrial Plastic bag+designed color box+designed outer carton+pallet | |
| Pallet | European composite pallet | |
| Colesed composite wooden pallet | ||
| ISB three-folds pallet | ||
| Shipping | Port of shipment | Xiamen, China |
| Transportation | Sea/ Air/ Road | |
| Price Term | FOB(Usual) | |
| Payment Term | 30% prepayment upone order confirmed, balance T/T before shipment when goods ready. | |
