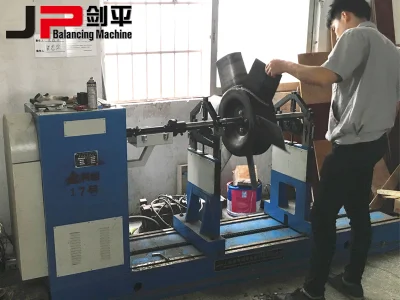

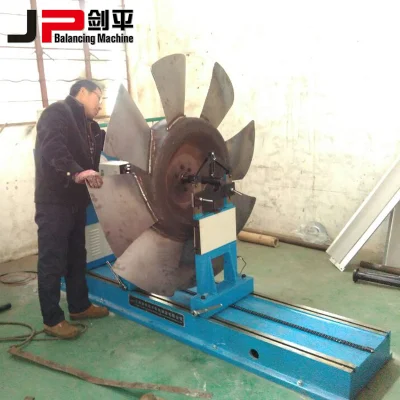

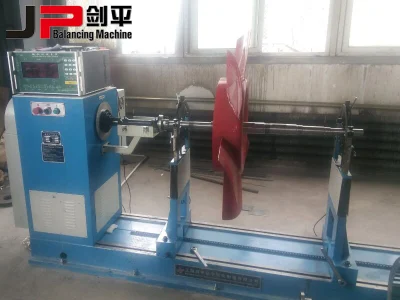

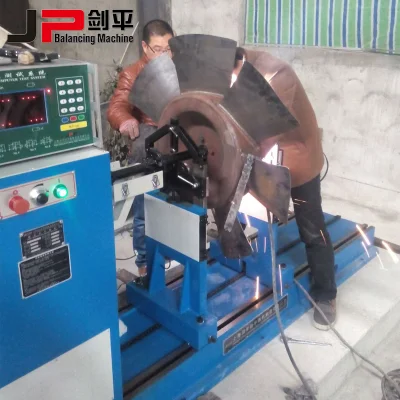

Animal Fan Blade Balancing Machine (PHW-300)
Production Description:
1) Special designed brackets can effectively transmit mechanical force
2) The durable and reliable sensor possesses high sensitivity
3) The permanent calibration brings high accuracy
4) Driven by universal coupling,transmit the power steadily
5) Applicable to rotors which can't be driven by belt or need large power
6) Advanced electrical measuring system and friendly man-machine interface
Special Features:
The measuring unit employs JP-380 Micro- computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor. The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support modes available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability.
Certificates:
Production Parameters:
| Technical data at a glance | PHW-300 |
| Mass Scope of Workpiece (kg) | 300 |
| Max Diameter of Workpiece (mm) | 1200 |
| Distance Between Two Support Bearings (mm) | Min:60 |
| Journal Diameter Scope of Workpiece (mm) | 20~180 |
| Max Distance between Driving Flange and Right Bearing Support (mm) | 1500 |
| Rotation Speed of the Main Axis (r/min) | 600/1095 Stepless speed regulation |
| Motor Power (kw) | 3 Frequency conversion |
| Torque of Universal Joint Shaft (N.m) | 60 |
| Min Achievable Residual Unbalance Amount (emar) | ≤ 1g. mm/kg |
