Basic Info.
Product Description

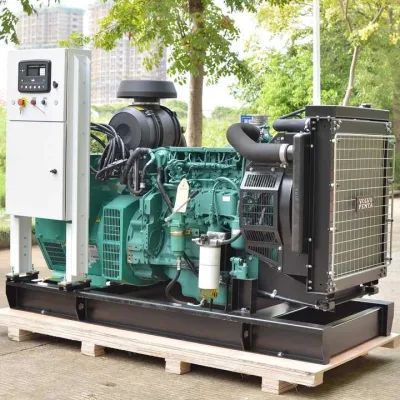

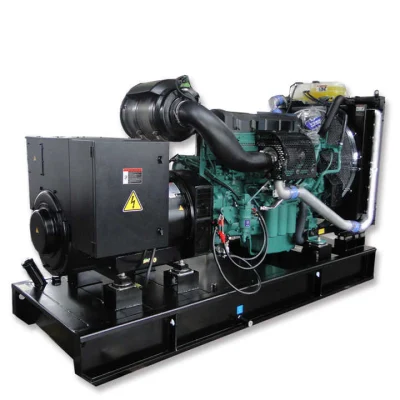

Volvo Penta Diesel Generating Sets From 68kw to 560kw
Generator features
*Powered by heavy duty industrial diesel engine VOLVO PENTA brand engines
*Radiator 40°C max, fans are driven by belt, with safety guard
*12//24V DC start motor and storage battery
*Brushless, self-excited, IP22/23, insulation H alternator
*Absorber to reduce vibration
*Dry type air filter, fuel filter, oil filter
*Main line circuit breaker
*Control system: Key start control panel as standard, digital auto start or ATS system is optional
*8 hours operation base fuel tank
*High efficient muffler to reduce noise
*Ripple flex exhaust pipe, exhaust siphon and flange etc.

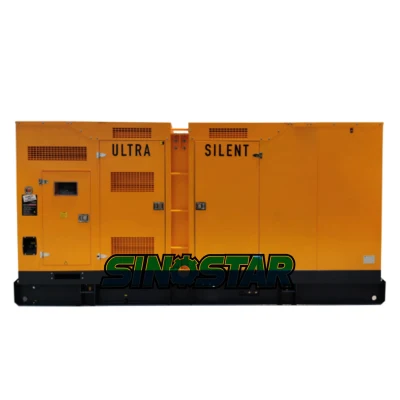

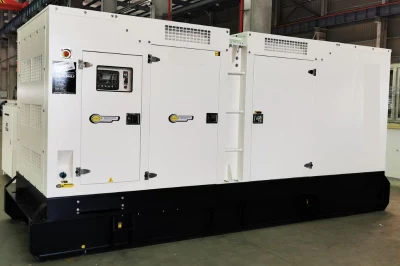

*Genset type: open type or soundproof/silent type, or trailer type
* Maintenance and operation manual, quality certificate, etc.
* Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110% and all protection function
(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Specifications:
50HZ GENERATOR SETS POWERED BY VOLVO ENGINE | ||||||||
1500 rpm, 3-phase 4-wire, 230/400V, PF=0.8 | ||||||||
Generator Set Model | Prime Power | Standby Power | Engine | Maximum current(A) | ||||
Prime | Standby | KW | KVA | KW | KVA | VOLVO | Power(kw) | |
SP-V85P | SP-V93S | 68 | 85 | 74 | 93 | TAD530GE | 75-83 | 134 |
SP-V100P | SP-V110S | 80 | 100 | 88 | 110 | TAD531GE | 88-97 | 159 |
SP-V125P | SP-V138S | 100 | 125 | 110 | 137.5 | TAD532GE | 113-125 | 198 |
SP-V150P | SP-V165S | 120 | 150 | 132 | 165 | TAD731GE | 134-148 | 238 |
SP-V180P | SP-V200S | 144 | 180 | 160 | 200 | TAD732GE | 159-176 | 289 |
SP-V200P | SP-V225S | 160 | 200 | 180 | 225 | TAD733GE | 176-194 | 325 |
SP-V250P | SP-V275S | 200 | 250 | 220 | 275 | TAD734GE | 219-241 | 397 |
SP-V313P | SP-V343S | 250 | 313 | 275 | 343 | TAD1341GE | 275-302 | 495 |
SP-V350P | SP-V375S | 280 | 350 | 300 | 375 | TAD1342GE | 303-333 | 541 |
SP-V375P | SP-V400S | 300 | 375 | 320 | 400 | TAD1343GE | 325-356 | 577 |
SP-V400P | SP-V450S | 320 | 400 | 360 | 450 | TAD1344GE | 354-389 | 650 |
SP-V400P | SP-V450S | 320 | 400 | 360 | 450 | TAD1345GE | 388-431 | 650 |
SP-V450P | SP-V500S | 360 | 450 | 400 | 500 | TAD1345GE | 388-431 | 722 |
SP-V500P | SP-V550S | 400 | 500 | 440 | 550 | TAD1641GE | 430-473 | 794 |
SP-V570P | SP-V625S | 456 | 570 | 500 | 625 | TAD1642GE | 503-554 | 902 |
SP-V625P | SP-V700S | 500 | 625 | 560 | 700 | TWD1644GE | 555-610 | 1010 |
SP-V670P | SP-V737S | 536 | 670 | 589 | 737 | TWD1645GE | 595-655 | 1064 |
SP-V700P | SP-V770S | 560 | 700 | 616 | 770 | TWD1645GE | 595-655 | 1111 |
Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to the earlier
one.Service and parts are available from distributors in your location.
