Basic Info.
Model NO.
ZZ3257M3847C
Power
Diesel
Load Capacity
31-40t
Emission Standard
Euro 2
Drive Wheel
6×4
Engine Capacity
6-8L
Seats
≤5
Horsepower
351-450hp
Tire Certification
ECE, GCC, ISO, DOT
Tire Design
Radial
Dumping Type
Front Lifting Style
Condition
Used
Market Segement
Urban Construction Muck Transportation
Segement
Heavy Truck
Cargo Box Dimension
5600*2300*1500
Gross Vehicle Weight
35t
Color
Red, White, Blue, Yellow
Transport Package
Standard Packaging
Specification
8600*2500*3200
Trademark
HOWO
Origin
China
HS Code
8704103000
Production Capacity
3000
Packaging & Delivery
Package Size
8600.00cm * 2500.00cm * 3400.00cm
Package Gross Weight
15000.000kg
Product Description

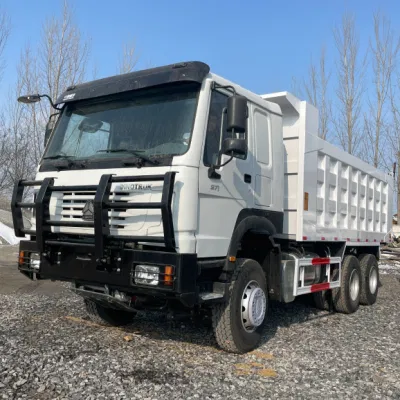

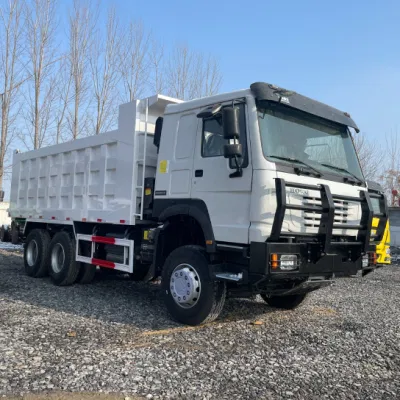

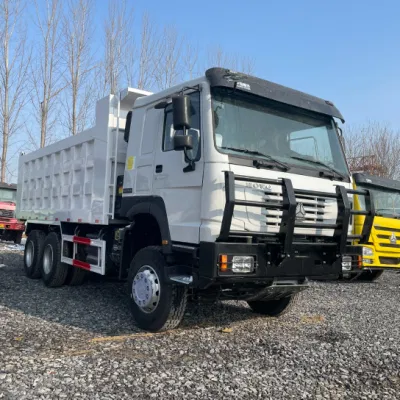

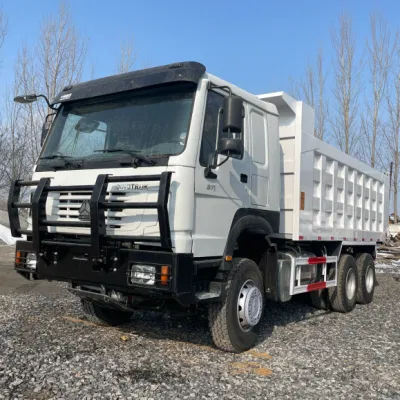

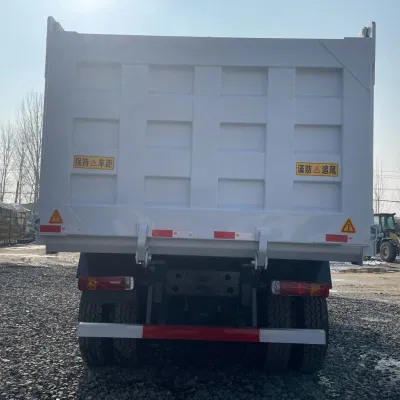

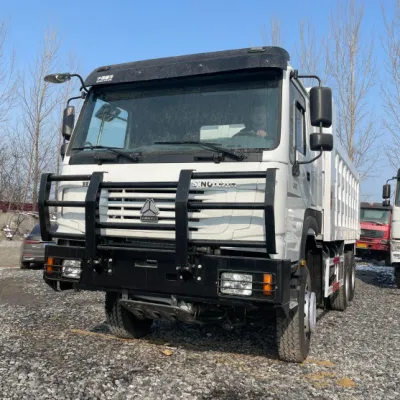

6X4 10 Wheels 371HP Used HOWO Dumper/Cargo Truck/Dump diesel truck for sale
Our main products include dump truck, tractor, oil tank truck, on-board crane, low bed semi-trailer, flat semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and its accessories. As we are factory direct sales, the quality is guaranteed
Our main products include dump truck, tractor, oil tank truck, on-board crane, low bed semi-trailer, flat semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and its accessories. As we are factory direct sales, the quality is guaranteed
SINOTRUK HOWO Dump Truck | |
Chassis Model | ZZ3257N3847B1 (Left/ Right Hand Driving Type Optional) |
Driving type | 4X2 6x4 8X4 6X6 8X8 |
Engine | Model: WD615.47, Euro 2, 371 HP |
6-cylinder in-line with water cooling, turbo-charging and intercooling | |
Displacement: 9.726 L | |
371HP / 380HP / 400HP / 430HP, Euro II / V | |
Clutch | Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance |
Gearbox | SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO) |
Front Axles | VGD95 9500kg with drum brake system |
Rear Axles | HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73 |
Suspension | Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |
Steering System | famous brand power steering, model ZF8118 , hydraulic steering with power assistance |
Braking System | Front drum rear drum brake, four-circuit protection valve |
Service brake: dual circuit compressed air brake | |
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels | |
Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms | |
Tires | 12.00R20 (12.00-20, 315/80R22.5 optional), with one spare tyre |
Fuel Tank Volume (L) | 300 |
Dead Weight | 12020/8630 |
Gross Vehicle Weight (kg) | 25000 |
Rated Loading Weight (kg) | 12850; 12640 optional |
Overall Dimension | 8650x2550x3500 |
(LxWxH) (mm) | |
Wheelbase (mm) | 3800+1350 |
Min.Ground Clearance (mm) | 314 |
Approach/Depart Angle(°) | 19/ (27/65) |
Gradeability (%) | ≥50 |
Min. Turning Diameter (m) | 15 |
Cargo Body Size (LxWxH) (mm) | 5600x2300x1500 option |
Cargo Body Volume (m3) | 19 option |
√√ Competitive Price --
We're trading company with factory. We manufacture products by ourselves and we source from other collaborative factories too which guarantees a competitive price and product variety. From numerous comparison and feedback from clients, our price is more competitive than other competitors.
√√ Quick Response--
working 24/7 to respond to client inquiries and questions all the time. Most problems can be solved within 12 hours.
√√ Fast delivery --
Normally it will take more than 25-45 days for other companies to produce the ordered trailers, while we have a variety of resources, locally and nationwide, to receive trailers in a timely manner. In 70% circumstance, we can have a 15-20 days delivery of regular trailers for our clients.
B. Which payment terms can we accept?
Normally we can work on T/T term or L/C term.
√√ On T/T term, 30% down payment is required in advance, 70% balance shall be settled before delivery, or against the copy of original B/L for a regular client.
√√ On L/C term, normally need 30% down payment by T/T, 70% by L/C at sight. a 100% irrevocable L/C without "soft clauses" can be accepted sometimes. Please seek advice from the individual sales manager whom you work with.
C. How long will our price be valid?
√√ Price with long valid time --
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable throughout the year. We only adjust our price based on two situations:
The rate of USD: RMB varies significantly according to the international currency exchange rates.
Manufacturers/factories adjusted the trailer price, because of the increasing labor cost and raw material cost.
D. What logistics ways we can work for shipment?
We can ship all trailers by various transportation tools.
√√ For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania, etc, either by container or RoRo/Bulk Shipment.
√√ For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc, we can ship trucks by road or railway.
√√ For light spare parts in urgent demand, we can ship it by international courier services, such as DHL, TNT
Welcome to visit our factory
If you have any further questions or concerns, please do not hesitate to contact us.
Doris han
