Basic Info.
Product Description
 | TECHNICAL INFORMATION | ||||||
| Battery Model No. | 51814 | ||||||
| Nominal Voltage | 12V | ||||||
| Capacity(Amp@20hr) | 19Ah | ||||||
| Layout | ( - + ) | ||||||
| Dimmension | Length[mm] | 186 | |||||
| Width[mm] | 82 | ||||||
| Total Height[mm] | 171 | ||||||
| Battery Weight | Acid | 1.2 | |||||
| Ttotal | 4.5 | ||||||
| Acid Bottle | Available as buyer choice | ||||||
| Charge Status | Dry-Charged Battery | ||||||
| Self discharge rate under unfilled state | ≤2% Per/Month | ||||||
| Colour | Luxury white | ||||||

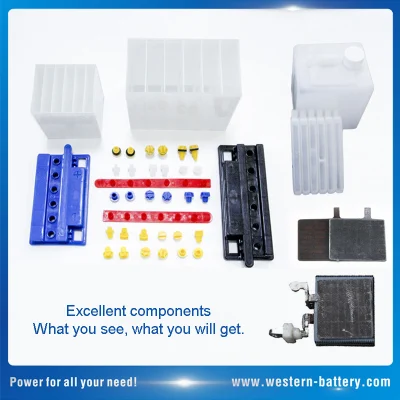

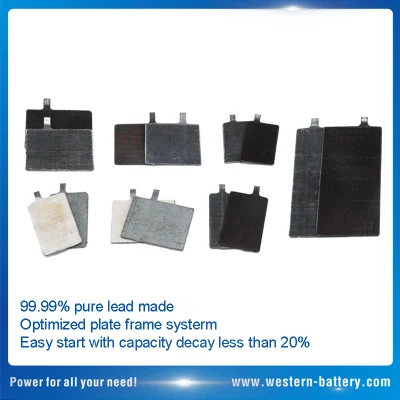

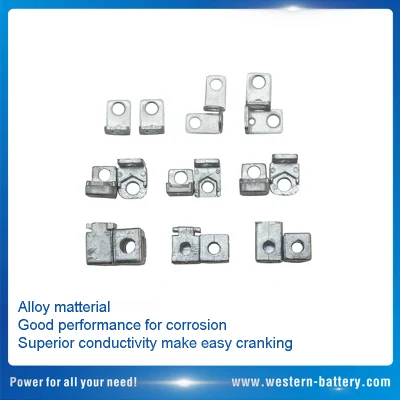

| Component | Positive plate | Negative plate | Container | Vent Caps | Terminal | Electrolyte | Separator |
| Raw Material | Lead dioxide | Lead | ABS | ABS | Lead | Sulfuric acid | PE / Fiber glass |
| Introduction of Western Electrical Dry Charge Motorcycle Batteries: |
A line of rugged, reliable and cost-effective batteries that engineered to protect against leakage, withstand vibration and deliver high cranking power, Western Electrical Conventional Powersports/Motorcycle batteries feature Lead/Calcium alloy to minimize self-discharge and maximize starting power, while the advanced separator and optimized construction to shorten the electrical current path and help minimize resistance, resulting in boosted cranking power. In additional, the durable transparent polypropylene container also makes checking the electrolyte level easy.
This battery range is shipped and delivered as dry charged state and only needs to be filled with acid before use.
This Conventional Powersports battery range is idear for Motorcycle, Scooter, ATV, UTV, Snowmobile and Quad Bike application which of standard power consumption, also suit for Watercraft and Jet-Ski application although not very recommended.
| Features & Benefits: | |||||||
• Upright installation only.
• Has to be checked periodically and refilled with water if necessary.
• Internal gas emission through venting hole.
• Handle with care to prevent acid spillage.
• Regular life duration.
• Does not need to be recharged while stocked.
• Low self discharge rate, long storage shelf life.
| Batteries Series Specifications: | |||||||
1.Dry Conventional Battery Series:
2. High Performance Battery Series:
| Technical Drawing & Model Number Designation |

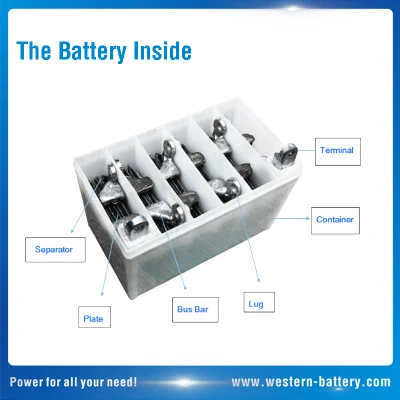

| Battery Construction: | |||||||
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Typical Applications: | |||||||
