- Overview
- Product Description
Basic Info.
Model NO.
Volvo series diesel generator
Installation Method
Portable
Stroke
Eight Stroke
Cooling Method
Air Cooled
Output Type
AC Three Phase
Speed
Speed
Conditions of Use
Trailer Type
Usage
Common Units
Landuse Type of Unit
Low Noise Automation Type
Excitation Mode
AC Rotating Exciter
Rated Voltage
220V, 230V, 240V, 440V, 460
Per Speed
1500/1800rpm
Frequency
50/60Hz
Power Plant Engine
Original Volvo
Optional Type
Open or Silent Type
Alternator
Stamford/Marathon
Rated Current
264AMP-864AMP
Transport Package
Wooden Case or Naked
Specification
CE
Trademark
Super-above
Origin
Jiangsu, China
HS Code
8502120000
Production Capacity
10000PC/Year
Packaging & Delivery
Package Size
320.00cm * 230.00cm * 180.00cm
Package Gross Weight
1800.000kg
Product Description

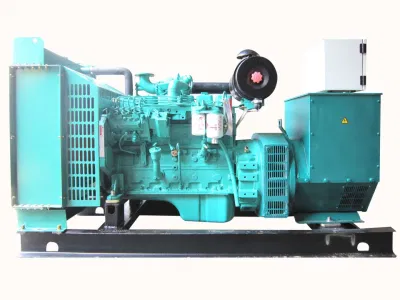

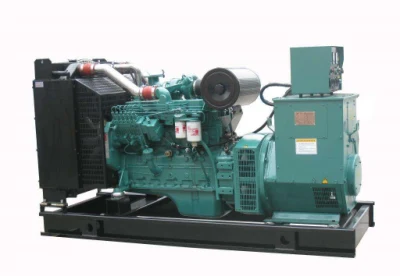

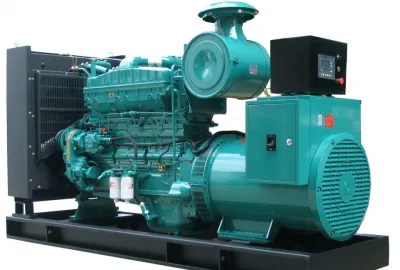

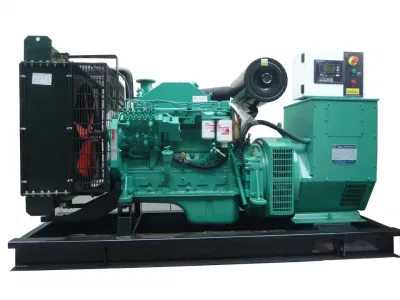

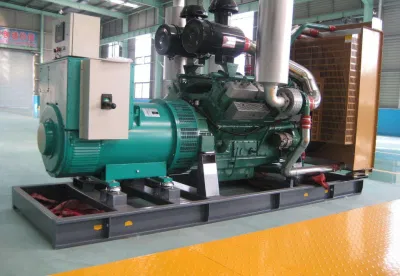

Products Details of Volvo diesel generator
Super-above Volvo series environment consciousness Gen Sets of its exhaust emission comply with EURO two or EURO three & EPA standards. It is powered by VOLVO PENTA electronic fuel injection diesel engine that was made by the global-famous Swedish VOLVO PENTA. VOLVO brand is established in 1927. For a long time, its strong brands are associated with its three core values: quality, safety and care for the environment. The VOLVO group subordinate's company VOLVO PENTA is absorbed in the production of industrial diesel engine, industrial vehicles and marine diesel engine products. It keeps ahead in the fields of six-cylinders engine and electronic fuel injection technique etc.
Open type/Silenet/Soundproof type/container type/trailer type Volvo diesel generator
SPECIFICATION OF 320KW/400KVA VOLVO GENERATOR
| Diesel generator Details | |
| Model | SA-400GF |
| Power | 400KVA/320KW |
| Frequency | 50HZ |
| Voltage | 400/230v(voltage can be customized) |
| Optional Type | Open/soundproof/trailer |
| Size of Open type | 3100*1150*1600mm |
| Weight of Open type | 2950kg |
| With Diesel Engine | |
| Brand&model | Volvo TAD1343GE |
| Cylinders | 6 in line arrangement |
| Bore*Stroke | 131*158mm |
| Displacement | 12.78L |
| Fuel Consumption at 100% Load | 198g/kw.h |
| Speed Governor | Electronic |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
Main features of Volvo diesel generator
<1>. Multi-cylinder-line or vee engines, direct injection
<2>. Turbocharged, water cooled, cooling fan
<3>. 24V DC starter, mechanical or electronic governor
<4>. Low fuel consumption and low discharge
<5>. High efficiency
<6>. Maintaining easily and low maintenance expense
OTHER OPTIONS
| Main Engine Brand Introduction | ||||||
| Generator Brand | Generator Power(KW) | Generator Power(Kva) | Consumption Diesel(l/hr) | Voltage(V) | Frequency(HZ) | Speed(RPM) |
| Cumms Series | 16-1560 | 20-1950 | 5.7-339.9 | 230/400 | 50/60 | 1500/1800 |
| Pks Series | 8-2000 | 10-2250 | 3-529 | 230/400 | 50/60 | 1500/1800 |
| Volvo Series | 68-544 | 85-680 | 16-133 | 230/400 | 50/60 | 1500/1800 |
| MTU serirs | 520-2600 | 650-3250 | 126.5-623.8 | 230/400 | 50/60 | 1500/1800 |
| Mitsubishi Series | 480-2000 | 600-2500 | 125-525 | 230/400 | 50/60 | 1500/1800 |
| Yangdong series | 7.2-48 | 9-65 | <240 | 230/400 | 50/60 | 1500/1800 |
| SDEC series | 48-800 | 60-1000 | 195-225 | 230/400 | 50/60 | 1500/1800 |
| Other series ( Container type / Marine series etc. ) | ||||||
1)Cumins series diesel generator
2) Pks series diesl generotor
3) MTU series diesel generator
Applications of our diesel generator
Diesel generator sets are widely used in telecommunications, finance, hospitals, schools, commercial
and other sectors, industrial and mining enterprises.
Packing&Delivery
1) Wrap the generator set by stretch film, and put some drying agent.
2) Adopt steel plate or wood rib to make it stronger, can afford rough handling.
3) Design for forklift truck working in 4 directions. Fastened by 8cm length galvanized nail.
4) Load the case into container by forklift truck.
