China Supplier Drg Double Pneumatic Actuator

Looking for a reliable China Supplier Drg Double Pneumatic Actuator? Look no further! We are a factory specializing in high-quality actuators. Contact us today!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • FAQ
Overview

Basic Info.

Model NO.
DRG-SR Series
Acting Type
Double Acting
Material
Stainless Steel
Customized
Customized
Structure
Rack and Pinion
Torque
4-5bar
Bore
200-1000mm
Material2
Ductile Cast Iron
Material3
Aluminium Alloy
Transport Package
Carton or Wooden Box
Specification
180-350
Trademark
Fluitech
Origin
Wuxi, Jiangsu, China
HS Code
8412390000
Production Capacity
5000/Month

Product Description

Product Description

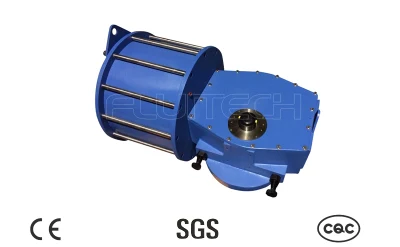

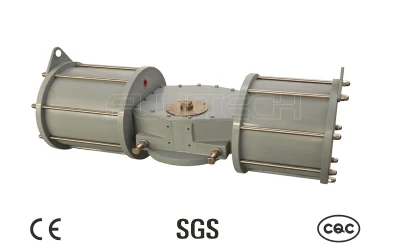

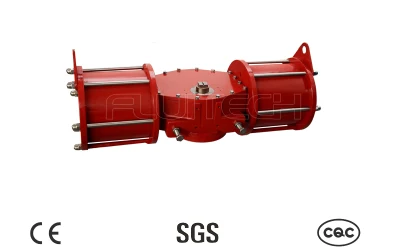

China Supplier Drg Double Pneumatic Actuator

The performance characteristics of

1.DRG spring return actuator can provide 120000 n. m torque output, JDP double acting actuator can provide 240000 n. m torque out put .The maximum working pressure is 10 bar.

2. The size of the valve bottom connecting flange in accordance with ISO5211standard
working temp.:
standard temp. -20ºC-80ºC(NBR)
high temp. -15ºC-150ºC(Fluororubber)
low temp. -40ºC-80ºC(Silicon Rubber)

Feature:

Comply with IP65 protection class.

Structural characteristics of

1.The DRG series of heavy duty scotch yoke actuators is designed suitable for general purpose of valves and damper automation and offer a wide range of torques enable to operate ball , butterfly, plug valves, dampers or any device that requires a quarter-turn operation for on-off or modulating service.
2.DRG01 series is the symmetrical design yoke that produces maximum torque at both end of the 90cycle providing travel stops.Middle output torque is minimal. In line with the series of ball valve generates torque characteristics.
3.DRG02 series is the canted design yoke that max produces torque. More in line with butterfly valve torque characteristics.
4.Using technology of plating hard chorming, which can ensure longer working life.
5.Pathway high-frequency quenching grinding treatment ,sliding block using self-lubricating technology, which can ensure permanent usability.

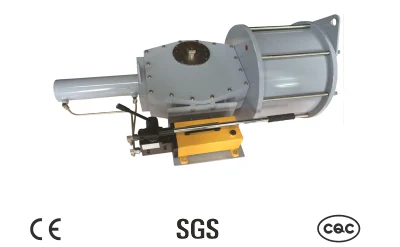

6.DRG series actuators come along with a complete line of controls and monitoring accessories including Manual Handwheel (jacksrew).hydraulic overrides, limit switches,solenoid valves,positioners and other controls accessories.
7.ts modular design and construction provides maximized convenience during installation,maintenance and storage.


Product Parameters




China Supplier Drg Double Pneumatic ActuatorChina Supplier Drg Double Pneumatic ActuatorChina Supplier Drg Double Pneumatic ActuatorChina Supplier Drg Double Pneumatic ActuatorChina Supplier Drg Double Pneumatic ActuatorChina Supplier Drg Double Pneumatic Actuator


FAQ




1: Are you a factory or a trading company?
   We are a facory
2: Which country do you export to?
   We can export to any country according to buyer's need
3: Do you accept the customized order?
   YES!
4: What advantages do you have?
   Our factory starts from 2012.
   We can promise the good quality of actuator and give you the reasonable   factory price.
5: Will you responsible for the installation of valve and actuator?
   YES! If you give us a decent order, it will be free.
