Product Description
1. The brief introduction of hook lift garbage truck
1) The Hook Lift Garbage Truck, also known as the Roll-off Garbage Truck,detachable container garbage truck, or Hook arm Truck, is a highly efficient waste management vehicle. This specialized truck is designed to collect and transport garbage from residential and commercial areas
2) Equipped with a hydraulic hook lift system, the Hook Lift Garbage Truck offers a convenient and time-saving solution for waste disposal. The system allows for easy loading and unloading of waste containers, minimizing manual labor and increasing productivity. With its robust construction and powerful engine, the Hook Lift Garbage Truck is capable of handling heavy loads of waste. It is designed to withstand the rigors of daily use and ensure reliable performance in various weather conditions. The Hook Lift Garbage Truck plays a crucial role in maintaining cleanliness and hygiene in our communities
1) The main cylinder built-in two-way unloading valve, the end of the stroke to effectively reduce the system pressure to protect the entire hydraulic system and pull arm durable
2) Lift system configuration balance device, no load or heavy load
3) The hydraulic system and the branch oil circuit are set up two-way overload protection,according to the actual working conditions of the movement to adjust the rated pressure set to effectively avoid the system overload or improper use caused by the vehicle(including the vehicle), the vehicle is not moving
4) Hydraulic system are set up oil explosion-proof locking device to prevent the explosion due to tubing safety hazards, to ensure the safety of personnel and vehicles
5) Pull the arm are equipped with hydraulic and mechanical box locking device, correct Use to ensure transport safety
1) The action associated with interlock protection, to prevent misuse caused by hydraulic or mechanical failure to eliminate security risks, to extend vehicle life
4. Advantagous of hook lift/roll-off/detachable container garbage truck
Its efficient waste collection capabilities contribute to the overall well-being of the environment and the health of the population.In conclusion,the Hook Lift Garbage Truck, also referred to as the Rear Loader Garbage Truck, Rearload Garbage Collection Truck, or Rear Loader Dumper Truck, is an essential tool in waste management. Its advanced features and reliable performance make it an indispensable asset for waste disposal operations
5. Hook lift garbage truck Chassis option:DFAC,FAW,SINOTRUCK HOWO,BEIBEN,SHACMAN,JAC,JMC,ISU ZU,etc
6. Hook lift loading capacity:1.5Ton, 5Ton, 8Ton, 10Ton, 12Ton,16Ton, 20Ton, 25Ton for you choice
Our company is PALFINGER appointed garbage truck refiting manufacture in China
Sample 1: Hook lift garbage truck work with garbage mobile container

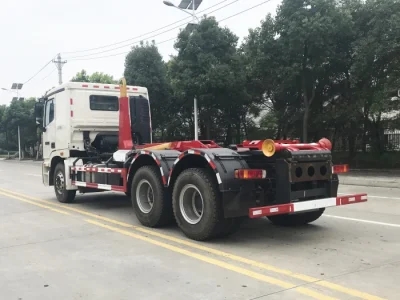

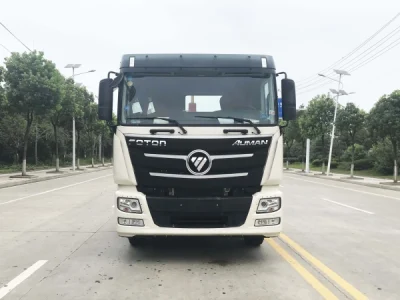

FOTON AUMAN heavy duty 20Ton Hook lift garbage truck roll off swap loader refuse truck specifications
Dongfeng heavy duty garbage truck mounted 20Ton hook-lift
Truck chassis specification
| Cabin | One and half cab,elelctrical windows,AM/FM radio player,USB interface,with original A/C | |
| Vehicle Dimensions | Overall dimensions (L x W x H) mm | 8450×2550×3150 |
| Wheel base (mm) | 4400+1350 | |
| Wheel track (front/rear) (mm) | 2010/1830 | |
| Truck weight (KGS) | Tare weight | 11350 |
| Recommend payload | 15000-20000 | |
| Front axles load capacity | 7000 | |
| Rear axles load capacity | 18000 | |
| Max. driving speed(km/h) | 102 | |
| Engine | Manufacture | Weichai Engine |
| Model | WP10.320E22 | |
| Type | Straight 6-cylinder in line,Turbocharge with inter-cooling,diesel engine | |
| Displacement(L) Engine power(hp) | Engine displacement:9.726L Power:320HP | |
| Emission standard | Europe 3 | |
| Gearbox | Manual operation, 9 forward gear, 1 reverse gear | |
| Steering | Hydraulic steering with power assistance | |
| Tire | 11.00R20, 10+1 pcs (including one spare tire) | |
The special parameter of Hook lift roll-off garbage truck
| Garbage container effective volume(CBM) | About 20 cubic meter |
| The Hooking Capacity(T) | 20 |
| The Hook arm material | Q40,Q50 high strength steel |
| System pressure(Mpa) | 26 |
| Control voltage(V) | 24 |
| Hook arm self weigh(kg) | 2300 |
| Extension of hook arm(mm) | 800-900,or other specification based on different model |
| Hydraulic Oil pump displacement(Min/L) | 60,made in China or import pump |
| Hydraulic oil tank capacity(L) | 110L or more |
| Loading/unloading cycle time(S) | 45S or less |
| The hook center height(mm) | 1570 or other specification based on different model |
| Distance from hook center to rear roller(mm) | 4630 or other specification based on different model |
| Width of guild rail(mm) | 1060 or other specification based on different model |
| Hydraulic oil pump | Hefei pump in China,or import pump |

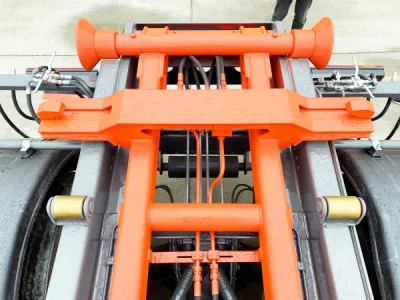

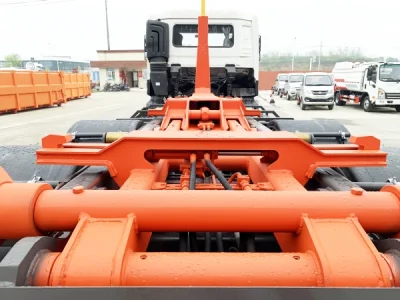

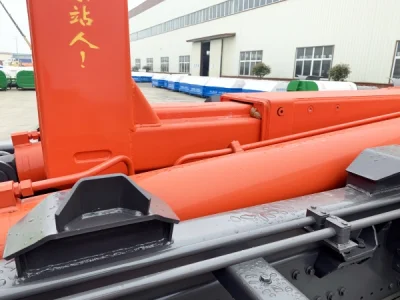

The hook lift container garbage truck special function parts
Finished truck corner Tank manufacture room
Laser cutting machine Electrostatic spraying process
Sand-blasting room Spray treatment and ovan products
Spray treatment product corner Sand-blasting semi-rproducts
Spray treatment products corner Sand blasting semi- products profile
Shipment by bulk vessel,RO-RO vessel or Flat rack container
Small Goods by 40FT container
Our company have many successful cases for shipment all over the world,we will provide professional Logestic transportation services to Client forever
Advantages
5) After-sales: Spare parts and technical support.Video call guildance is available
